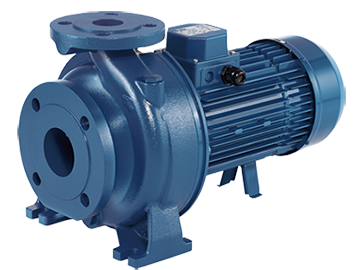

3D Monobloc Pumps, 2 Pole

A very economical range of high quality pumps
made in Europe utilising cast iron casings and
extended shaft motors.
The use of IE3 motors (3 phase versions) and the
smooth surfaces of the stamped stainless steel
impellers result in a product of consistent high
quality and efficiency.
The back pull-out construction permits the
disassembly and overhaul of the impeller,
mechanical seal and motor without removal of
the suction or discharge piping, or pump casing.
With dimensions to EN733 (ex. DIN24255)
upgrading existing installations can be easy.

Specifications:



Motor output: 1.1 to 15 kW (3ph)
  1.1 to 2.2 kW (1ph)
Outlet size: 32 to 50 mm

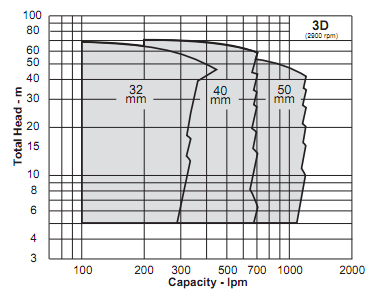

Flow rates: 100 to 1200 lpm
Head: 7 to 70 m
Liquid temp: -5 oC to +90 oC
Max. working pressure: 10 Bar

Options:

High temperature versions with Viton elastomers, suitable for liquid temperatures up to 90 oC.

Hard face mechanical seal in SiC/SiC/Viton


Click to Enlarge
