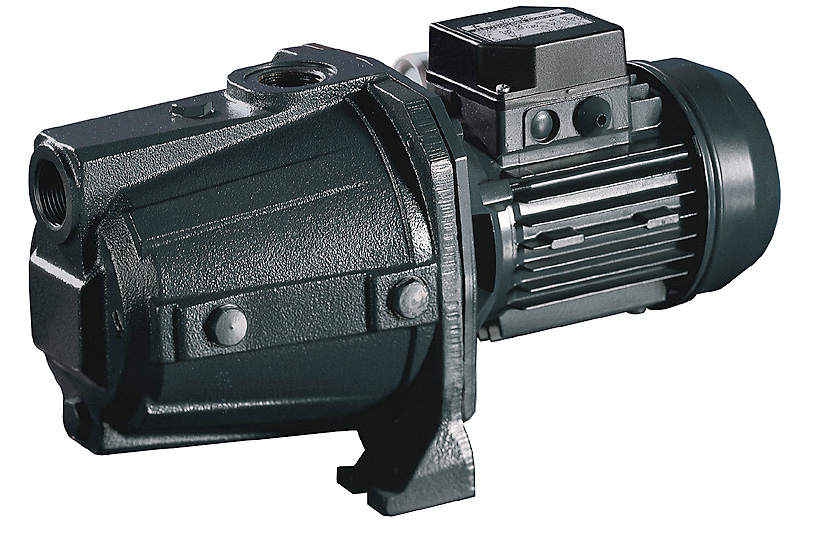

AGA-C Self Priming Jet Pumps

For pumping clean water, even with entrained air, for a variety of applications:

Domestic pressure boosting
Vehicle washing
Emptying tanks & ponds
Small scale irrigation
Pumping clean water in general

Specifications:

Motor output: 0.75 to 1.5kW (1ph)

Outlet size: 25mm

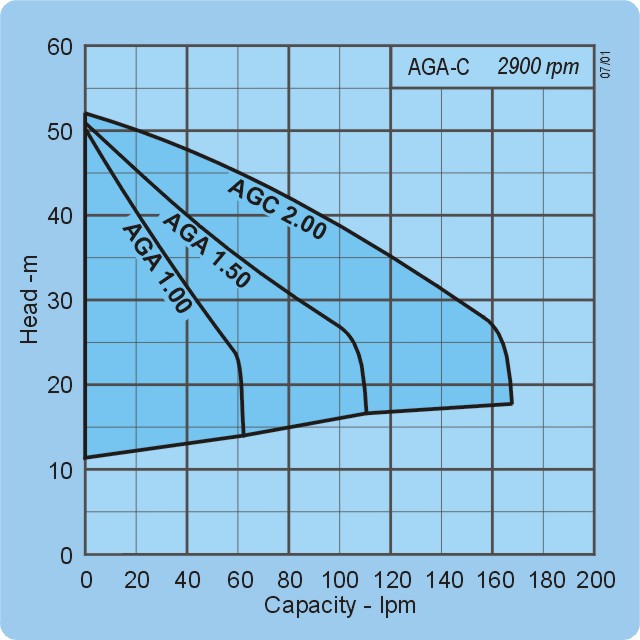

Flow rates: 10 to 160 lpm

Head: 24 to 52 m

Max. liquid temp: 45^oC

Max. work pressure: 10 Bar (6 Bar for AGA 1.00)

Literature

AGA-C

Data Sheet
