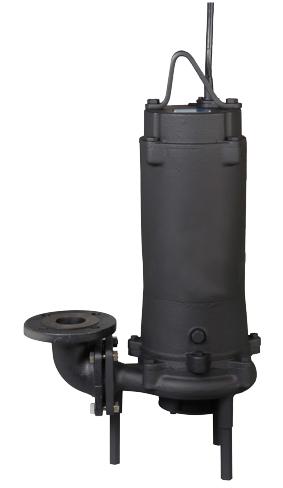

DG Submersible Grinder Pumps

A submersible grinder pump of high quality and reliability,
of robust cast iron construction featuring:-

  • High torque motor
  • Double row lower bearing

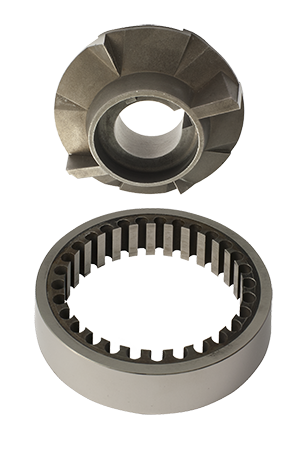

  • Powerful grinding mechanism
  • Non clogging vortex impeller

Suitable for:-

  • Domestic sewage
  • Small scale pressure sewage systems
  • Grey wasterwater containing soft solids

Specifications

  • Submersible grinder pump with grinding mechanism & vortex impeller
  • Maximum liquid temperature: 40 °C

Materials

  • Pump casing: Cast Iron
  • Grinder mechanism: 440 Stainless Steel
  • Impeller: Cast Iron
  • Shaft: 403 Stainless Steel
  • Motor frame: Cast Iron
  • Fasteners: 304 Stainless Steel
  • Mechanical seal: Double mechanical seal in oil chamber;

                                  Silicon Carbide lower faces,
                                  Carbon/Ceramic upper faces.

Motor Data

  • Air filled, dry submersible, 2 pole, 50 Hz
  • Insulation class F
  • IP68 protection
  • 3 Phase - 400 Volt
  • In built overload protection

Range

  • 40 to 50 mm Ø discharge
  • 1.5 to 3.7 kW - 3 Phase (Manual only)
