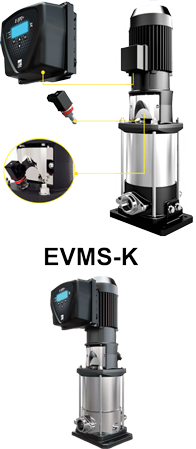

EVMS-K

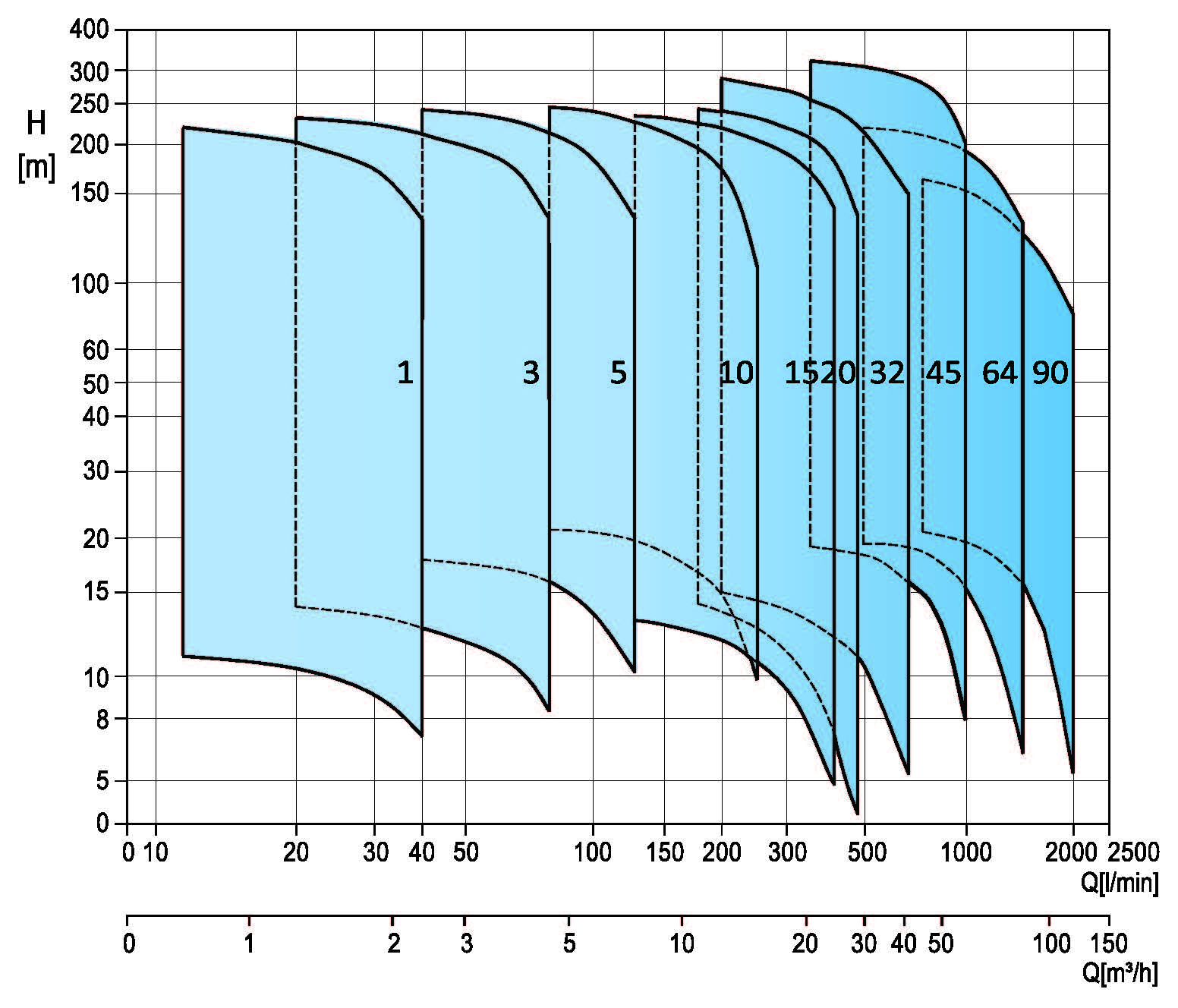

Operating range
Model	EVMSG, EVMS, EVMSL
Nominal flow rate	1 / 3 / 5 / 10 / 15 / 20
Flow rate	up to 28.8 m³/h
Total head	up to 256 m
Max. working pressure	16 / 25 bar
Liquid temperature	-30 to 140℃
Outlet size	32 to 50 mm

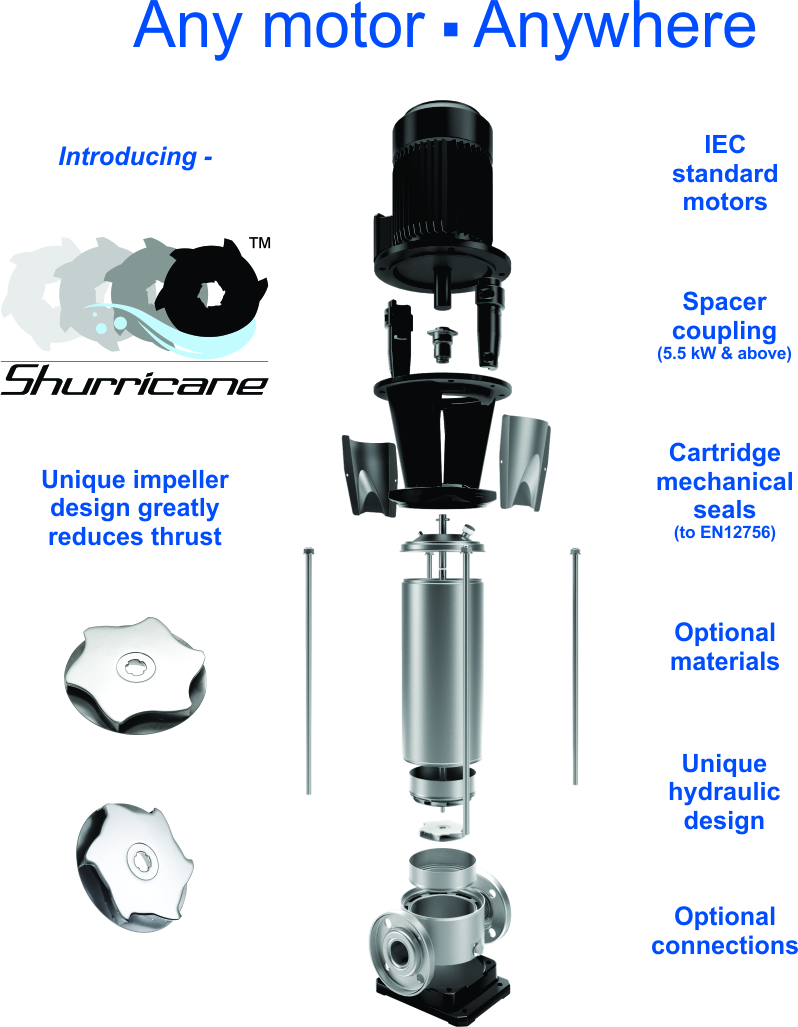

Pump material
Bottom Casing	Cast iron for EVMSG Stanless steel 304 for EVMS Stanless steel 316L for EVMSL
Impeller	Stanless steel 304 for EVMSG/EVMS Stanless steel 316L for EVMSL
Liner ring	Stanless steel 304 + PSS for EVMSG/EVMS Stanless steel 316L + PSS for EVMSL
Shaft	Stanless steel 304 for EVMSG/EVMS Stanless steel 316L or 329A for EVMSL
Mechanical seal	SiC/Carbon , SiC/SiC with graphite

Motor
Brand	ETM ( EBARA IE3 Three Phase Motor)
Max frequency	50 Hz
Power rating	2.2 to 11 kW
Effciency	IE3
Voltage	230/400 ± 10% V (up to 4.0 kW) 400/690 ± 10% V (5.5 kW and above)
Poles	2
Protection degree	IP55
Insulation class	Class F (class B for temperature rise)

Inverter
Model	MT2200, TT4000, TT11000
Max power rating	2.2 kW for MT2200 4.0 kW for TT4000 11 kW for TT11000
Power supply voltage	230 V for MT2000 (1 ph) 400 V for TT4000 (3 ph) 400 V for TT11000 (3 ph)
Output voltage	230 V for MT2000 (3 ph) 400 V for TT4000 (3 ph) 400 V for TT11000 (3 ph)
Max current in/out	20 A / 11 A for MT2000 12 A / 11 A for TT4000 31 A / 30 A for TT11000
Protection rating	IP55
