Home Surface Pumps Self-priming pumps AGA-AGC
Self-priming pumps

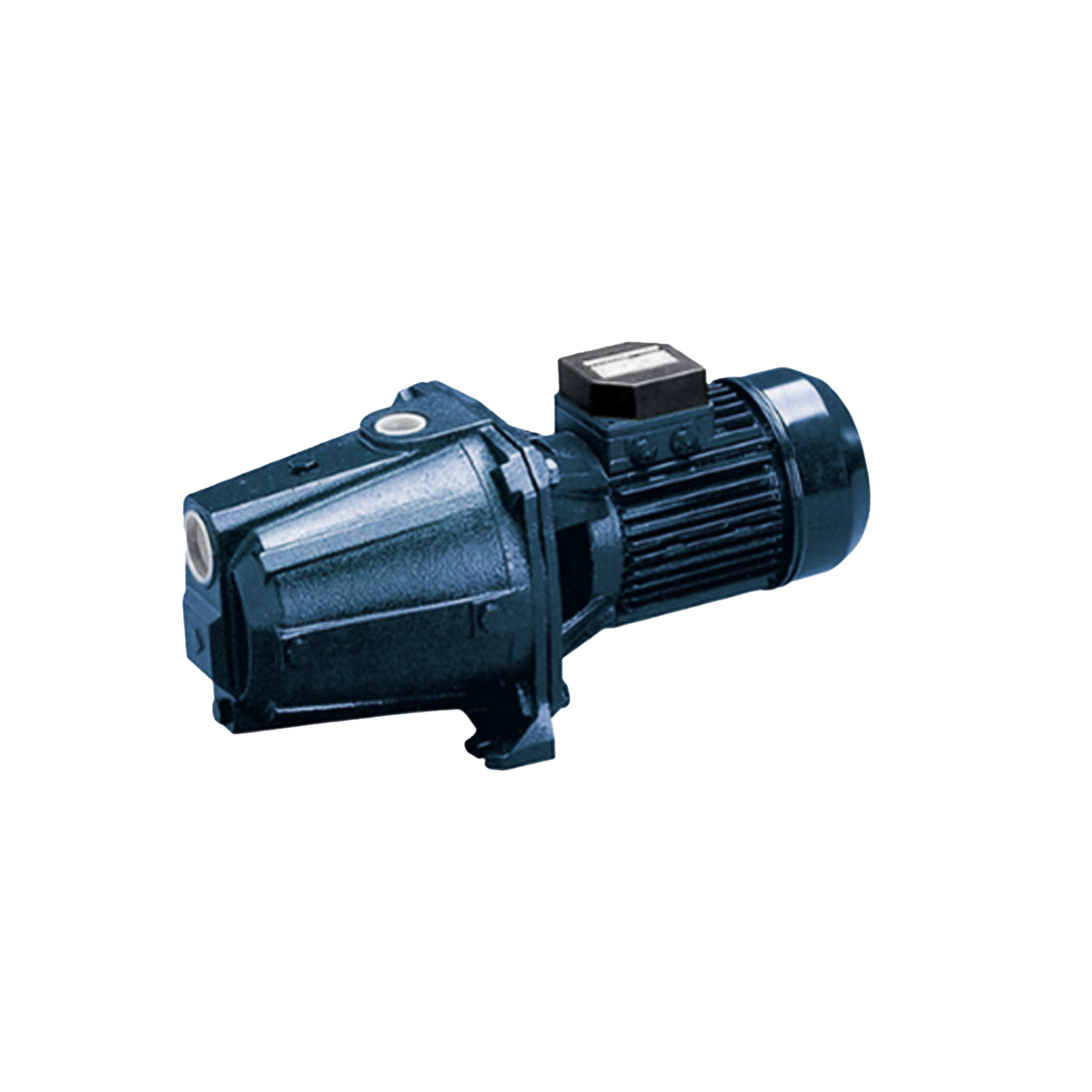

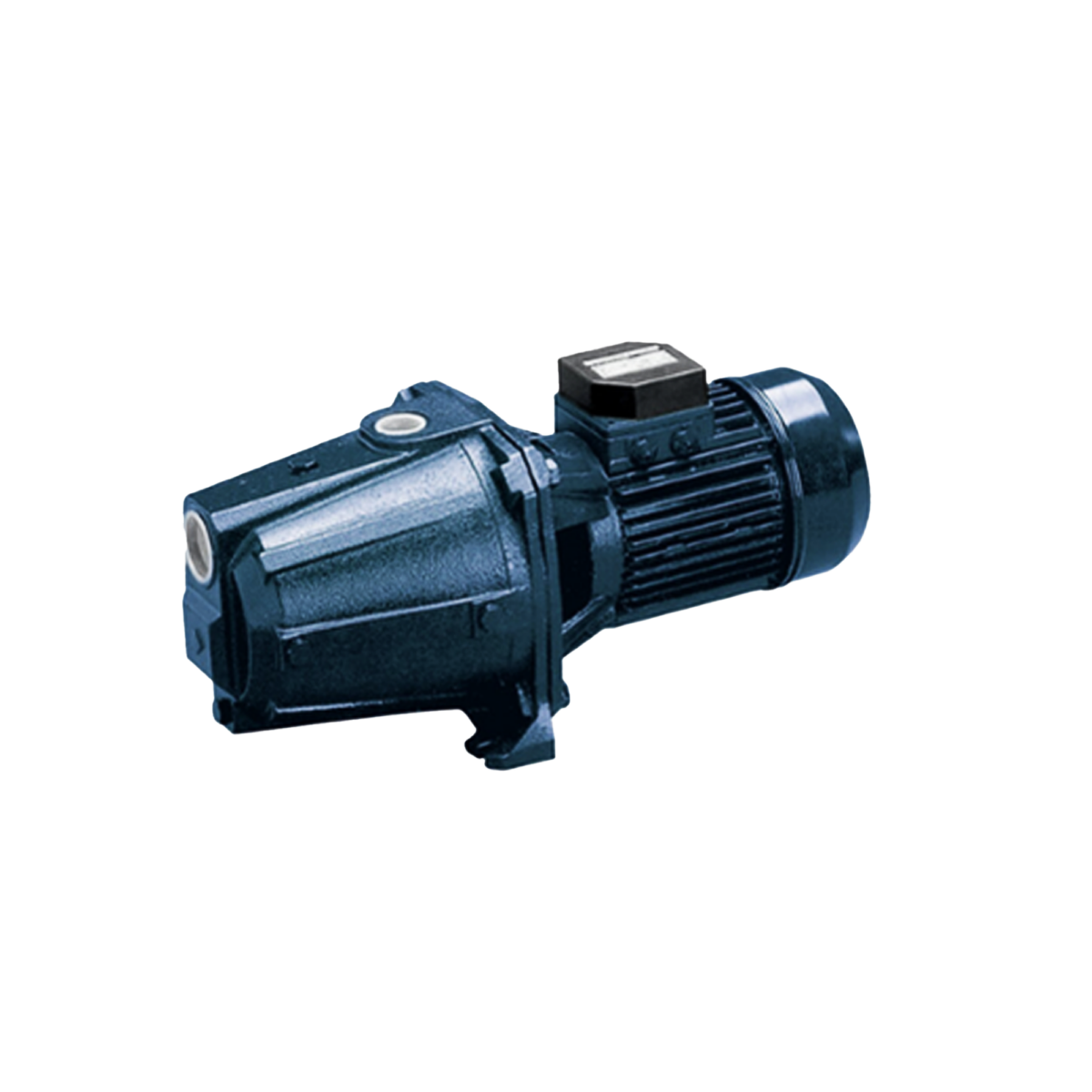

AGA-AGC

Water jet pumps equipped with Venturi unit (ejector and diffuser) in Noryl and Cast iron casing.

Product Feature Icon

Compact design

Product Feature Icon

Easy installation

Product Feature Icon

Made in Italy

  • Key Features
  • Selection Chart
  • Specifications
  • Applications
  • Downloads

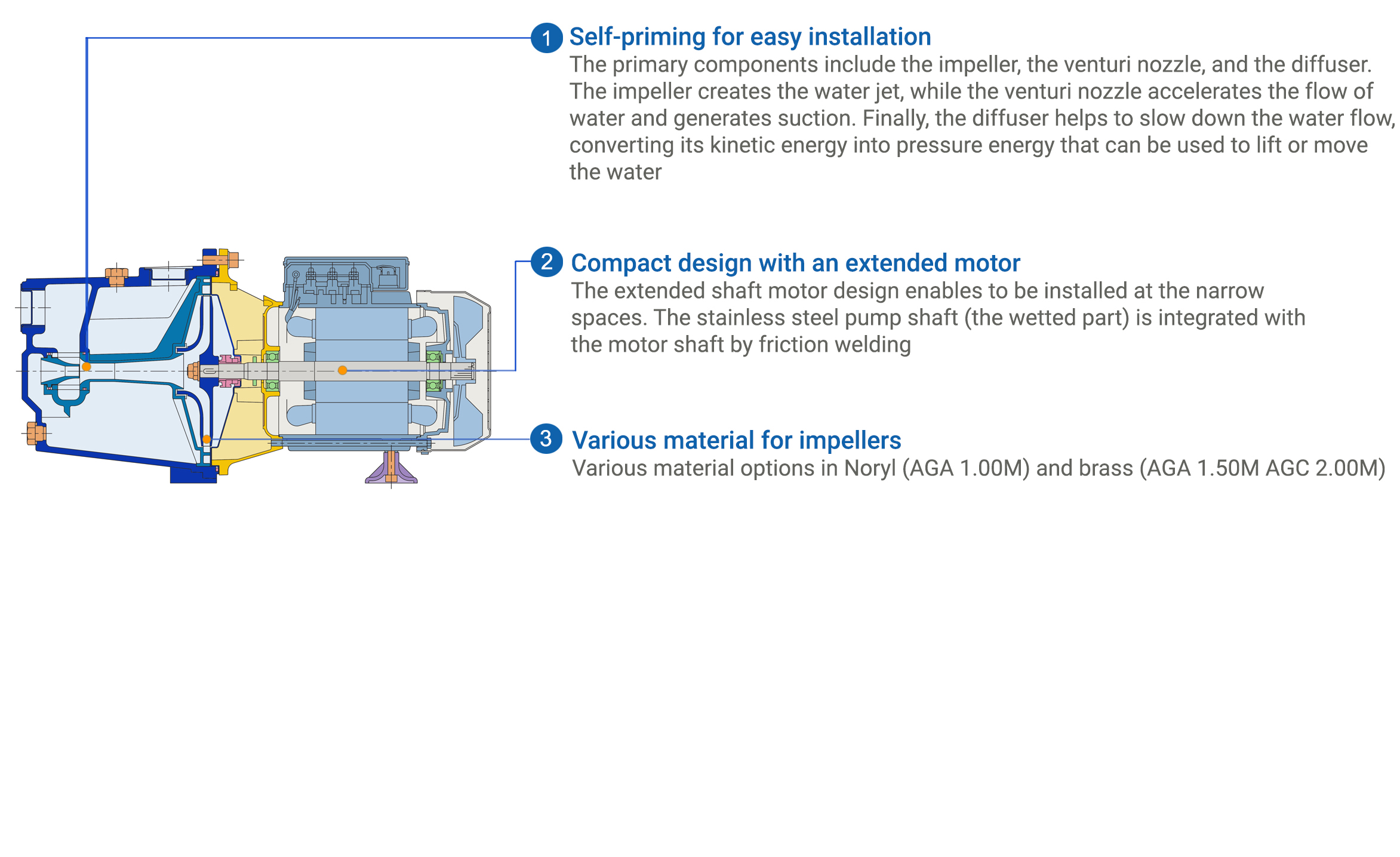

Key Features

Main Product Features



Selection Chart

50 Hz

















Specifications

Operating range
Flow rateup to 6 m3/h for AGA
up to 9.6 m3/h for AGC
Total Headup to 48 m for AGA
up to 51 m for AGC
Max. working pressure 6 bar for AGA
10for AGC
Max. liquid temperature45℃
Outlet size G1 for AGA 1.00M
G1½ for AGA 1.50M, AGC 2.00M

Pump material
CasingCast iron
Impeller PPE+PS glass fibre reinforced for AGA 1.00M
Brass for AGA 1.50M, AGC 2.00M
ShaftAISI 303 (wet extension)
Mechanical Seal Carbon graphite/Ceramic/NBR for AGA 1.00M
Ceramic/Carbon Graphite/NBR for AGA 1.50M AGC 2.00M
EjectorPPE+PS glass fibre reinforced
DiffuserPPE+PS glass fibre reinforced

Motor
Frequency50 Hz
PhaseSingle phase
Poles2
Power rating0.44 kW to 1.5 kW
EfficiencyIE2
Voltage230 ±10%
Protection degreeIP44
Insulation classClass F



Applications

  • Domestic pressurization
  • Garden irrigation
  • Handling of clean water

  • Small scale irrigation
  • Domestic pressurization





Downloads
  • Data sheet AGA_AGC (AGA-AGC)
  • General instruction manual AGA_AGC (AGA-AGC)
  • Technical data AGA_AGC (AGA-AGC)
  • Instruction manual JEX_JESX_AG (AGA-AGC, JESX/JEX)
