Home Surface Pumps Multistage pumps EVMS
Multistage pumps

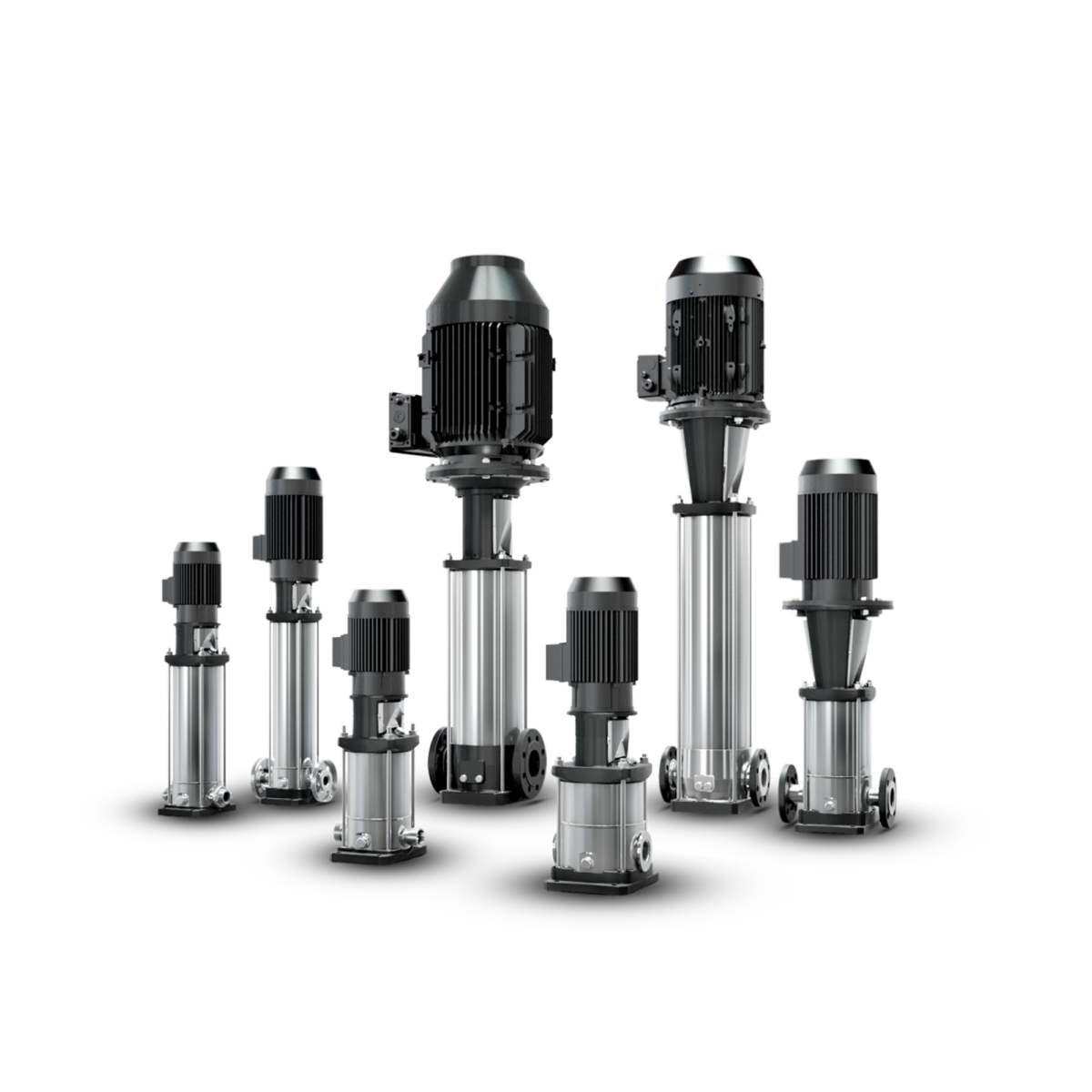

EVMS

Vertical multistage in-line centrifugal pumps, model EVMS series is available in AISI 304 (EVMS), in AISI 316L (EVMSL) and in cast iron (EVMSG)

Product Feature Icon

Any motor, anywhere

Product Feature Icon

Energy saving MEI>0.7

Product Feature Icon

Various pipe connections

Product Feature Icon

Easy maintenance

Product Feature Icon

Made in Italy

  • Key Features
  • Selection Chart
  • Specifications
  • Applications
  • Downloads

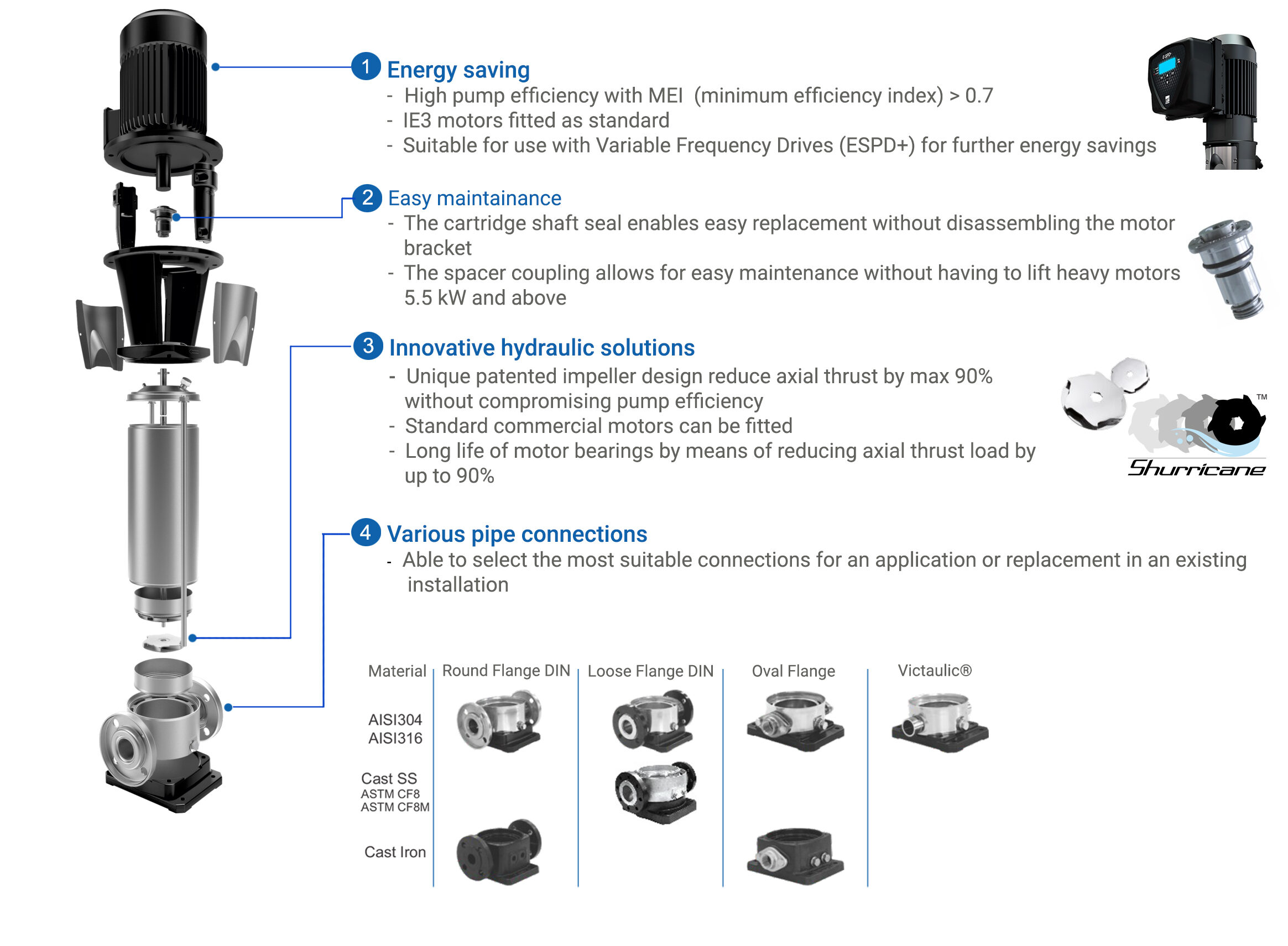

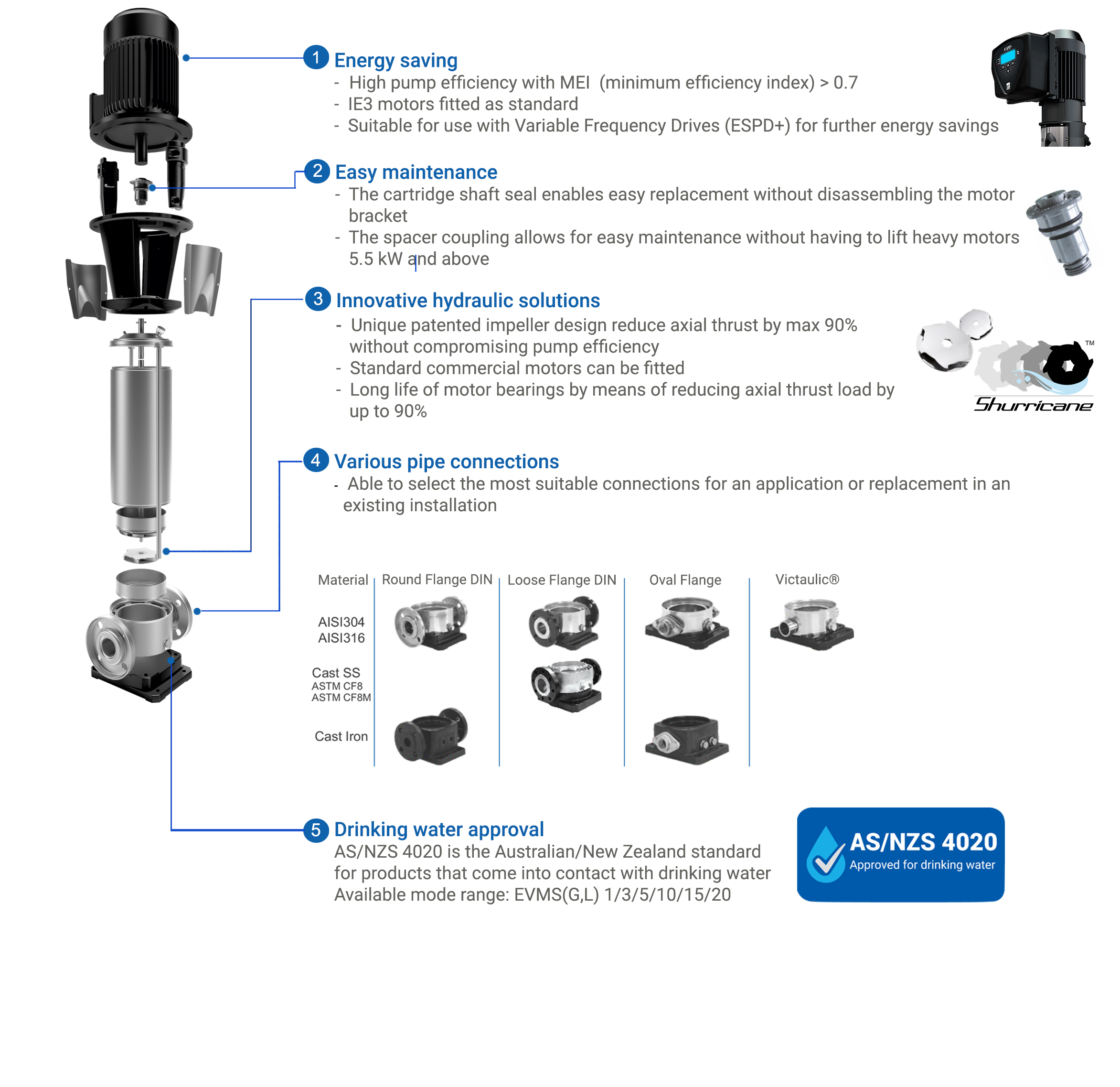

Key Features

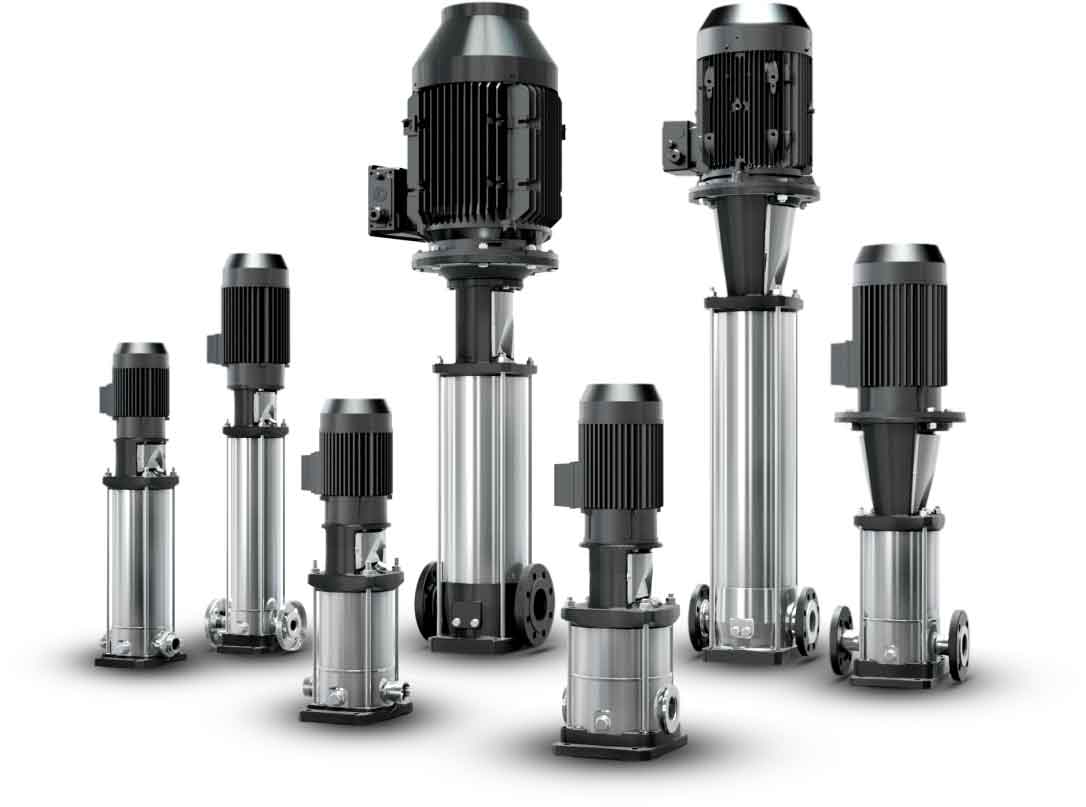

Main Product Features

For more info please watch

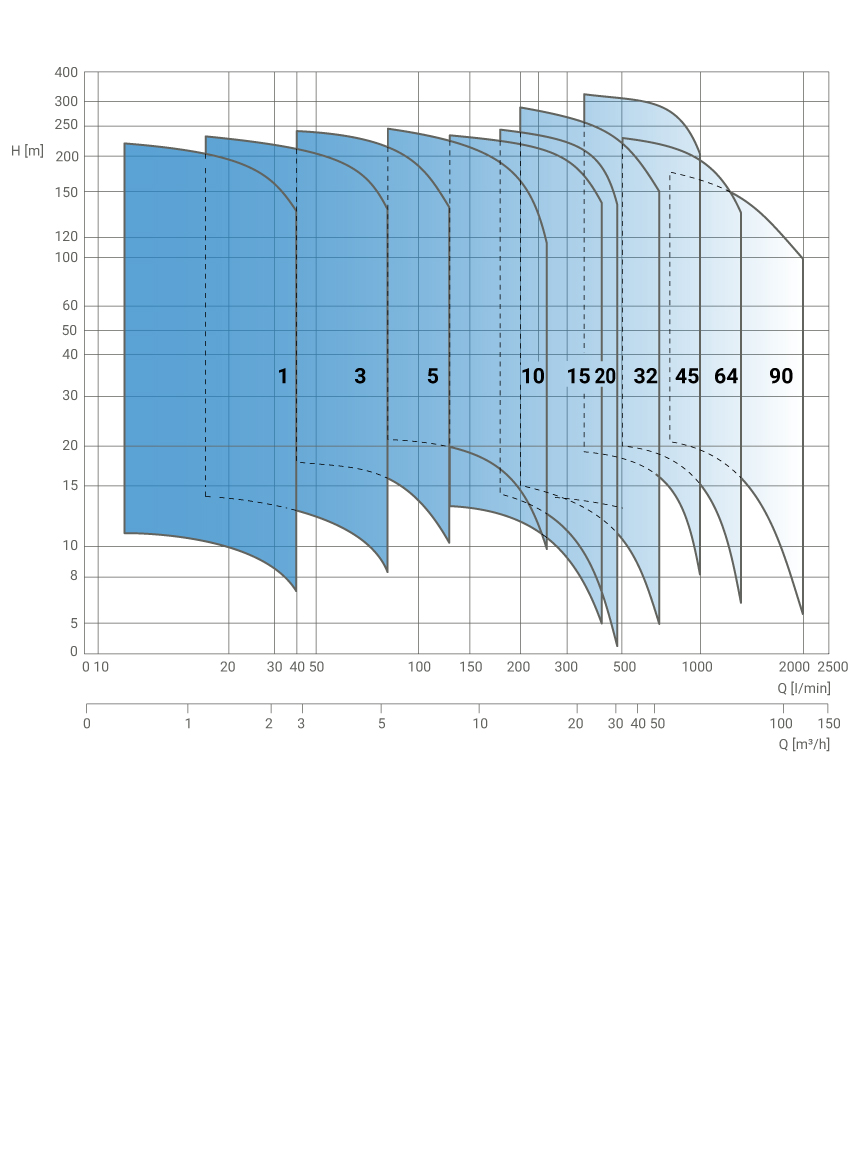

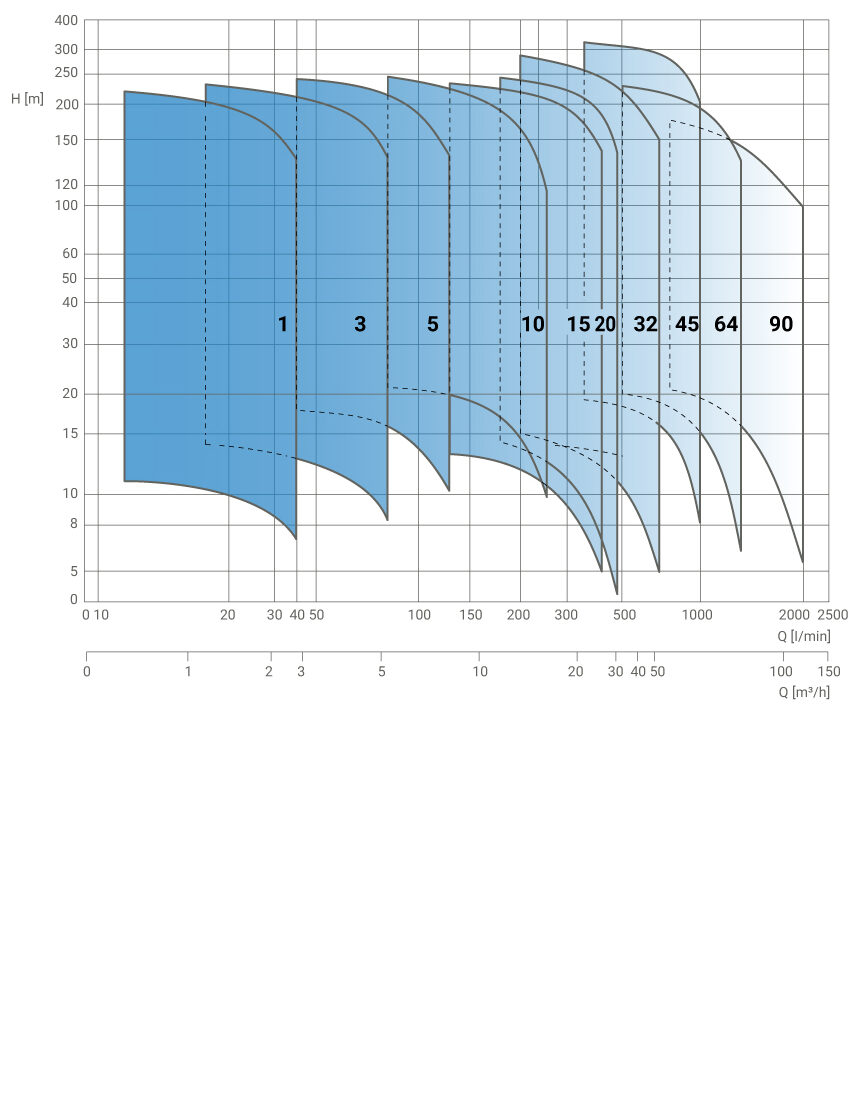

Selection Chart

EVMS

Specifications



Operating range
ModelEVMSG, EVMS, EVMSL
Nominal flow rate1 / 3 / 5 / 10 / 15 / 20 / 32 / 45 / 64 / 90
Flow rateup to 120 m³/h
Total headup to 342 m
Max. working pressure16 / 25 / 30 / 35 bar
Max. liquid temperature-30 to 140℃
Outlet size32 to 150 mm

Pump material
Bottom CasingCast iron for EVMSG
Stanless steel 304 for EVMS
Stanless steel 316L for EVMSL
ImpellerStanless steel 304 for EVMSG/EVMS
Stanless steel 316L for EVMSL
Liner ringStanless steel 304 + PSS for EVMSG/EVMS
Stanless steel 316L + PSS for EVMSL
ShaftStanless steel 304 for EVMSG/EVMS
Stanless steel 316L or 329A for EVMSL
Mechanical sealSiC/Carbon , SiC/SiC with graphite

Motor
BrandWEG W21 as standard (3 ph)
WEG W22 as standard (1 ph) / as option (3 ph)
Frequency50 Hz
Power rating0.37 to 45 kW (3 ph)
0.37 to 3 kW for (1 ph)
Effciency IE3
Voltage3 ph x 230/400 V (up to 3.0 kW)
3 ph x 400/690 V (4.0 kW and above)
1 ph x 230/480 V
Poles2
Protection degreeIP55
Insulation classClass F (class B for temperature rise)





Applications

  • Reverse osmosis
  • Micro/Ultra-filtration
  • Softening, ionizing, and demineralization systems
  • Boiler feed and condensate systems
  • Industrial parts washing
  • Food or bottle washing systems
  • Handling of refrigerant for cooling
  • Thermal control systems

  • Pressure Boosting for buildings
  • Sprinkler systems
  • Fire fighting systems (Jockey pump)
  • District heating
  • Air conditioning systems

  • Transfer from water treatment plants (mains)

  • Field irrigation
  • Sprinkler irrigation
  • Drip irrigation



Downloads
  • Product Brochure EVMS 1-90 (EVMS)
  • Data Book EVMS 1-90 (EVMS)
  • Instructional manual EVMS (EVMS)

Related Case Study

Water and Wastewater

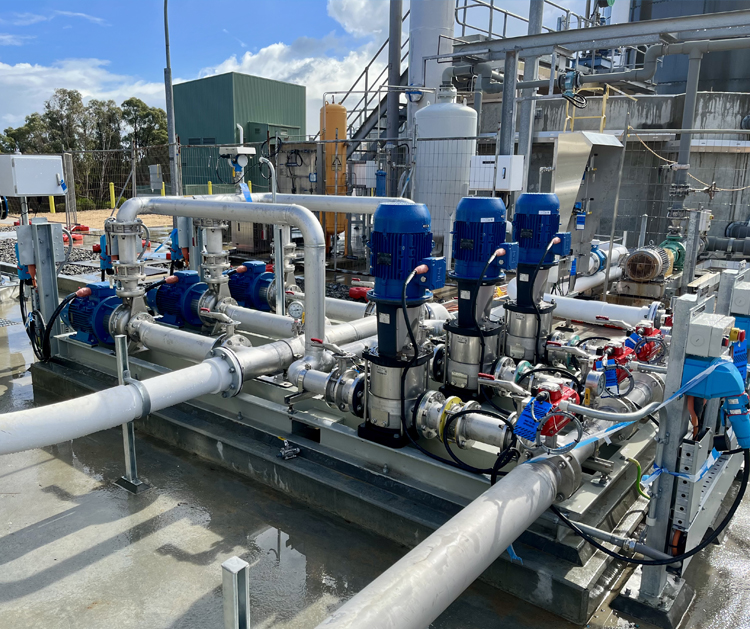

Water resource recovery facility (WRRF) in WA

Water transfer for the dissolved air flotation system • EVMSL 90 1-0/7.5 x 3 sets View product page • 3LS
View Case Study

Related products

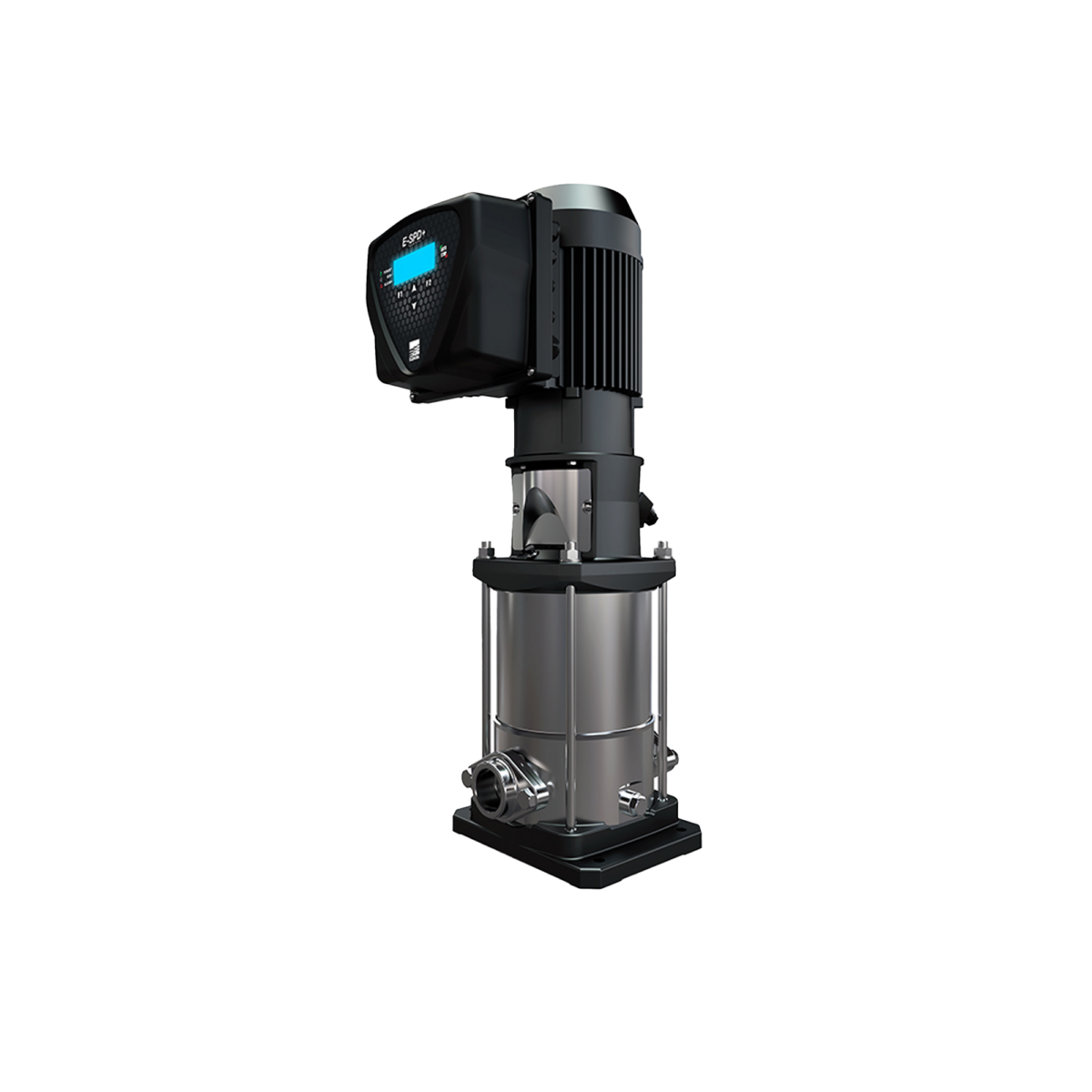

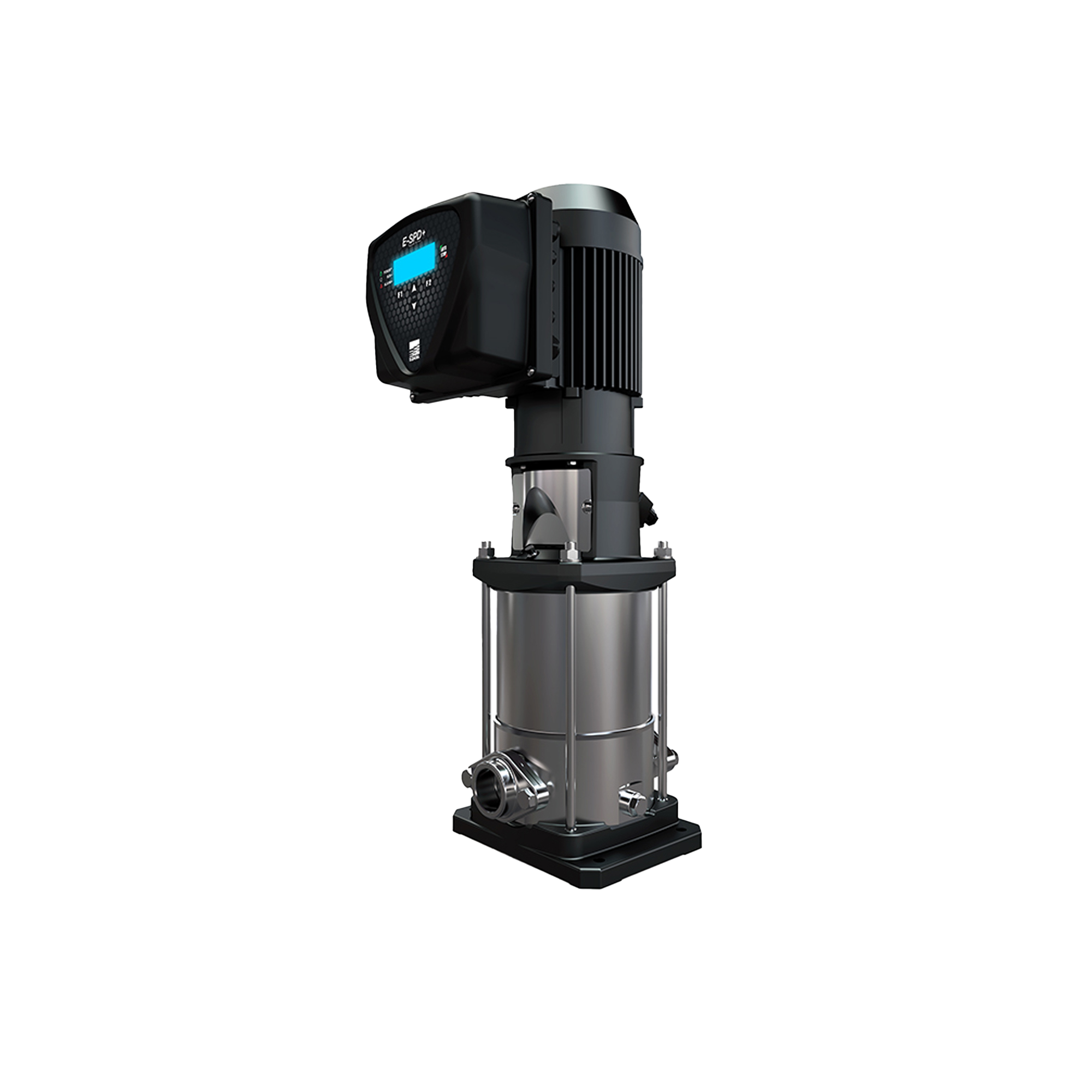

EVMS-K

Multistage pumps, Pumps with inverters
$999,999.00 – $9,999,999.00
Q max: 28.8 m³/h
H max: 256 m

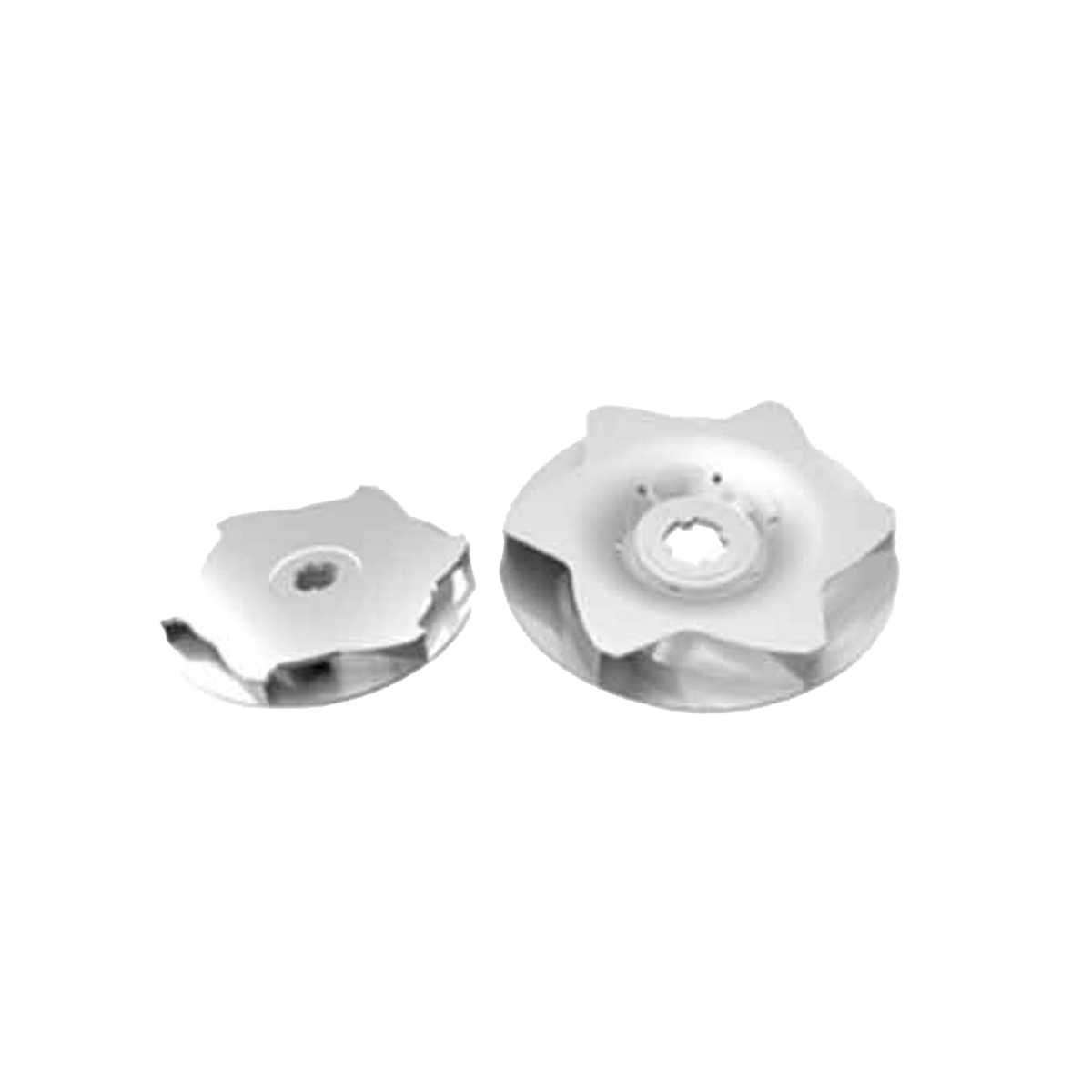

Low axial thrust impeller in SS304/316L

Matrix

Multistage pumps
$999,999.00 – $9,999,999.00
Q max: 27 m³/h
H max: 64.5 m
Closed impeller in SS304
