Home Pump Controller Units Pumps with inverters EVMS-K
Multistage pumps

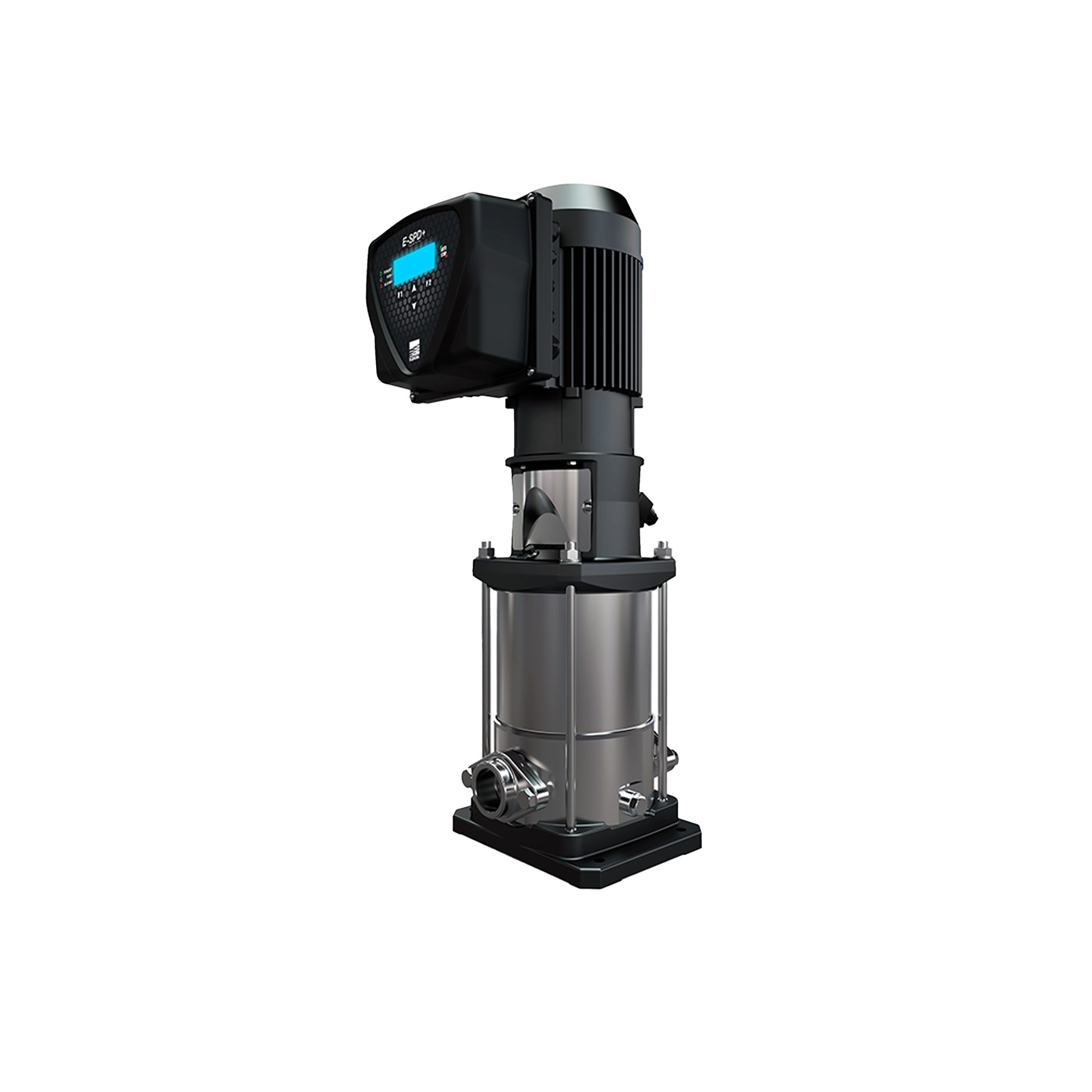

EVMS-K

EVMS-K is vertical multistage in-line pumps, EVMS equipped with a new inverter E-SPD+[plus] for energy saving solutions.

E-SPD+2200MT: 230 V 1 ph input / 3 ph output with up to 2.2 kW motors

E-SPD+4000TT: 400 V 3 ph input / 3 ph output with up to 4 kW motors

E-SPD+11000TT: 400 V 3 ph input / 3 ph output with up to 11 kW motors

Product Feature Icon

Energy saving MEI>0.7

Product Feature Icon

User-friendly

Product Feature Icon

Connectivity

Product Feature Icon

Safety

Product Feature Icon

Made in Italy

  • Key Features
  • Selection Chart
  • Specifications
  • Applications
  • Downloads

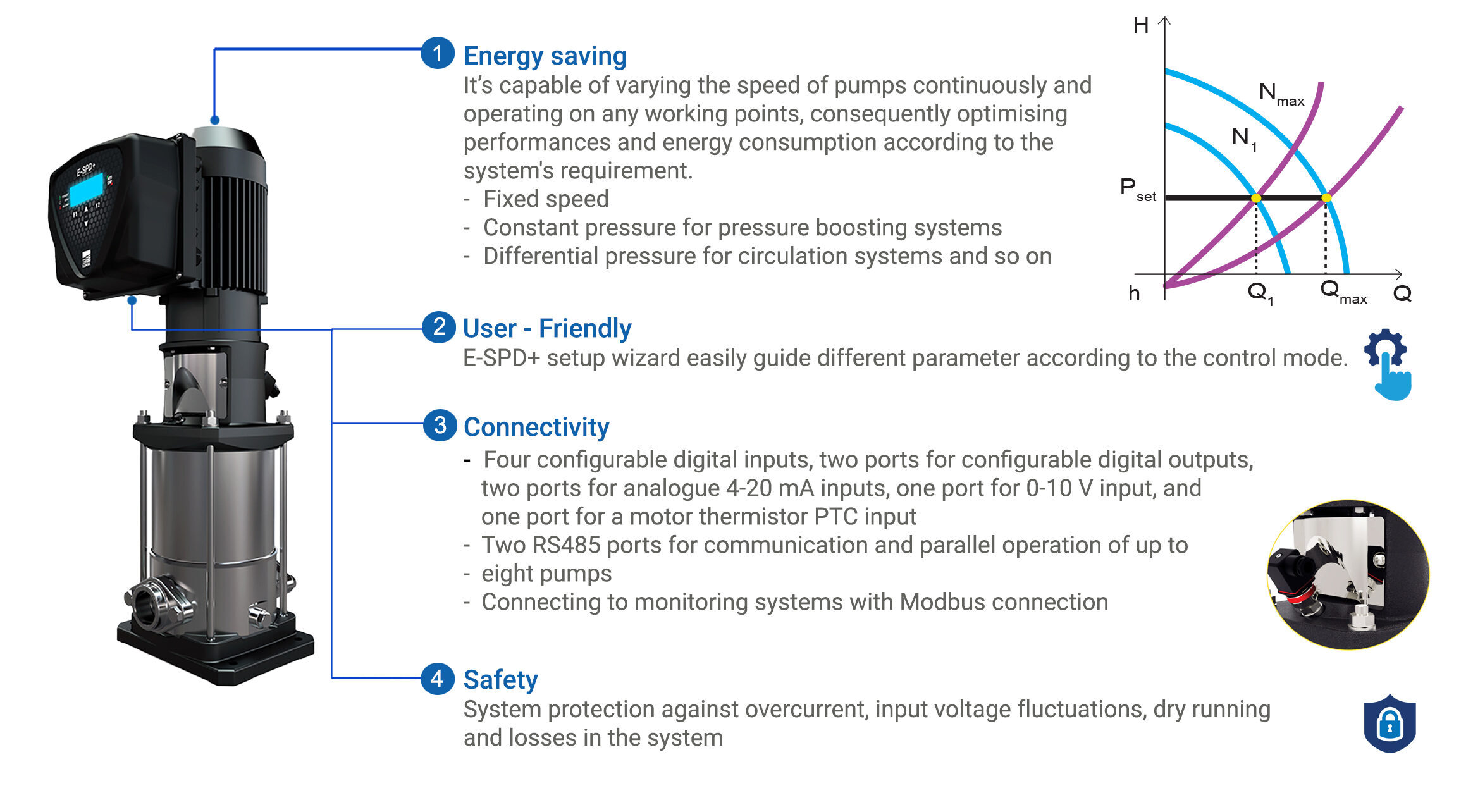

Key Features

Main Product Features

For more info please watch

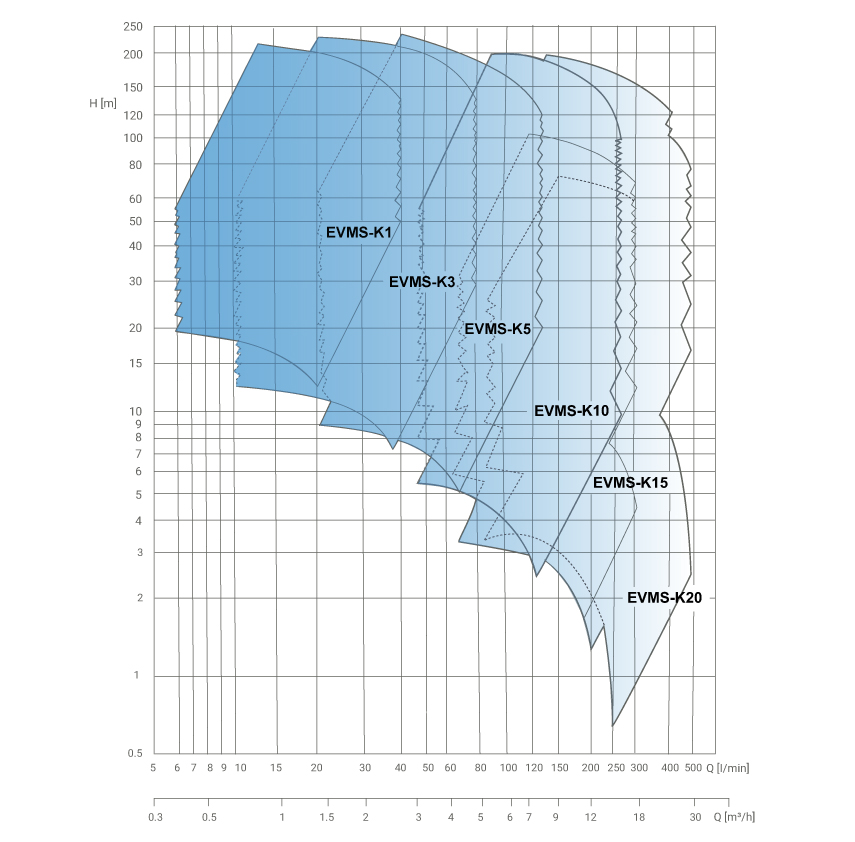

Selection Chart

EVMS-K



Specifications

Operating range
ModelEVMSG, EVMS, EVMSL
Nominal flow rate1 / 3 / 5 / 10 / 15 / 20
Flow rateup to 28.8 m³/h
Total headup to 256 m
Max. working pressure16 / 25 bar
Liquid temperature-30 to 140℃
Outlet size32 to 50 mm

Pump material
Bottom CasingCast iron for EVMSG
Stanless steel 304 for EVMS
Stanless steel 316L for EVMSL
ImpellerStanless steel 304 for EVMSG/EVMS
Stanless steel 316L for EVMSL
Liner ringStanless steel 304 + PSS for EVMSG/EVMS
Stanless steel 316L + PSS for EVMSL
ShaftStanless steel 304 for EVMSG/EVMS
Stanless steel 316L or 329A for EVMSL
Mechanical sealSiC/Carbon , SiC/SiC with graphite

Motor
BrandETM ( EBARA IE3 Three Phase Motor)
Max frequency50 Hz
Power rating2.2 to 11 kW
Effciency IE3
Voltage230/400 ± 10% V (up to 4.0 kW)
400/690 ± 10% V (5.5 kW and above)
Poles2
Protection degreeIP55
Insulation classClass F (class B for temperature rise)

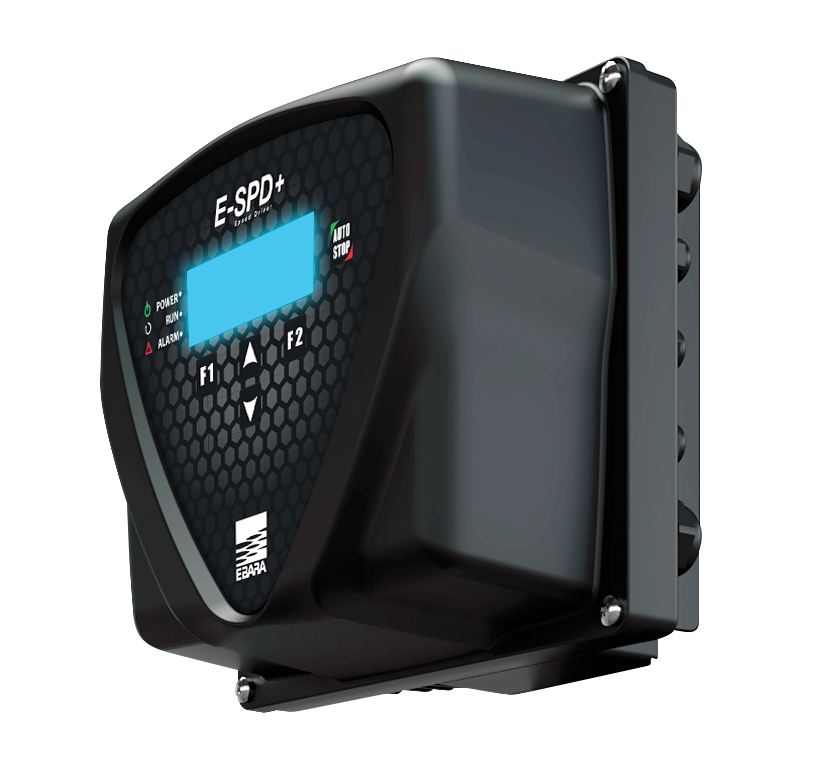

Inverter
ModelMT2000, TT4000, TT11000
Max power ratingSingle-phase 230 V for MT2000
Three-phase 400 V for TT4000
Three-phase 400 V for TT11000
Output voltageThree-phase 230 V for MT2000
Three-phase 400 V for TT4000
Three-phase 400 V for TT11000
Max current in/out20 A / 11 A for MT2000
12 A / 11 A for TT4000
31 A / 30 A for TT11000
Protection ratingIP55



Applications

  • Reverse osmosis
  • Micro/Ultra-filtration
  • Softening, ionizing, and demineralization systems
  • Boiler feed and condensate systems
  • Industrial parts washing
  • Food or bottle washing systems
  • Handling of refrigerant for cooling
  • Thermal control systems

  • Pressure Boosting for buildings
  • Sprinkler systems
  • Fire fighting systems (Jockey pump)
  • District heating

  • Field irrigation
  • Sprinkler irrigation
  • Drip irrigation



Downloads
  • Product Brochure EVMS-K (EVMS-K)
  • Databook EVMS-K (EVMS-K)
  • Instruction manual EVMS-K (EVMS-K)
  • Quick guide EVMS-K (EVMS-K)
  • Safety manual ESPD+ (EVMS-K)
  • Instruction manual ESPD+ (EVMS-K)
