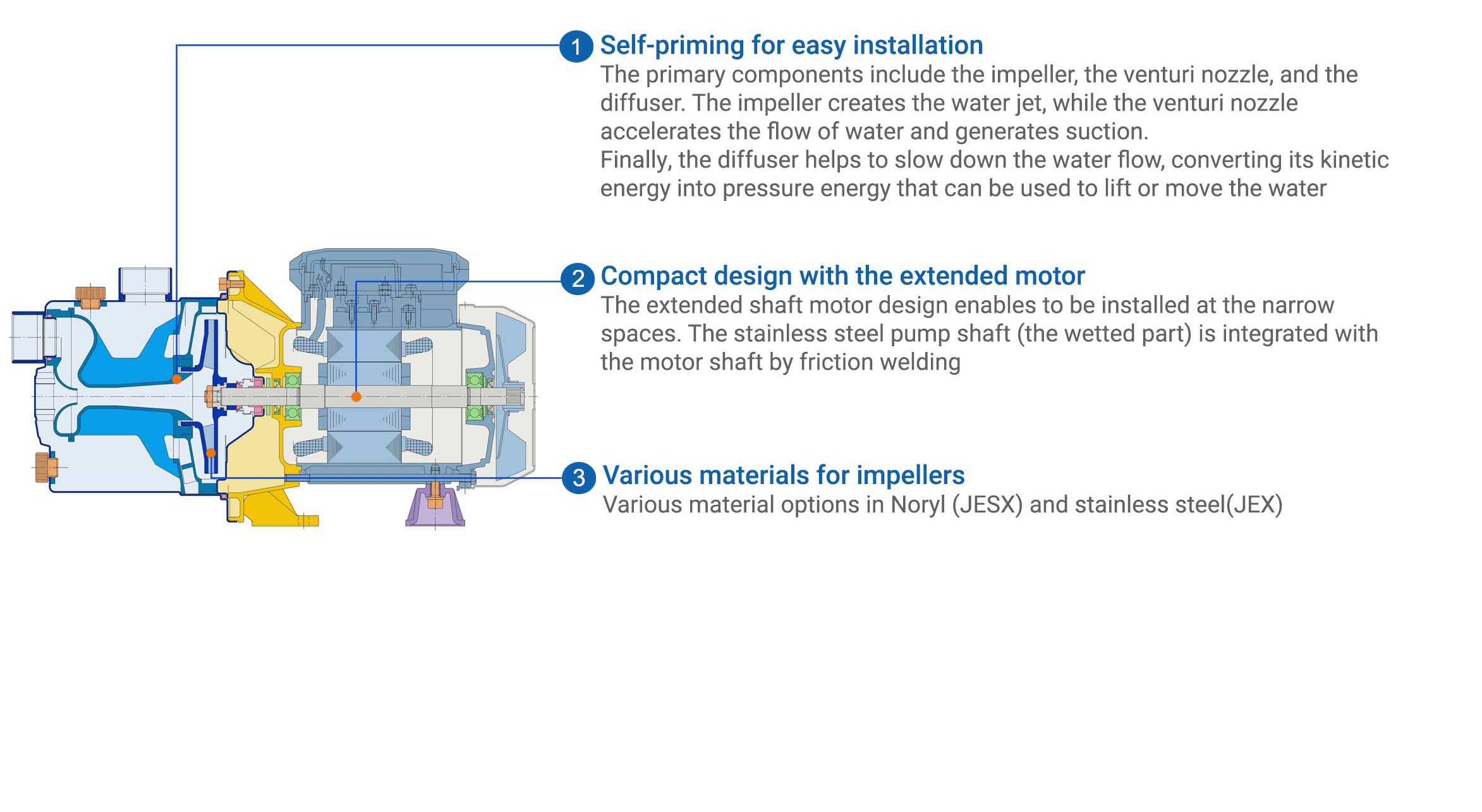

Key Features

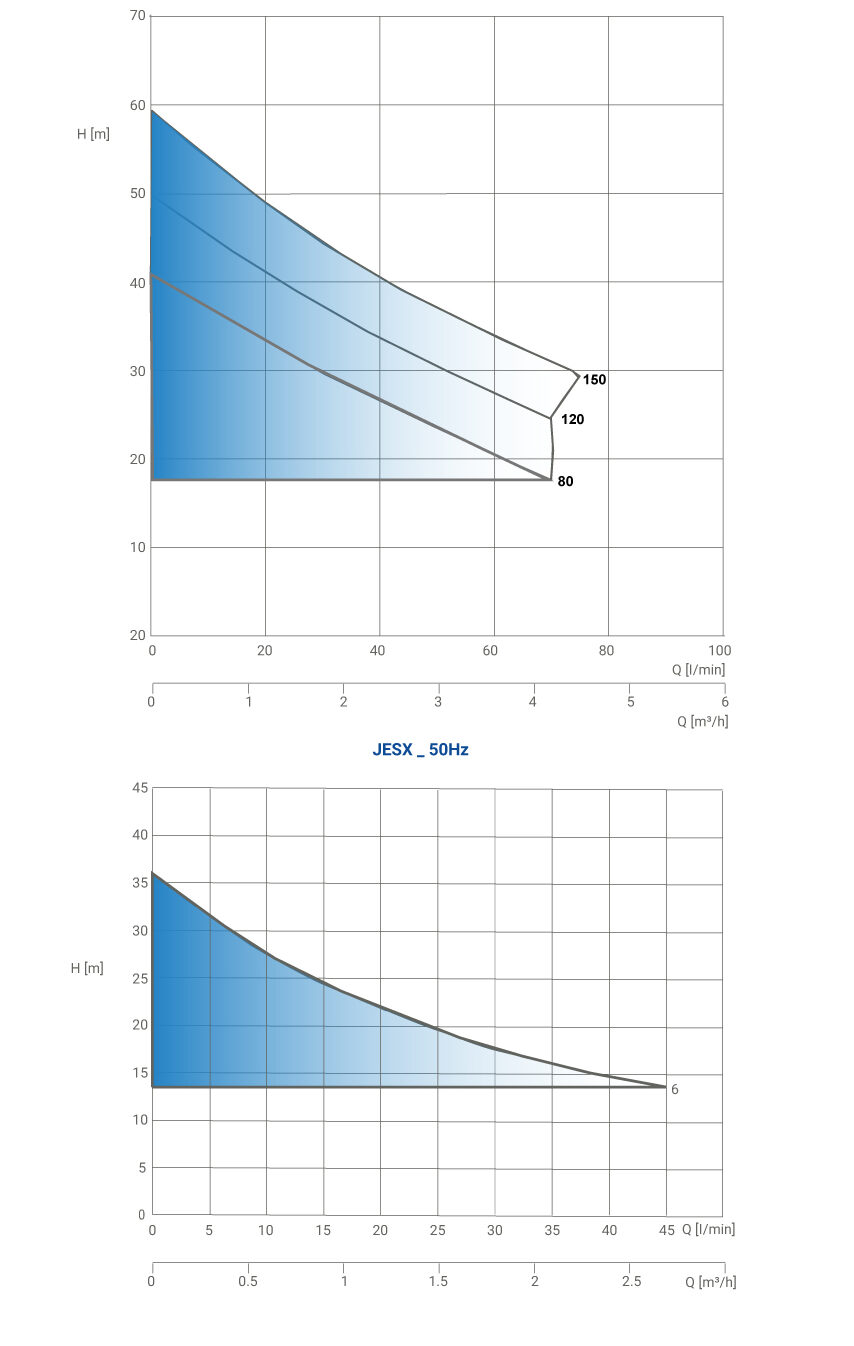

Selection Chart
JEX_50 Hz
Specifications
Operating range | |
Flow rate | up to 2.7 m3/h for JESX up to 4.5 m3/h for JEX |
Total head | up to 36 m for JESX up to 59 m for JEX |
Max. working pressure | 6 bar |
Max. liquid temperature | 45℃ |
Outlet size | G 1” |
Pump material | |
Casing | Stainless Steel 304 |
Impeller | PPO mod. glass fibre reinforced for JESX Stainless Steel 304 for JEX |
Shaft | Stainless Steel 303 (wetted parts) |
Mechanical seal | Carbon/Ceramic/NBR |
Ejector | PPO mod. glass fibre reinforced |
Diffuser | PPO mod. glass fibre reinforced |
Motor | |
Frequency | 50 Hz |
Phase | Single phase |
Poles | 2 |
Power rating | 0.44 kW for JESX 0.6 to 1.1 kW for JEX |
Effciency | IE2 |
Voltage | 230 ±10% |
Protection degree | IP55 |
Insulation class | Class F (class B for temperature rise) |
Applications
- Drinking water supply
- Domestic pressurisation
- Emptying of tanks and swimming pools
- Garden irrigation
- Handling of clean water
- Small scale irrigation
