Main Product Features
Residential pressure boosters
JESX/JEX/MATRIX pressure systems
Domestic pressure system fitted with Presscontrol® or Mascontrol®
Compact design
Easy installation
User-friendly
AS/NZS 4020
Made in Italy |

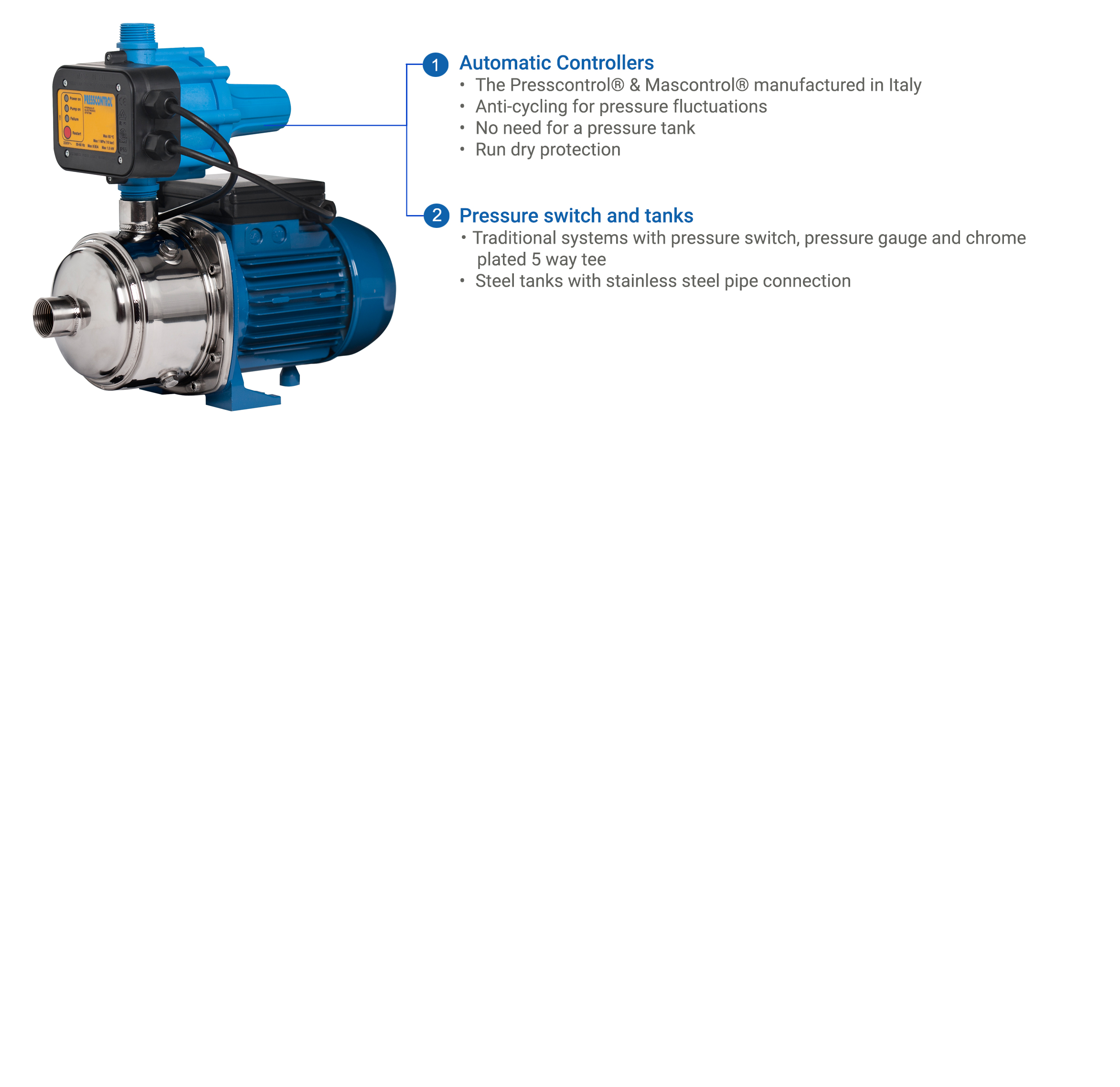

Key Features

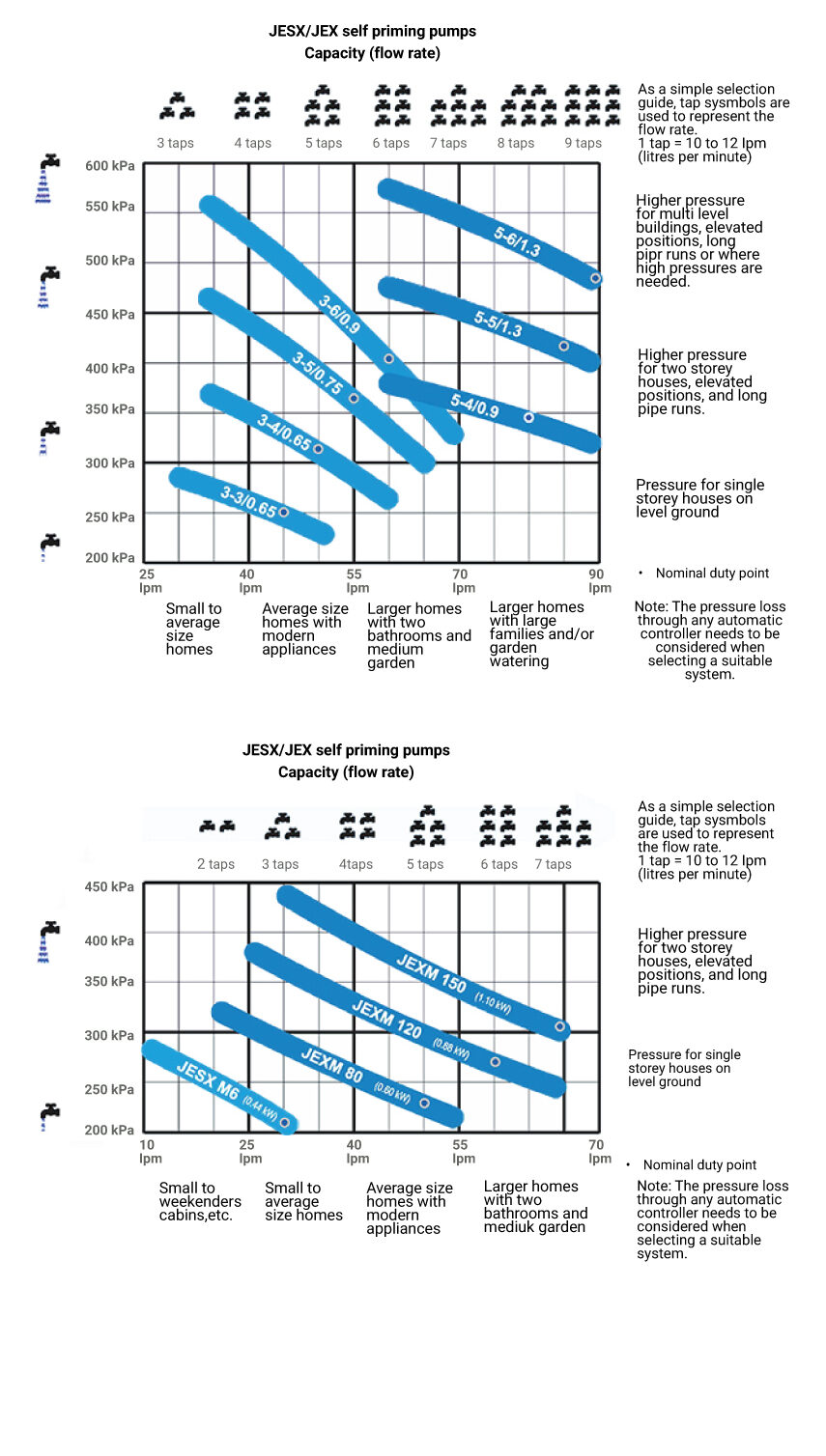

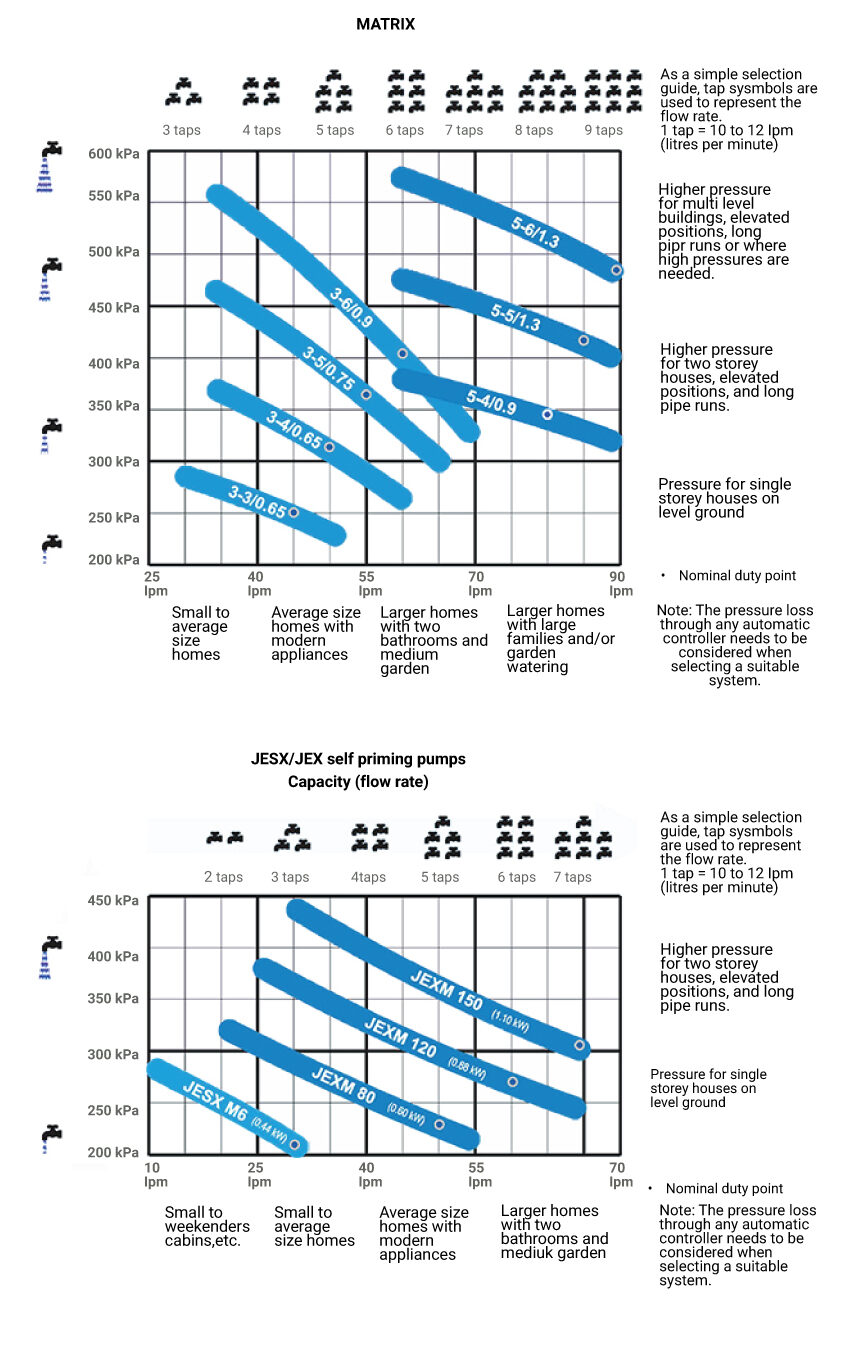

Selection Chart
50 Hz
Specifications
| Presscontrol® | |
| Model | PC15, PC22 |
| Restart pressure | 1.5 bar for PC15 2.2 bar for PC22 |
| Min. pump head req’d | 30 m hd for PC15 35 m hd for PC22 |
| Max. height of tap above controller | 15 m for PC15 22 m for PC22 |
| Inlet & Outlet | 1” male threaded |
| Maximum pressure | 10 Bar |
| Maximum current | 8 Amps |
| Mascontrol® | |
| Model | MC22 |
| Restart pressure | 2.2 bar |
| Min. pump head req’d | 35 m hd |
| Max. height of tap above controller | 22 m |
| Inlet & Outlet | 1¼” male threaded |
| Maximum pressure | 10 Bar |
| Maximum current | 16 Amps |
Applications
- Drinking water supply
- Domestic pressurisation
- Emptying of tanks and swimming pools
- Garden irrigation
- Handling of clean water
- Small scale irrigation
