Main Product Features
Multistage pumps
Matrix

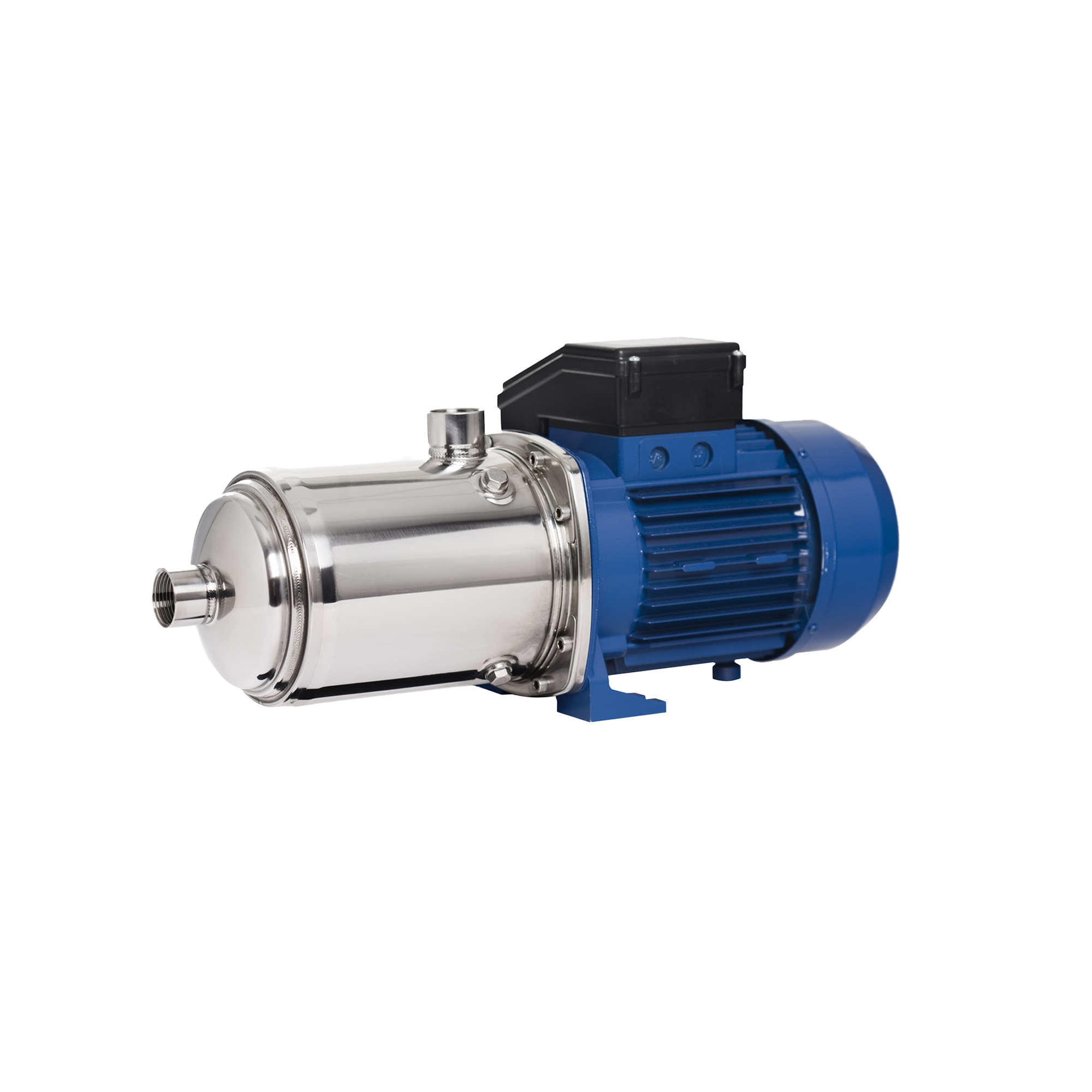

MATRIX is a horizontal multistage pump in 304 stainless steel. The pump construction is a Monoblock type with an extended shaft motor.
Silent
Compact design
Drinking Water approval
AS/NZS 4020
Made in Italy |

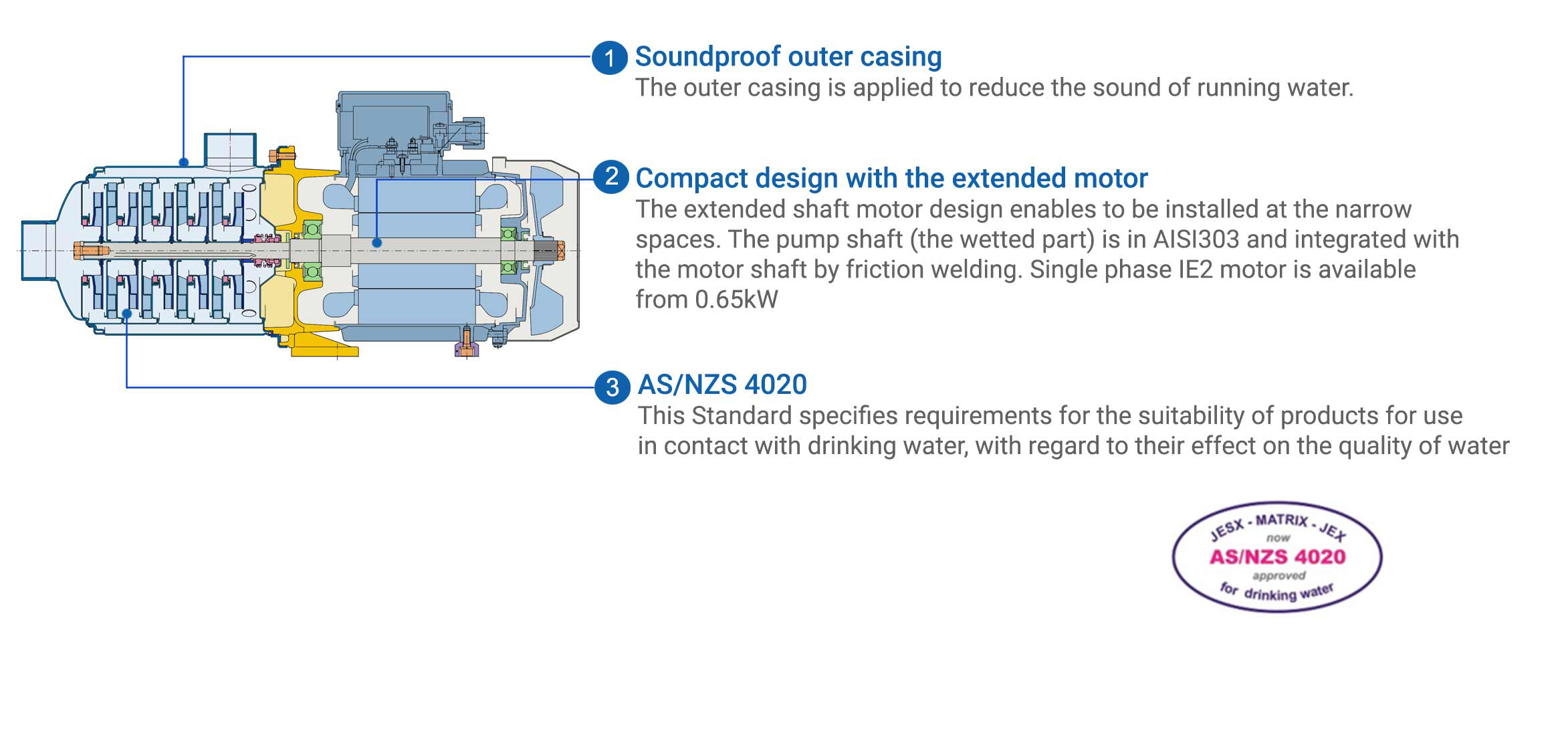

Key Features
Selection Chart
50 Hz
Specifications
| Operating range |
|
| Nominal flow rate | 3 / 5 / 10 / 15 |
| Flow rate | up to 27 m³/h |
| Total head | up to 64.5 m |
| Max. working pressure | 10 bar |
| Max. liquid temperature | -5 to 85℃ |
| Outlet size | G 1” to G 1 1/2” |
| Pump material | |
| Casing | Stainless Steel 304 |
| Impeller | Stainless Steel 304 |
| Shaft | Stainless Steel 304 (wetted parts) |
| Mechanical seal | Standard: Carbon/Ceramic/NBR |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 0.65 to 2.2 kW (1 ph) |
| Efficiency | IE2 |
| Voltage | 230 ±10% (1 ph) |
| Poles | 2 |
| Protection degree | IP55 |
| Insulation class | Class F (class B for temperature rise) |
Applications
- Handling of refrigerant for cooling
- Washing plants
- Membrane filtration
- Cooling towers
- Handling of clean water in general
- Domestic pressurization
- Rainwater harvesting
