Home Engineered Pumps Solid handling pumps XCS-Screw
Solid handling pumps

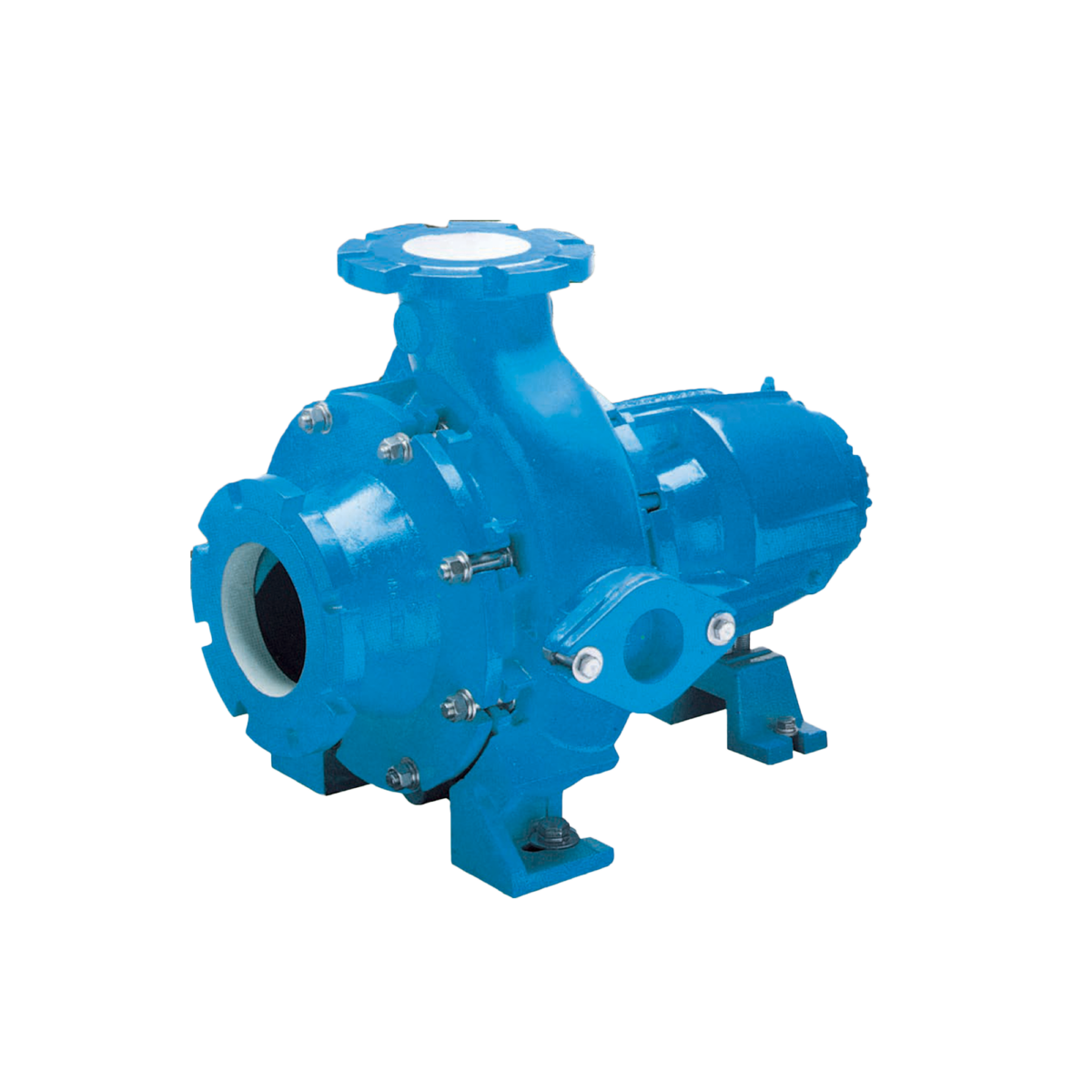

XCS-Screw

Screw centrifugal pumps combine the action of a positive displacement screw with a single-vane centrifugal impeller

Product Feature Icon

Abrasive resistant materials

Product Feature Icon

Non-clog operation

Product Feature Icon

Low NPSH

Product Feature Icon

Long product life

  • Key Features
  • Selection Chart
  • Specifications
  • Applications
  • Downloads

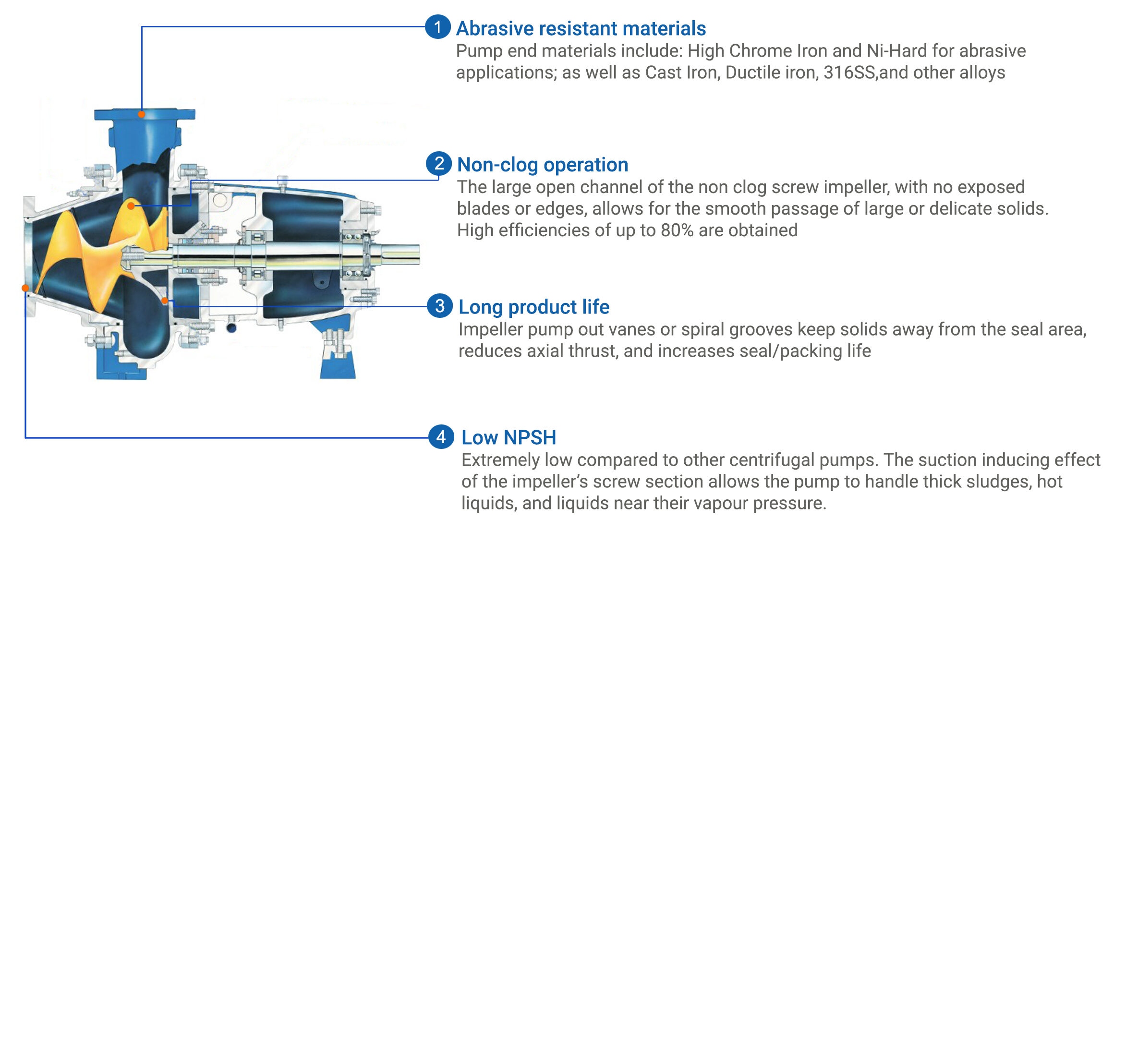

Key Features

Main Product Features

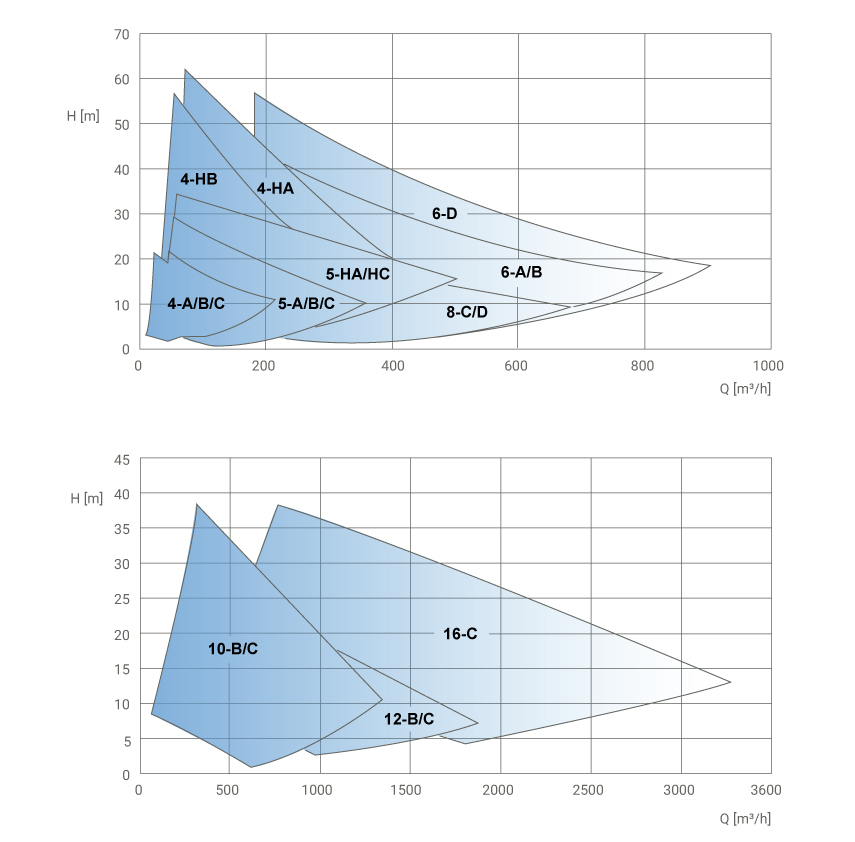

Selection Chart

50 Hz









Specifications

Operating range
Flow rateup to 3,406 m3/h
Total headup to 62 m
Max solid size187 mm sphere
Max submergence8 m
Outlet size100 to 400 mm

Pump material
Pump endHigh Chrome Iron, Ni-Hard, Cast Iron, Ductile iron, 316SS,and other alloys

Note
Model XCS is the engineered product and various material options are available.
Please contact our sales team for pump sizing.



Applications

  • Food processing
  • Live fish, fruits, vegetables
  • Pulp and paper
  • Wood chips, medium density pulp stock, sludges
  • Chemical/petrochemical
  • Oil/water separators, crystal slurries

  • Waste Treatment, Sludges, Sewage, Flocculants



Downloads
  • Product brochure XCS (XCS-Screw)
  • Instruction manual XCS
