Solid handling pumps

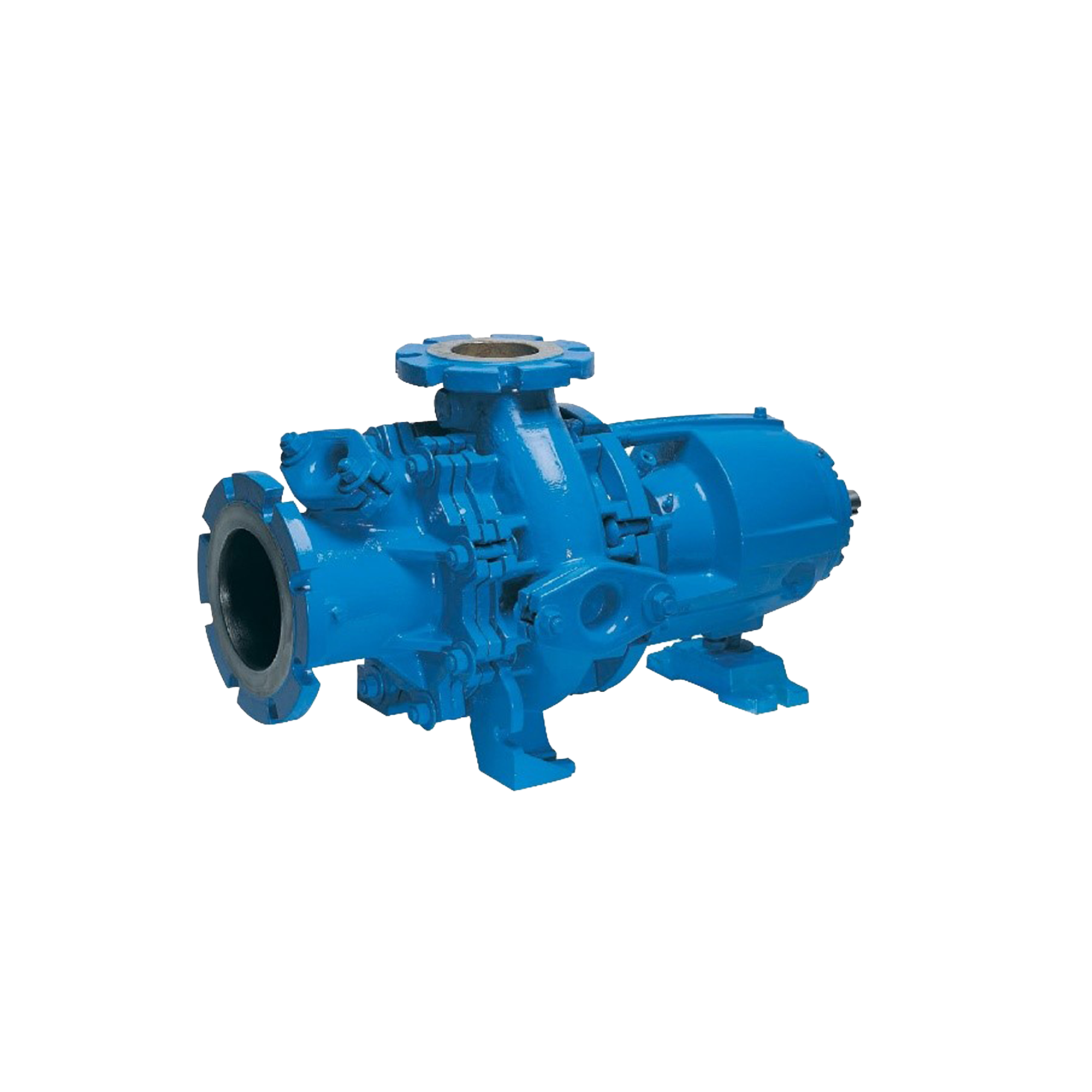

CHOPX-Chopper

Chopper Pumps design is an open-type impeller with sharpened leading and vane edges to perform the dual function of cutting and pumping, making them ideally suited for applications requiring reduction of solids size and/or protection of downstream equipment

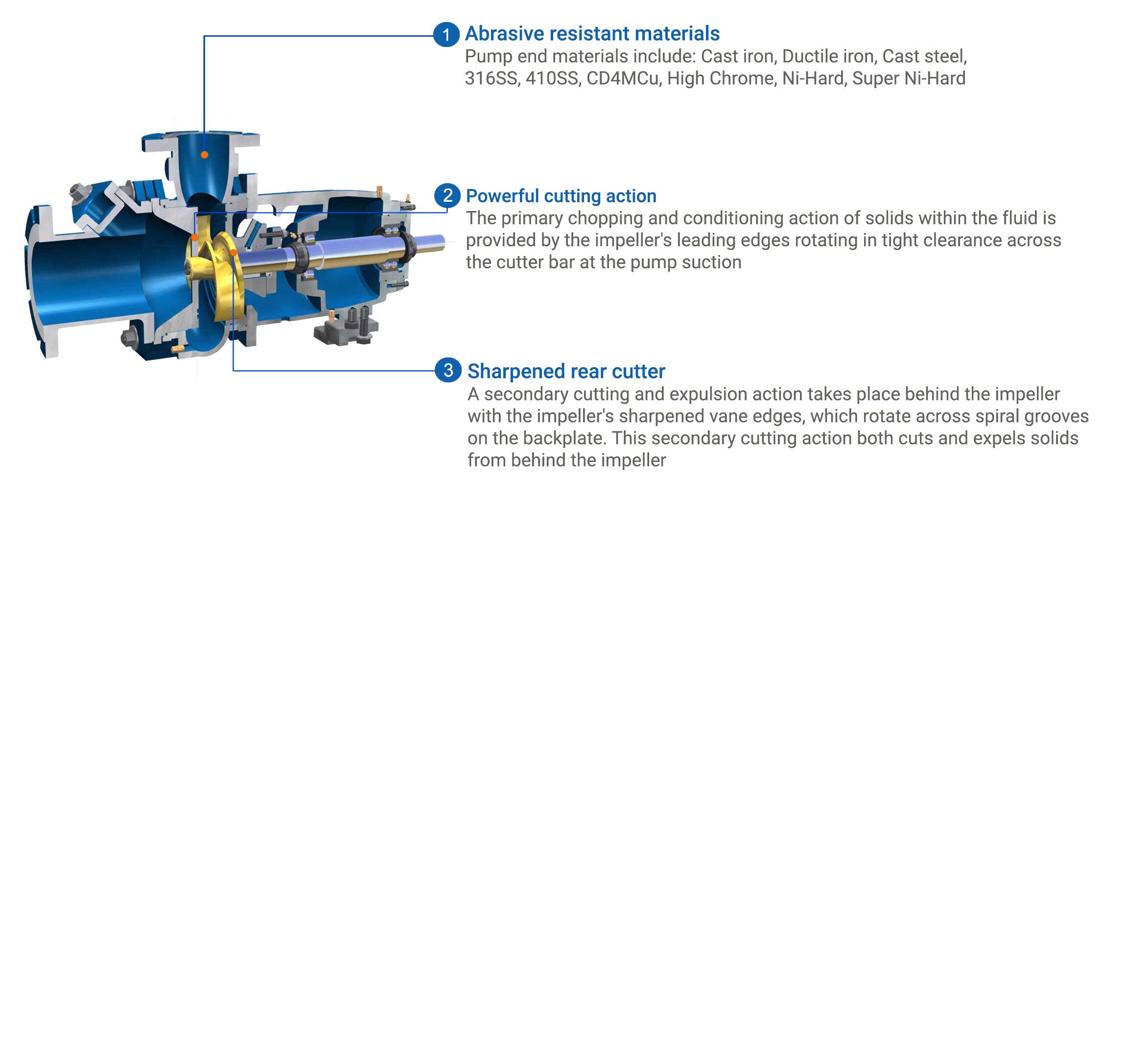

Key Features

Main Product Features

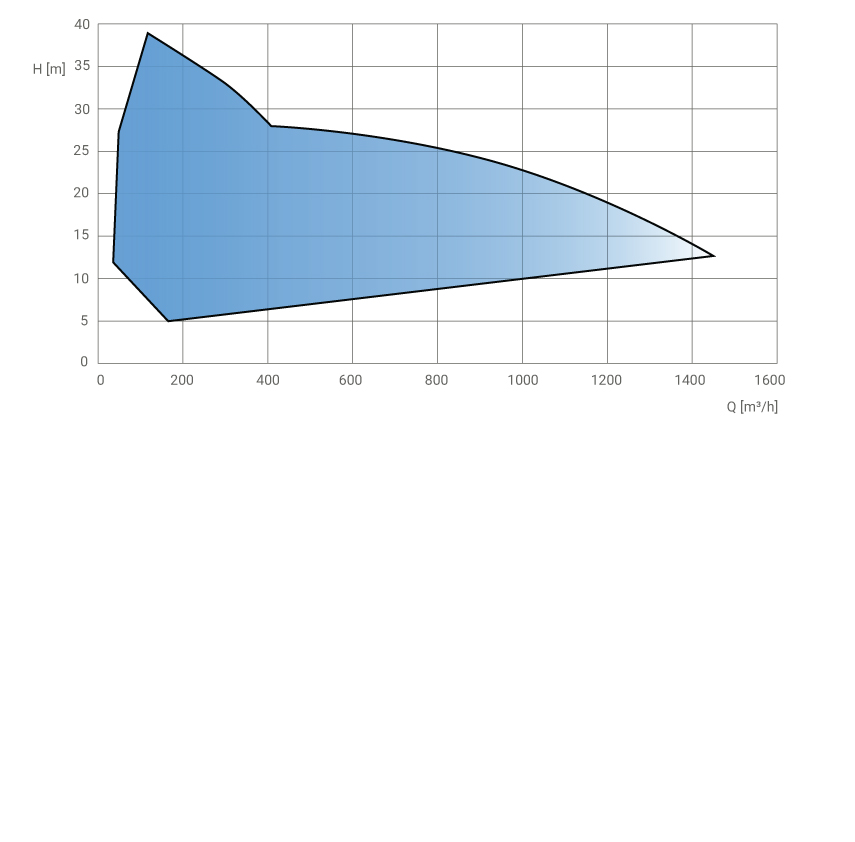

Selection Chart

50 Hz









Specifications

Operating range
Flow rateup to 1,400 m3/h
Total headup to 38 m
Outlet size80 to 300 mm

Pump material
Pump endCast iron, Ductile iron, Cast steel, 316SS, 410SS, CD4MCu, High Chrome,
Ni-Hard, Super Ni-Hard

Note
Model CHOPX is the engineered product and various material options are available.
Please contact our sales team for pump sizing.

Applications

  • Food processing and rendering
    • Poultry waste (Bones)
    • Cattle pen waste
    • Slaughterhouse waste
    • Fish processing sumps
    • Plant effluent/Sludge
    • Rendering plant solids
    • Fruit and vegetable waste
  • Pulp & Paper
    • Wood yard and processing plant sumps
    • Chip and bark handling
  • Chemical
    • Water with plastics
    • Oil waste
    • Wash down sumps
    • Waste disposal

  • Waste water treatment
    • Scum pits
    • Difficult lift station services
    • Digester reticulation
    • Digester scum blankets
