Main Product Features
For more info please watch

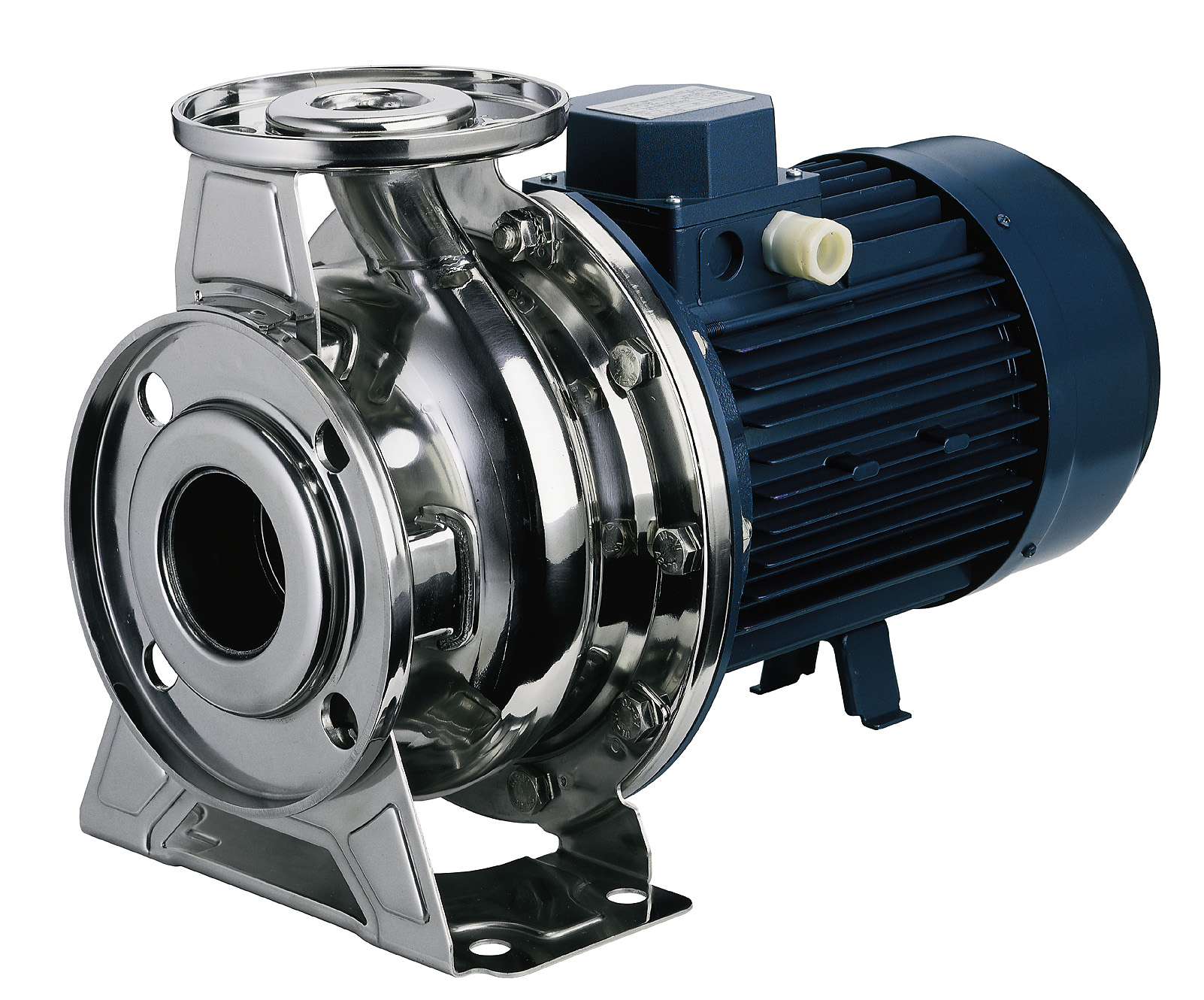

Stainless steel end suction pumps
3M
3M is a family of 3 Series for centrifugal pumps standardised to EN733 in 304ss stainless steel. The pump construction is a Monoblock type with an extended shaft motor.
EN733
Robust pump casings
Energy saving MEI>0.7
Easy installation and maintenance
Compact design
Made in Italy
Food & Beverage solutions as options |
Key Features

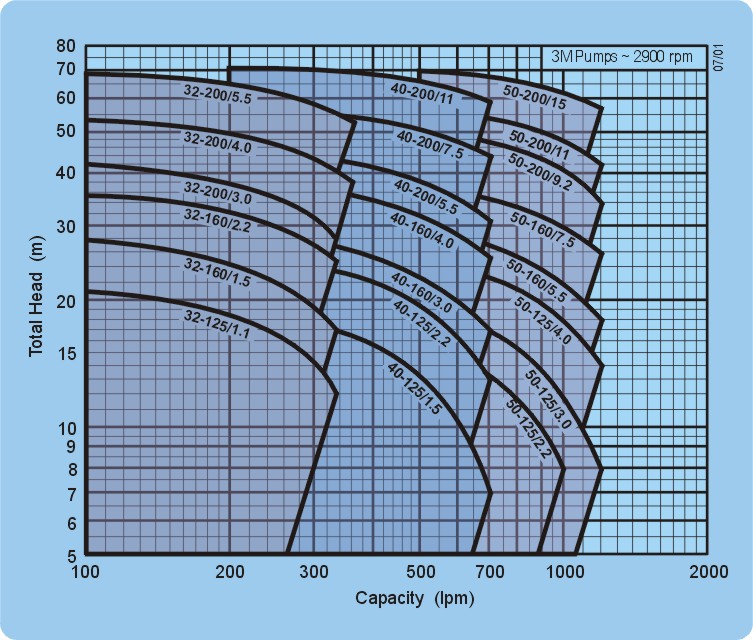

Selection Chart
50Hz 2pole
Specifications
| Operating range | |
| Flow rate | up to 72 m³/h (2 pole) up to 39 m³/h (4 pole) |
| Total head | up to 70 m (2 pole) up to 17.7 m (4 pole) |
| Max. working pressure | 10 bar |
| Liquid temperature | -10 to 90℃ |
| Outlet size | 32 to 50 mm |
| Pump material | |
| Casing | Stainless Steel (stamped) 304 |
| Impeller | Stainless Steel (stamped) 304 |
| Shaft | Stainless steel 304 (wetted parts) |
| Mechanical seal | Standard: Carbon/Ceramic/NBR Options: - High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings - Hard faced seal with SiC/SiC/Viton seal & Viton O’ Rings |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 1.1 to 15 kW (2 pole) 0.37 to 2.2 kW (4 pole) |
| Efficiency | IE3 |
| Voltage | 230/400 V (up to 4.0 kW) 400/690 V (5.5 kW & above) |
| Poles | 2, 4 |
| Protection degree | IP55 |
| Insulation class | Class F (class B for temperature rise) |
Applications
- Micro or Ultra-filtration systems
- Industrial liquid handling systems
- Industrial pressure boosting
- Industrial parts washing systems
- Filtration and transfer in swimming pool
- Handling of refrigerant for cooling
- Cooling and air-conditioning systems
- Field irrigation
- Sprinkler irrigation
