Our Products > Surface Pumps > CDX Single Impeller Pumps

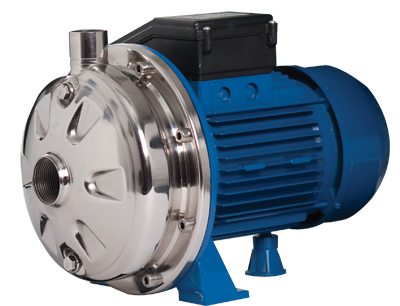

CDX Single Impeller Pumps

Made almost entirely in 304 stainless steel, these pumps also feature the one piece volute manufactured using Ebara's unique plasma stamping process.  Suitable for:

  • Industrial, commercial and agricultural applications
  • Water Supply & Irrigation
  • Cooling towers & Booster sets
  • Washing plants or machines
  • Air conditioning systems
  • Heat exchangers
  • For the pumping or boosting of water in general

Specifications:



Motor output: 0.37 to 1.5 kW (1ph)
0.37 to 1.8 kW (3ph)
Outlet size: 25 mm

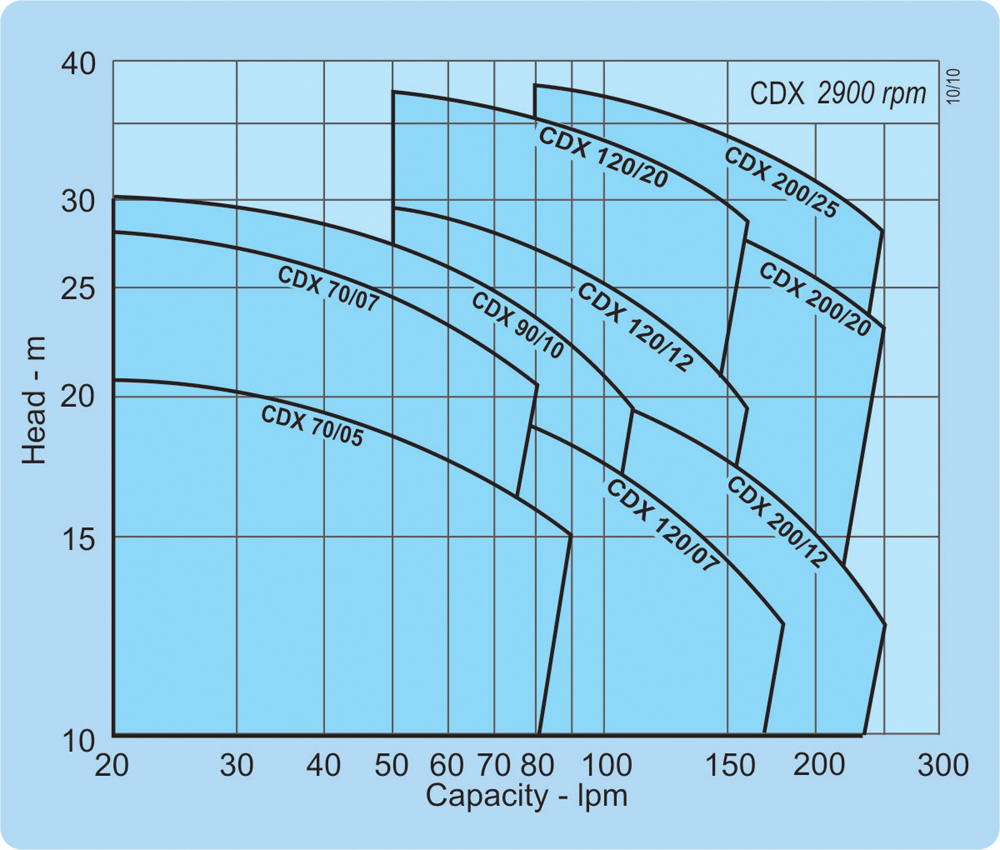

Flow rates: 20 to 250 lpm
Head: 12 to 41 m
Max. liquid temp: 90 oC (60 oC for 70/05, 70/07 and 90/10)
Max. working pressure: 8 Bar

Options:

High temperature versions with Viton elastomers, suitable for liquid temperatures up to 110 oC.

Hard face mechanical seal in Sic/SiC/Viton
