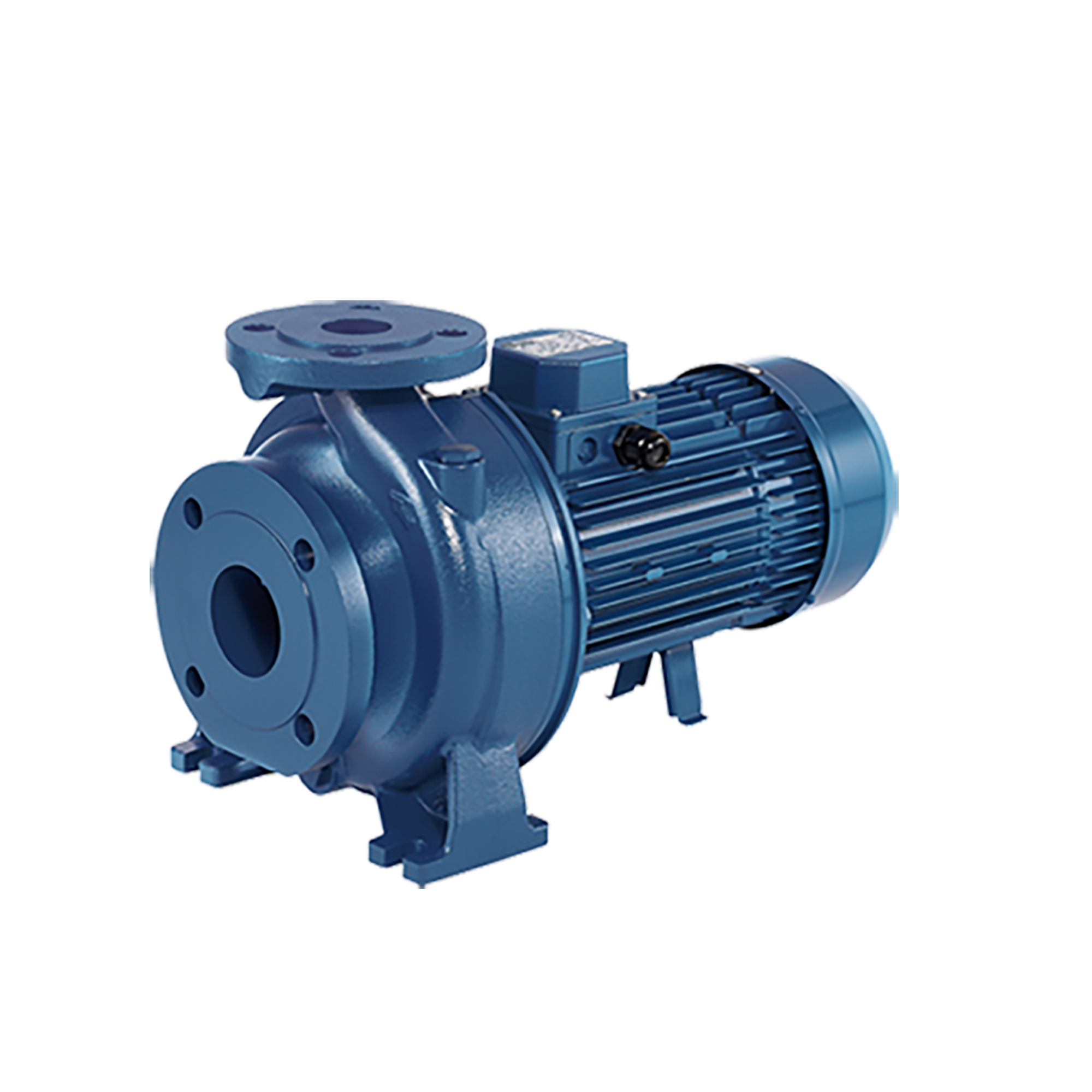

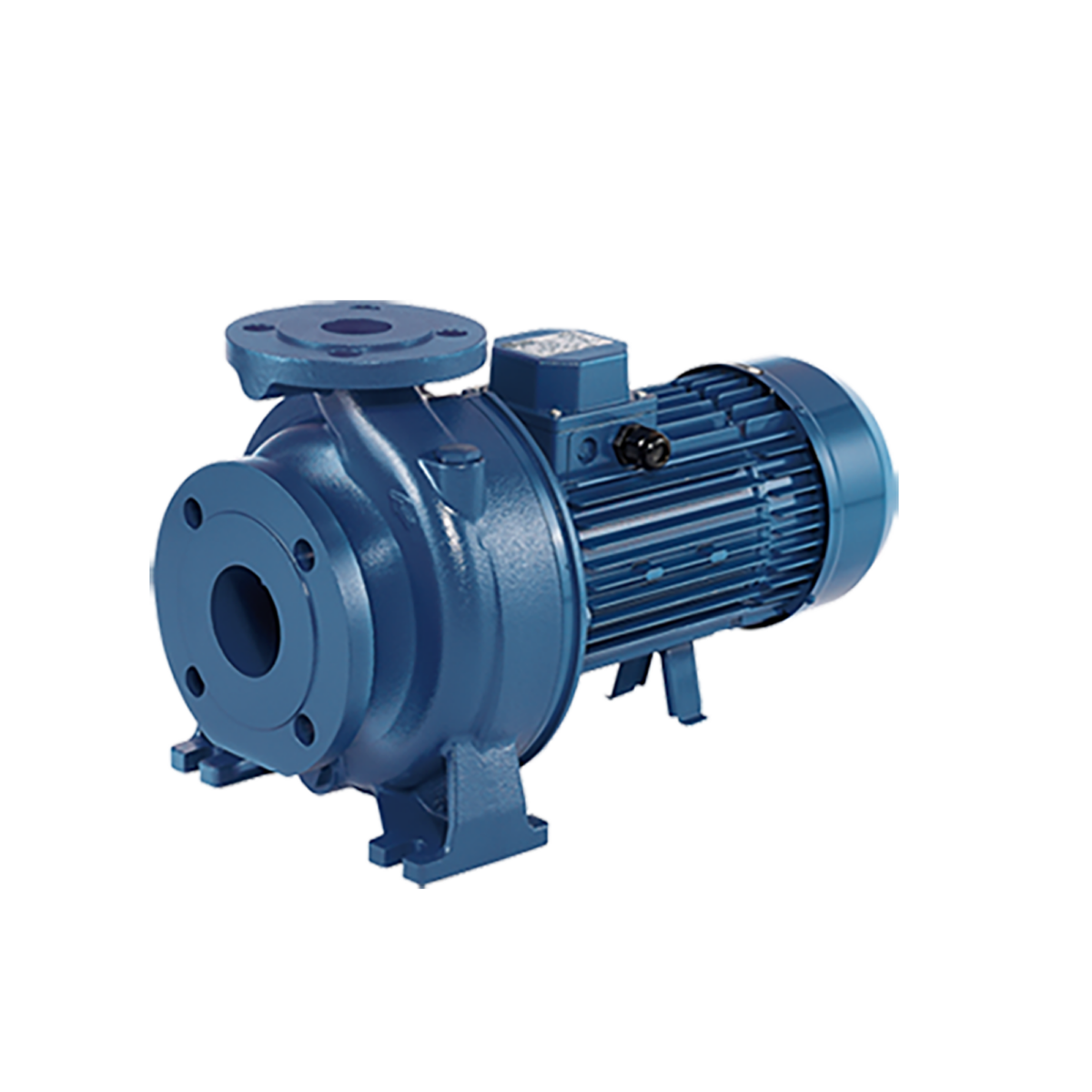

Cast iron end suction pumps

3D

3D is a range of 3 Series for centrifugal pumps standardized to EN733 with cast iron casing and stainless steel impeller. The pump construction is a Monoblock type with an extended shaft motor.

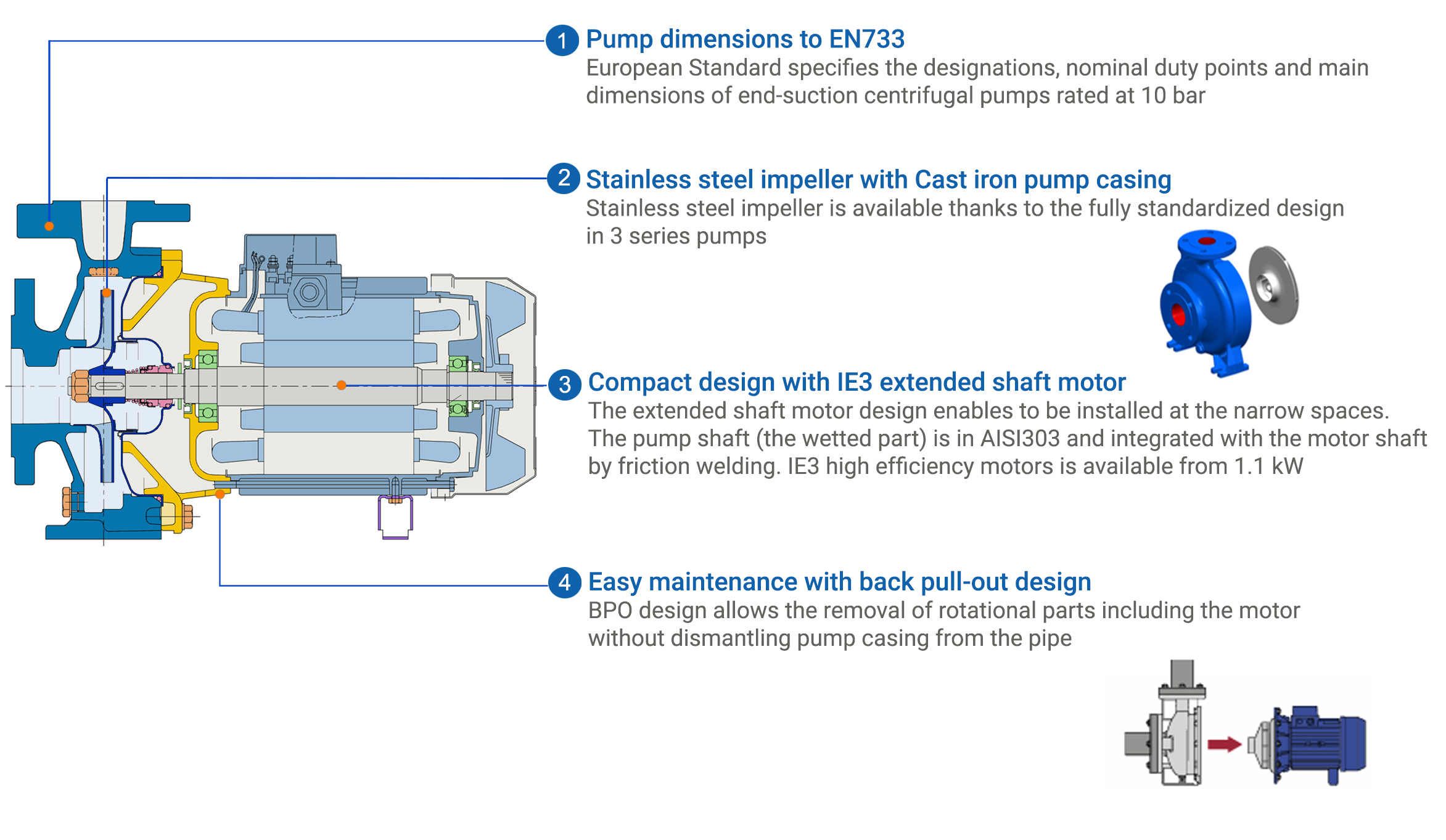

Key Features

 Main Product Features

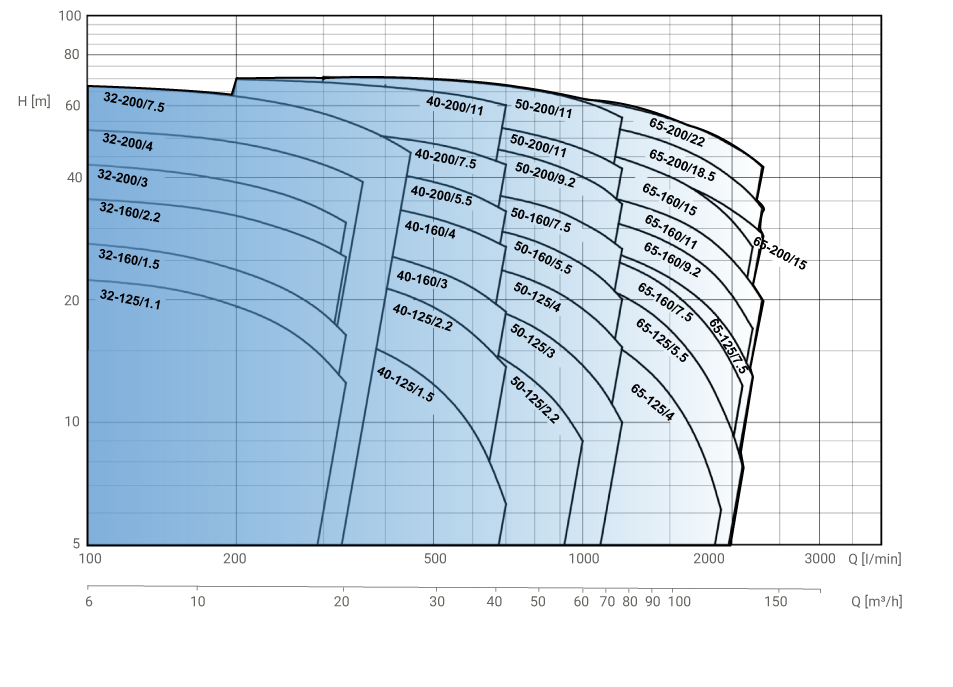

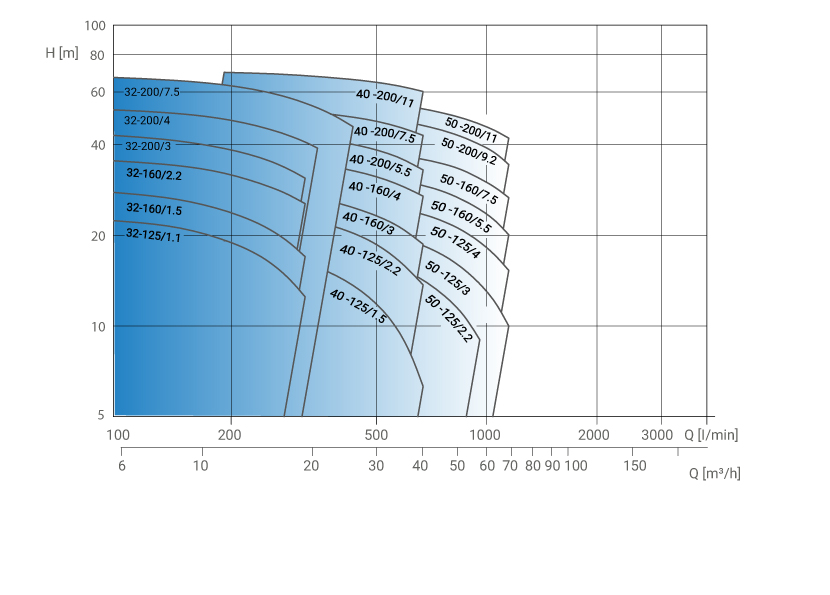

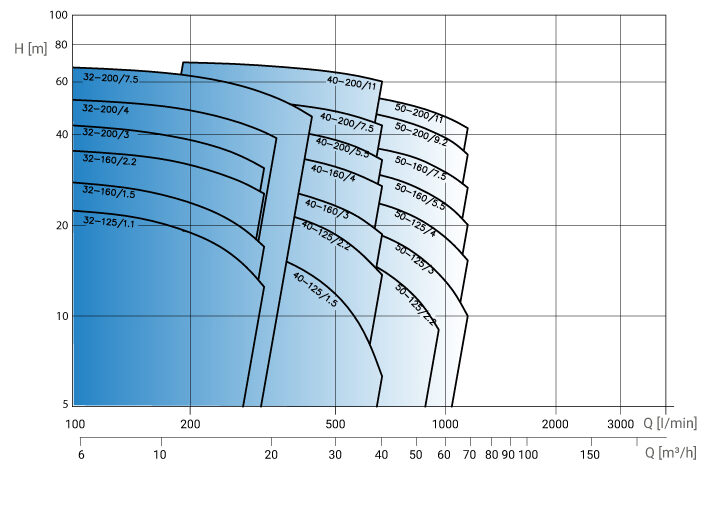

Selection Chart

50 Hz 2pole





















Specifications

Operating range
Flow rateup to 72 m3/h
Total headup to 70 m
Max. working pressure10 bar
Liquid temperature-5 to 90℃
Outlet size32 to 50 mm

Pump material
CasingStainless Steel (stamped) 304
ImpellerStainless Steel (stamped) 304
ShaftStainless steel 304 (wetted parts)
Mechanical sealStandard: Carbon/Ceramic/NBR
Options:
- High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings
- Hard faced seal with SiC/SiC/Viton seal & Viton O’ Rings

Motor
Frequency50 Hz
Power rating1.1 to 11 kW (3 ph)
1.1 to 2.2 kW (1 ph)
Efficiency IE3 (3 ph)
IE2 (1 ph)
Voltage230/400 V (up to 4.0 kW for 3 ph )
400/690 V (5.5 kW & above for 3 ph)
230 V (up to 2.2 kW for 1 ph)
Poles2
Protection degreeIP55
Insulation classClass F (class B for temperature rise)



Applications

  • Handling of clean, chemically non-aggressive water and liquids.
  • Handling of refrigerant for cooling

  • Heating, ventilation and air-conditioning systems
  • Refrigeration systems

  • Field irrigation
  • Sprinkler irrigation
  • Drip irrigation
