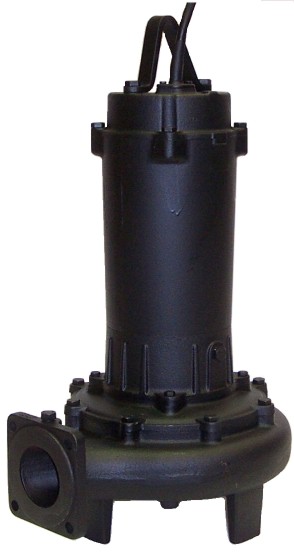

DF Submersible Sewage Pumps

Submersible sewage pump with non-clog semi open impeller,
with “cutting effect”, to prevent clogging by fibrous matter.
Suitable for sewage, waste water, storm water drainage, etc.

Specifications

  • Submersible pump with non-clog semi open impeller
  • Maximum liquid temperature: 40 °C
  • Maximum submergence: 8 m
  • Maximum solids handling:

Model

Ø(mm) 65 80
kW All All

Foreign matter Diameter (mm)

40 46
Length of fibre (mm) 195 240



Materials

  • Pump casing: Cast Iron
  • Impeller: Cast Iron
  • Suction cover: Cast Iron
  • Shaft: 403 Stainless Steel
  • Motor frame: Cast Iron
  • Fasteners: 304 Stainless Steel
  • Mechanical seal: Double mechanical seal in oil chamber;

                                  Silicon Carbide lower faces,
                                  Carbon/Ceramic upper faces

Motor Data

  • Air filled, dry submersible, 4 pole, 50 Hz
  • Insulation class F
  • IP68 protection
  • 3 Phase - 400 Volt
  • In built overload protection

Range

  • 60 to 80 mm Ø discharge
  • 1.5 to 3.7 kW - 3 Phase (Manual only)

Literature for download
