Our Products > Cast Iron Submersible Pumps > DS Submersible Sump Pumps

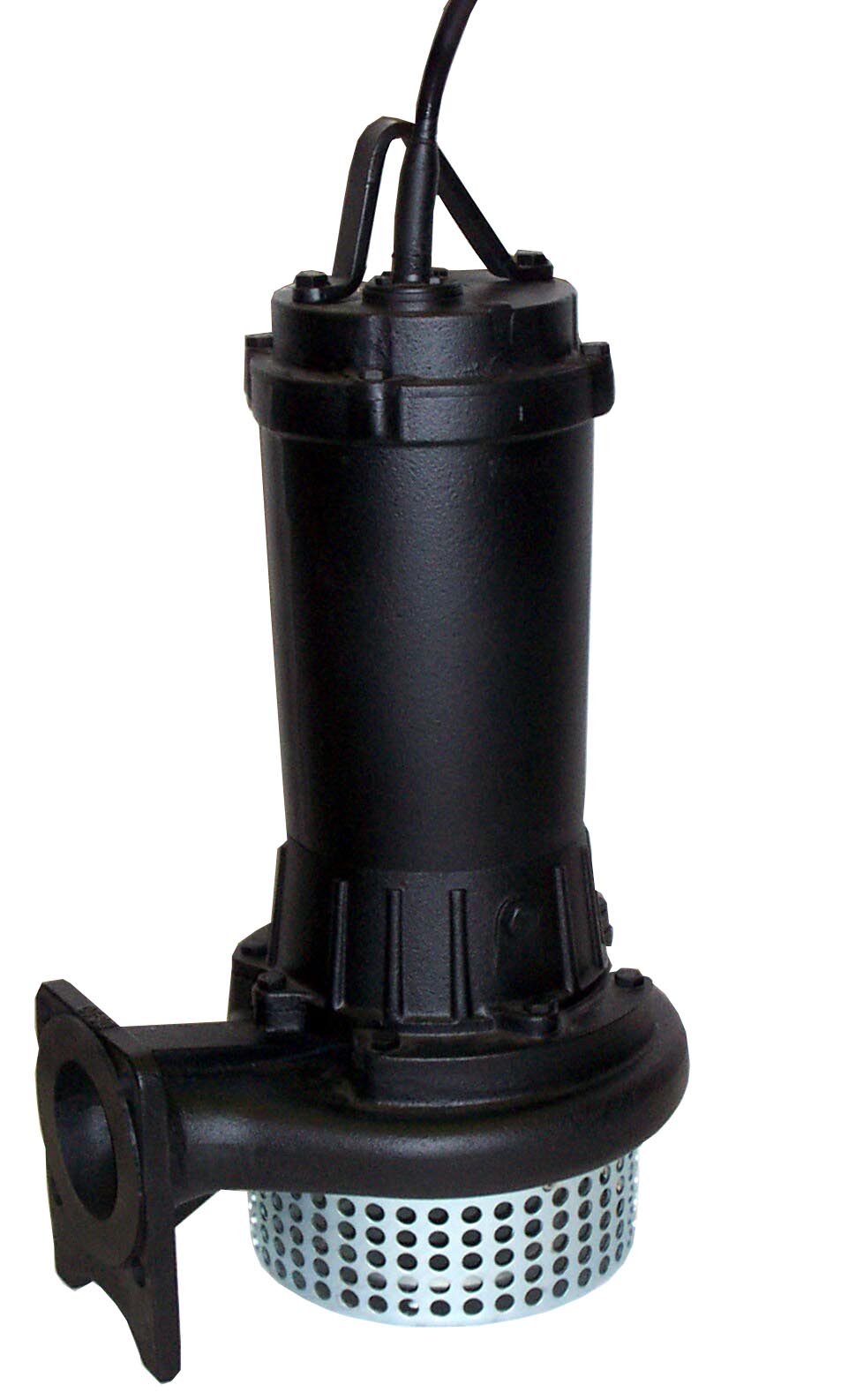

DS Submersible Sump Pumps

Open impeller design provides high heads and efficiencies.
Suitable for many sump applications including:- draining
wells, lift shafts and tanks, irrigation, drainage, water
supply, general transfer of water.

Specifications

˜ Submersible pump with semi open impeller and strainer
˜ Maximum liquid temperature: 40 °C
˜ Maximum submergence: 8 m
˜ Maximum solids handling:

Model Ø(mm) 50 80 100
kW All All All
Foreign matter Diameter (mm) 5 7 8
Length of Fibre (mm) 50 50 50



Materials

˜ Pump casing: Cast Iron
˜ Impeller: Cast Iron
˜ Suction cover: Cast Iron
˜ Shaft: 403 Stainless Steel
˜ Motor frame: Cast Iron
˜ Fasteners: 304 Stainless Steel
˜ Mechanical seal: Double mechanical seal in oil chamber,
                           Silicon Carbide lower faces,
                           Carbon/Ceramic upper faces.

Motor Data

˜ Air filled, dry submersible, 2 pole, 50 Hz
˜ Insulation class F
˜ IP68 protection
˜ 3 Phase - 400 Volt
˜ In built overload protection

Range

˜ 50 to 100 mm Ø discharge
˜ 3.7 to 7.5 kW - 3 Phase (Manual only)



Literature for download
