Our Products > Cast Iron Submersible Pumps > DVS Submersible Semi Vortex Pumps

DVS Submersible Semi Vortex Pumps

Semi vortex impeller design provides non clog operation, suitable
for waste water applications that contain soft or fibrous solids:-
Septic effluent, textile & woollen mills, food processing plants,
dairy & piggery washdown, etc.



Specifications

  • Submersible pump with semi vortex impeller.
  • Maximum liquid temperature: 40 °C
  • Maximum submergence: 0.4 -1.5 kW - 4 m / 2.2 -3.7 kW - 8 m
Model Ø (mm) 50 80 80
kW All 0.75, 1.5 2.2, 3.7
Foreign Matter diameter (mm) 32 45 56
Length of fibre (mm) 150-250 200-320 245-350



Materials

  • Pump casing: Cast Iron
  • Impeller: Cast Iron
  • Shaft: 403 Stainless Steel
  • Motor frame: Cast Iron
  • Fasteners: 304 Stainless Steel
  • Mechanical seal: Double mechanical seal in the oil chamber;

                                  Silicon Carbide lower faces,
                                  Carbon/Ceramic upper faces.

Motor Data

  • Air filled, dry submersible, 2 pole, 50 Hz
  • Insulation class F
  • IP68 protection
  • 3 Phase - 400 Volt, 1 Phase - 230 Volt
  • In built overload protection



Range

  • 50 to 80 mm Ø discharge
  • 0.4 to 0.75 kW - 1 Phase
  • 0.75 to 3.7 kW - 3 Phase

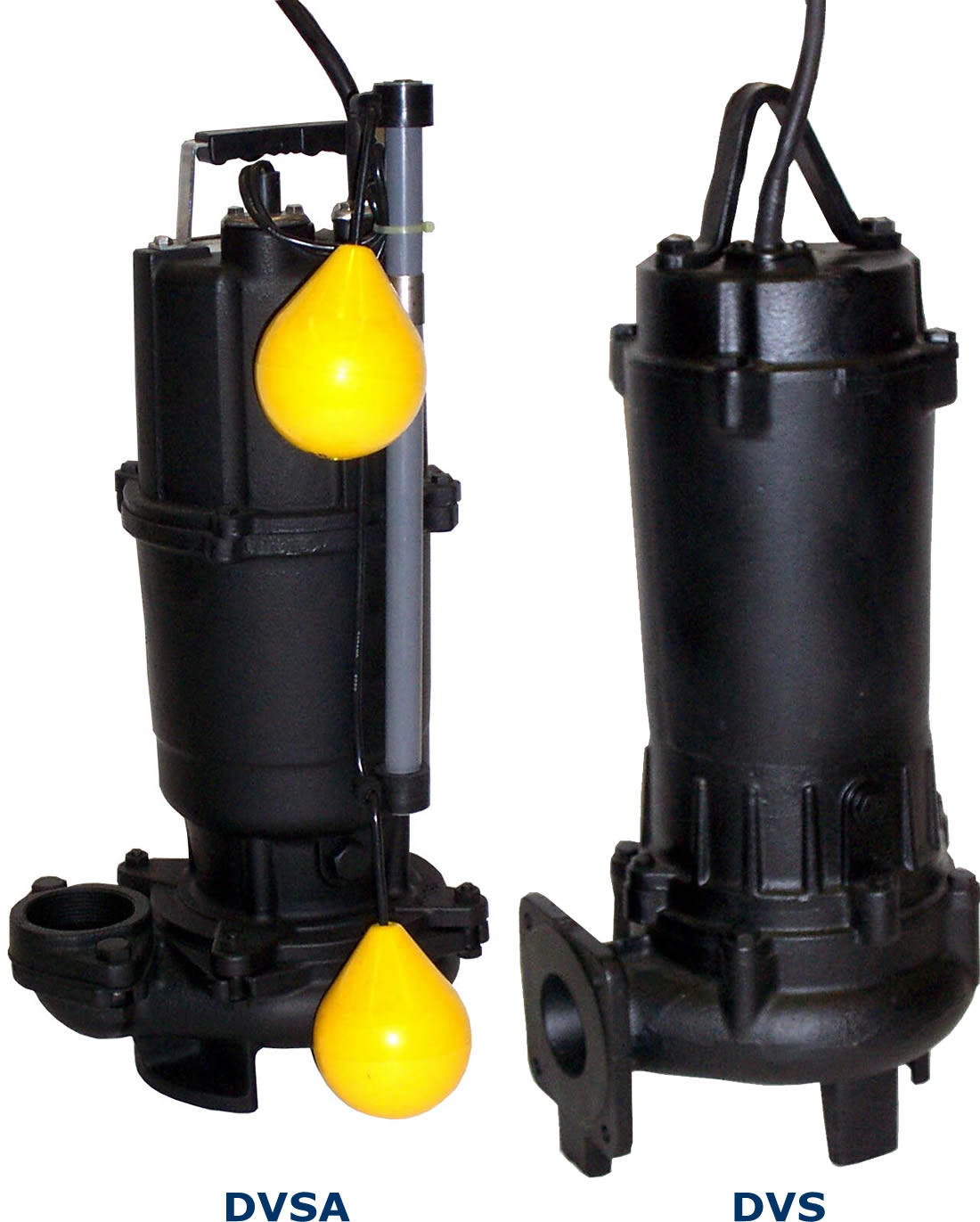

  • Manual or automatic versions available (all sizes)

Literature for download
