Main Product Features
Stainless steel end suction pumps
DWO

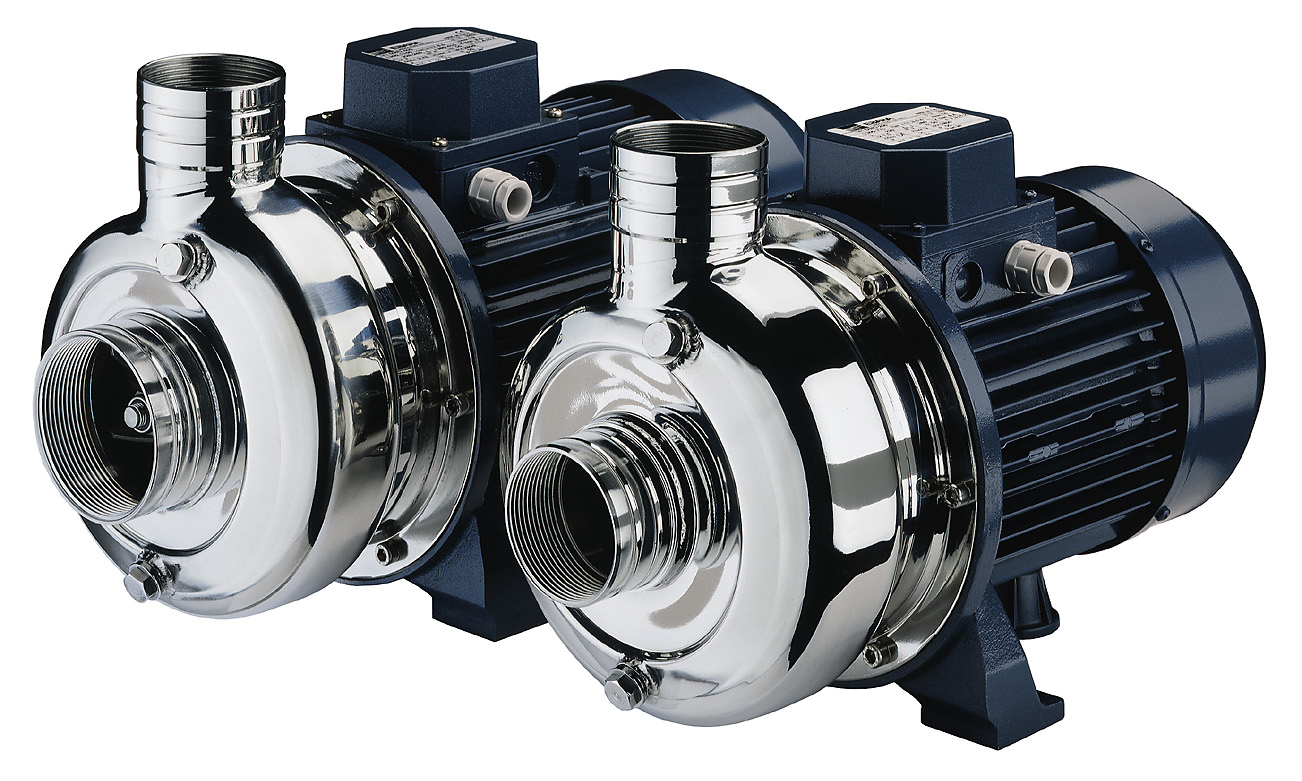

DWO is an open impeller centrifugal pump in 304 stainless steel. The pump construction is a Monoblock type with an extended shaft motor.
High efficiency
Solid handling
Compact design
Made in Italy |
Key Features

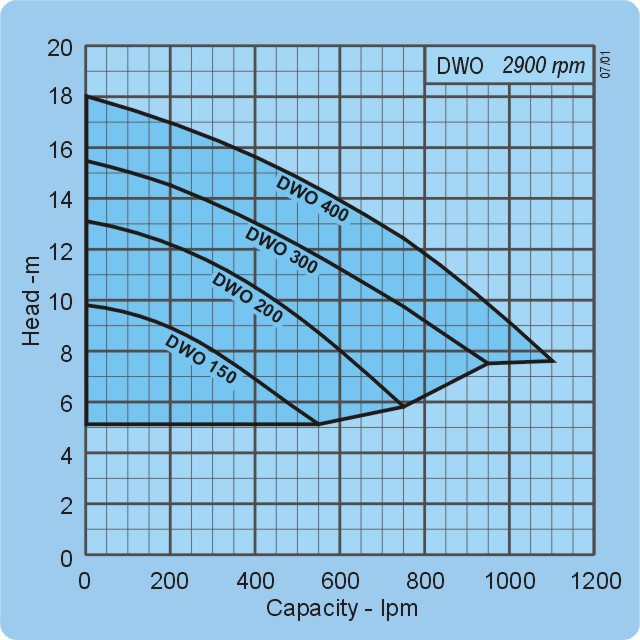

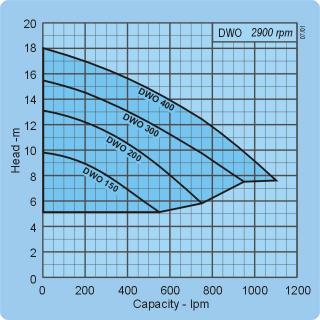

Selection Chart
50 Hz
Specifications
| Operating range | |
| Flow rate | up to 66 m3/h |
| Total head | up to 18 m |
| Max. working pressure | 8 bar |
| Max. liquid temperature | -5°C to +90°C -15°C to +110°C (with Viton elastomers) |
| Outlet size | G 2” |
| Pump material | |
| Casing | Stainless Steel 304 |
| Impeller | Stainless Steel 304 |
| Shaft | Stainless steel 303 (wetted parts) |
| Mechanical seal | Standard: Carbon/Ceramic/NBR Option: - High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings - Hard faced seal with SiC/SiC/Viton seal & Viton O’ Rings |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 1.1 to 1.5 kW (1 ph) 1.1 to 3.0 kW (3 ph) |
| Efficiency | IE2 (1 ph) IE3 (3 ph) |
| Voltage | 230 ±10% (1 ph) 230/400 ±10% (3 ph) |
| Poles | 2 |
| Protection degree | IP55 |
| Insulation class | Class F (class B for temperature rise) |
Applications
- Clean-In-Place (CIP) in Food & Beverage
- Parts washing
- Bottle washing
- Scrubbers
- Paint plants
- Dirty liquid handling, evacuation and transfer
