Main Product Features
Cast iron end suction pumps

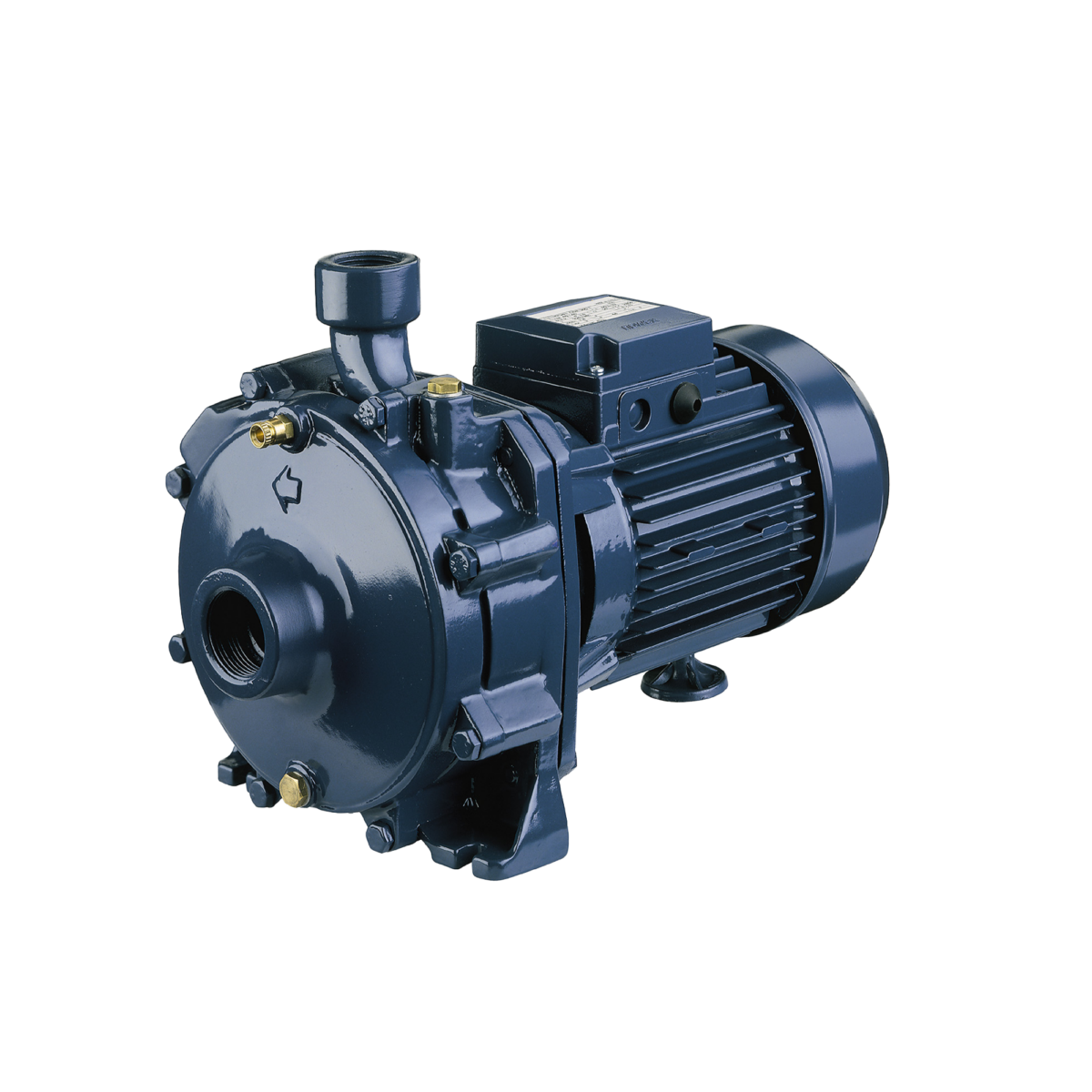

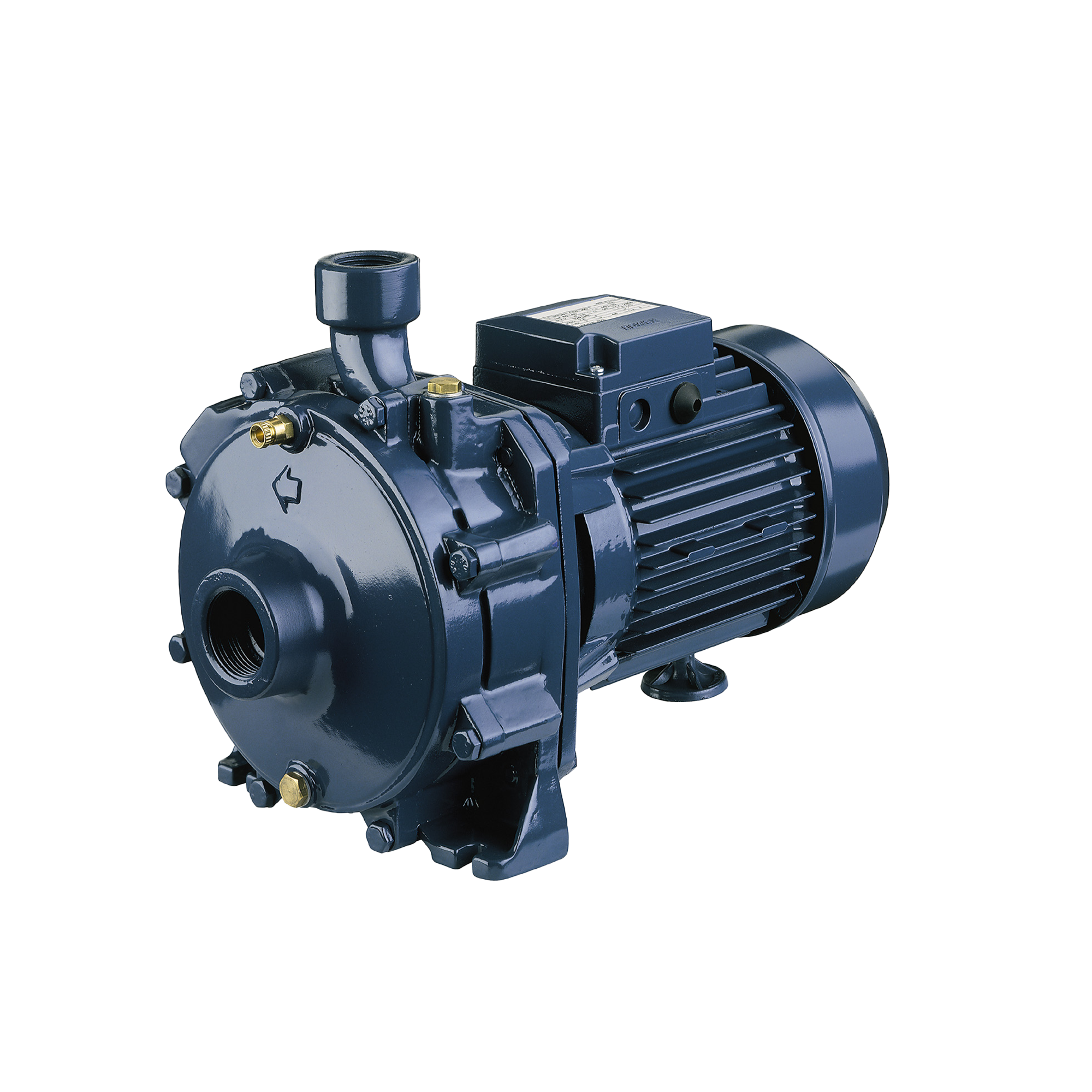

CDA
Twin-impeller centrifugal pumps with cast iron pump casings
A compact design with an extended shaft motor.
Compact design
Various materials for impellers
Made in Italy |

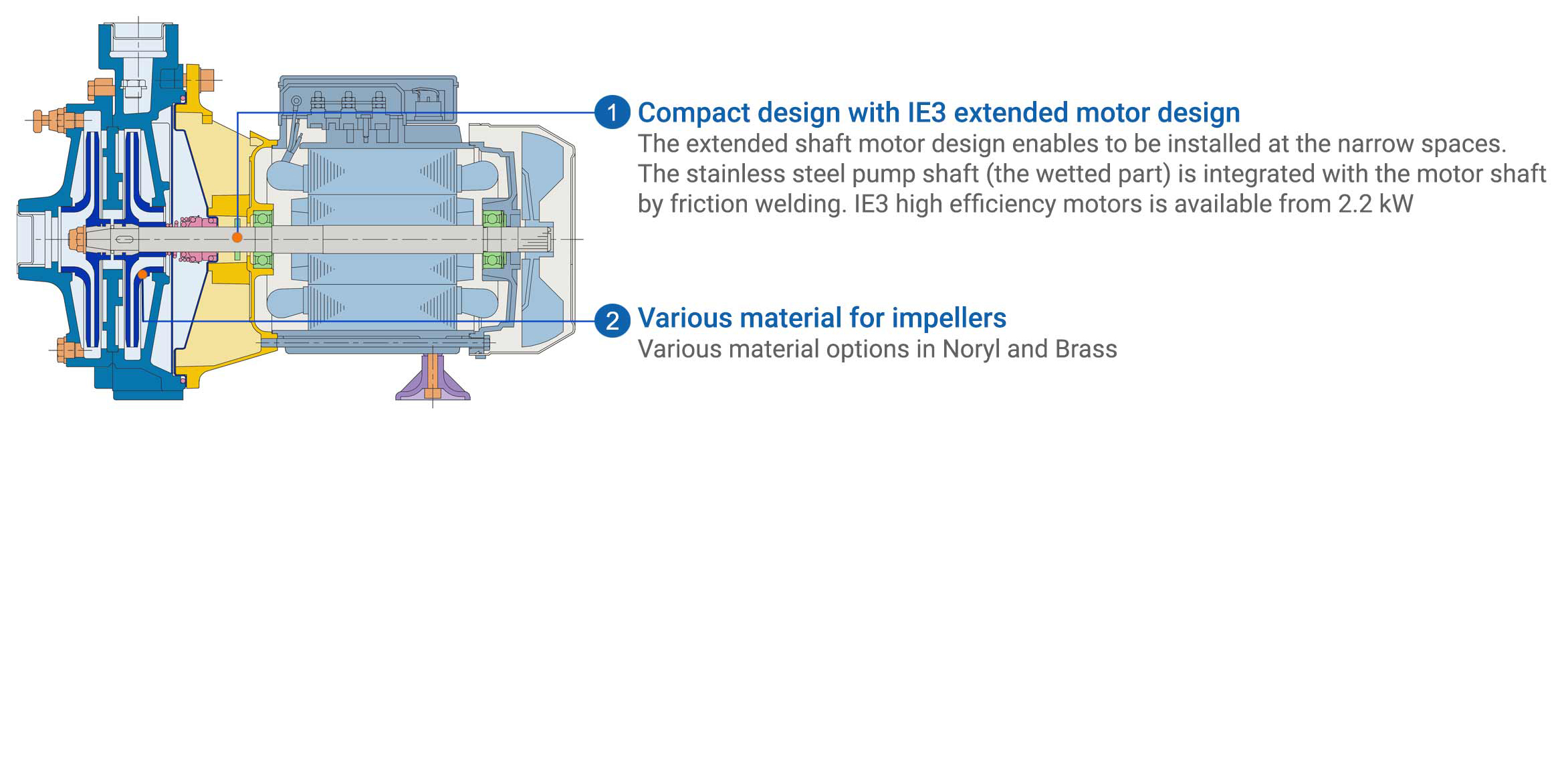

Key Features
Selection Chart
50 Hz
Specifications
| Operating range | |
| Flow rate | up to 110 l/min |
| Total head | up to 62 m |
| Max. working pressure | 10 bar |
| Max. liquid temperature | 40℃ for CDA 1.00 90℃ for CDA 1.50/2.00 |
| Outlet size | G1” for CDA 1.00 G1¼” for CDA 1.50/2.00 |
| Pump material | |
| Casing | Cast Iron |
| Impeller | PPE + PS Glass Fibre for CDA 1.00 Brass for CDA 1.50/2.00 |
| Shaft | AISI 303 |
| Mechanical seal | Carbon/Ceramic/NBR |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 0.75 to 1.5 kW (1 ph) |
| Efficiency | IE2 (1 ph) |
| Voltage | 230 ±10% |
| Poles | 2 |
| Protection degree | IP44 |
| Insulation class | Class F (class B for temperature rise) |
Applications
- Handling of non-aggressive liquids for civil and industrial use
- Washing systems and vehicle washing
- Domestic pressurization
- Small-scale garden irrigation
