Home Surface Pumps Stainless steel end suction pumps CDX
Stainless steel end suction pumps

CDX

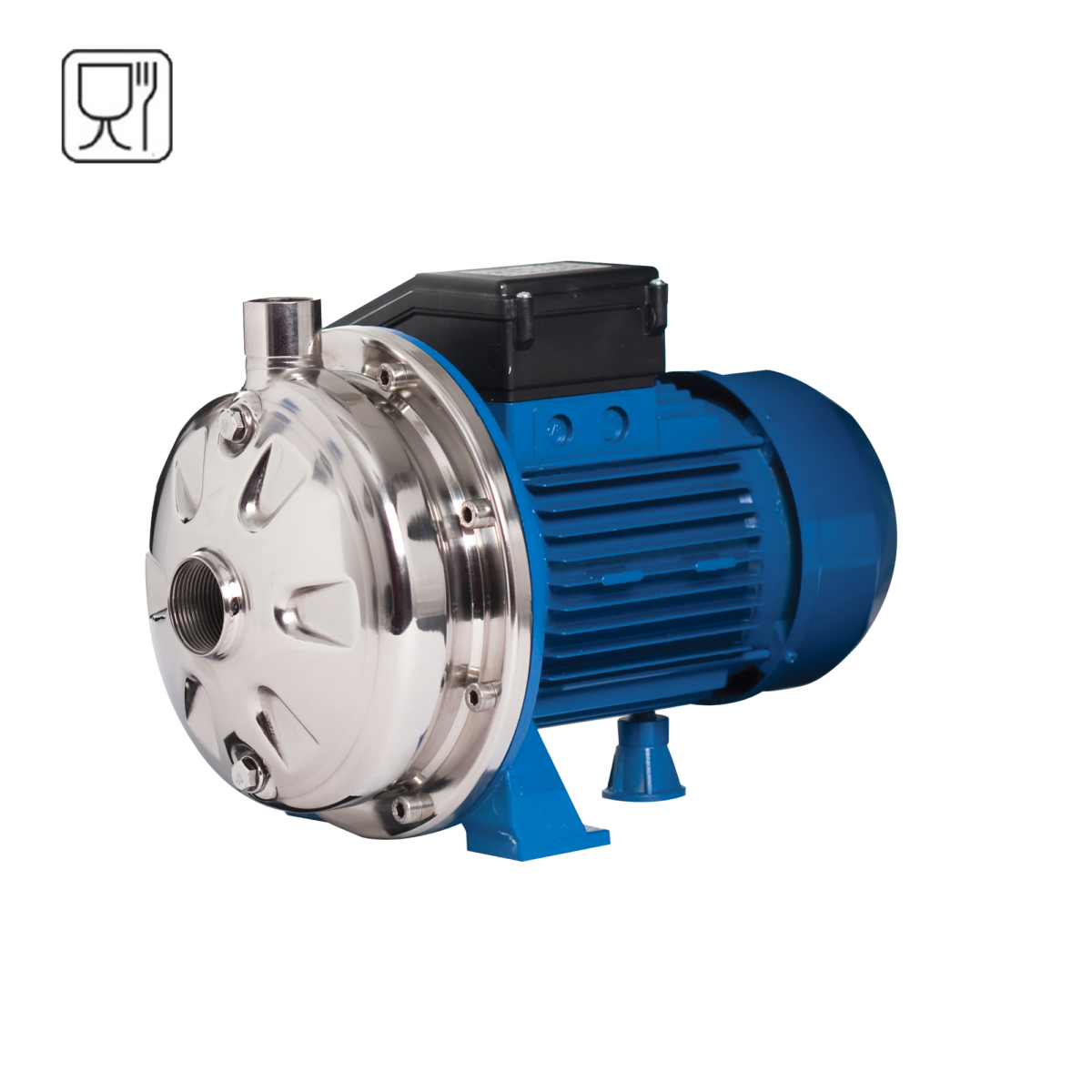

CDX is a single stage centrifugal pump with a closed impeller in 304 stainless steel.

The pump construction is a monoblock type with an extended shaft motor.

Product Feature Icon

Energy saving MEI>0.4

Product Feature Icon

Compact design

Product Feature Icon

Made in Italy

  • Key Features
  • Selection Chart
  • Specifications
  • Applications
  • Downloads

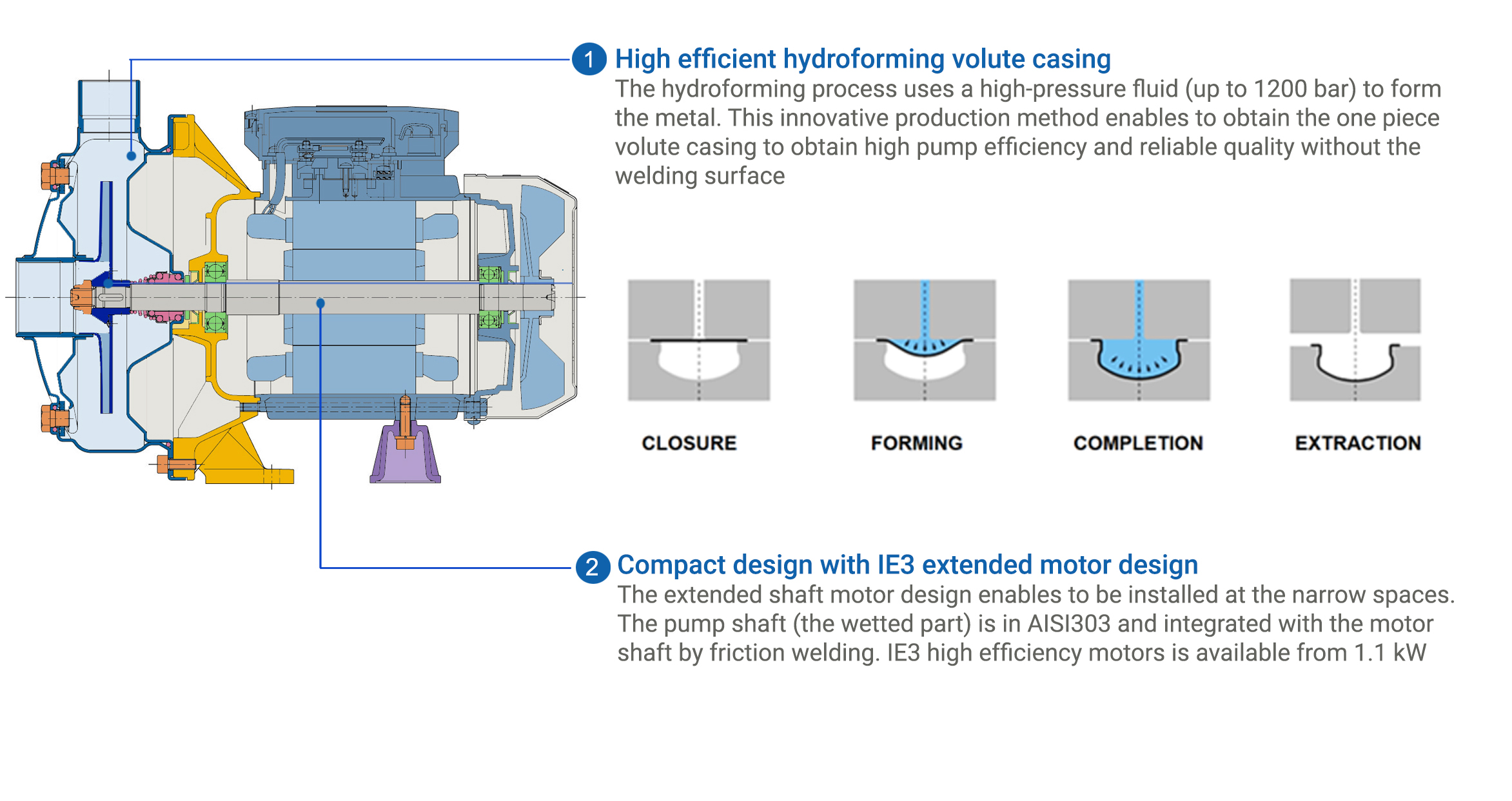

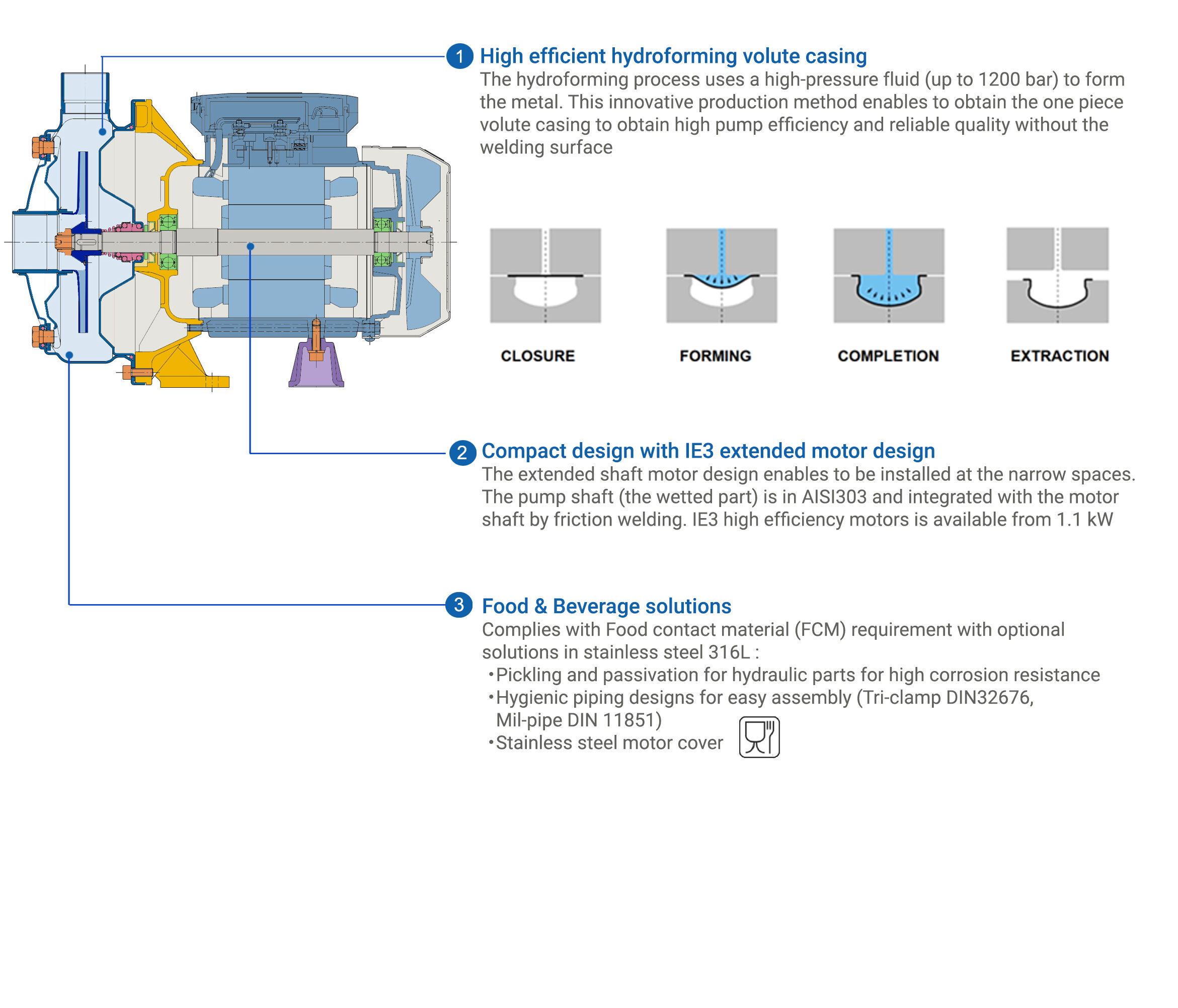

Key Features

Main Product Features

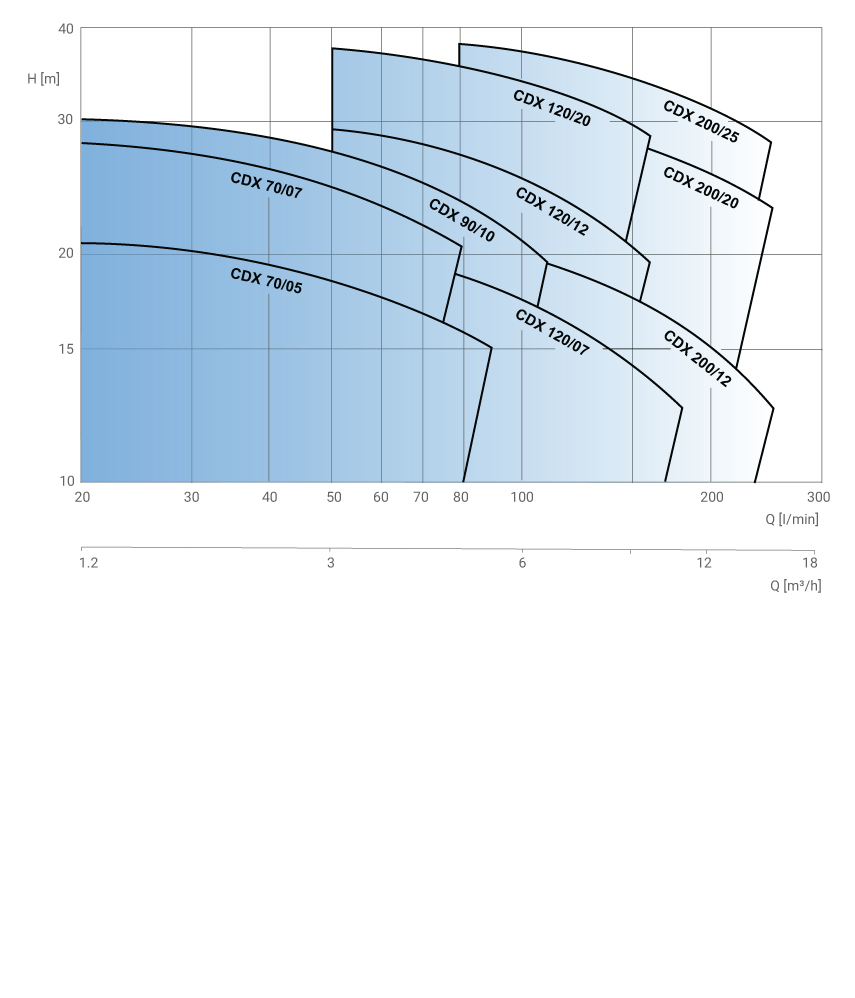

Selection Chart

50 Hz









Specifications

Operating range
Flow rateup to 15 m3/h
Total headup to 41 m
Max. working pressure8 bar
Max. liquid temperature-5 to 90℃ (60 ℃ for 70/05, 70/07 and 90/10)
-5 to 110℃ (with Viton elastomers)
Outlet sizeG 1”

Pump material
CasingStainless Steel 304
ImpellerStainless Steel 304
ShaftStainless steel 303 (wetted parts)
Mechanical sealStandard: Carbon/Ceramic/NBR
Option:
- High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings
- Hard faced seal with SiC/SiC/Viton seal & Viton O’ Rings

Motor
Frequency50 Hz
Power rating0.37 to 1.5 kW (1 ph)
0.37 to 1.8 kW (3 ph)
Effciency IE2 (1 ph)
IE3 (3 ph)
Voltage230 ±10% (1 ph)
230/400 ±10% (3 ph)
Poles2
Protection degreeIP55
Insulation classClass F (class B for temperature rise)



Applications

・Heating, ventilation, air-conditioning and cooling

  • Handling of refrigerant for cooling
  • Washing plants
  • Membrane filtration
  • Cooling towers
  • Handling of clean water in general

  • Domestic pressurization
  • Small-scale garden irrigation



Downloads
  • Data sheet CDX (CDX)
  • General instruction manual CDX (CDX)
  • Instruction manual CDX,2CDX,DWO,CM,CD (2CDX)
  • Technical data CDX (CDX)
