Main Product Features

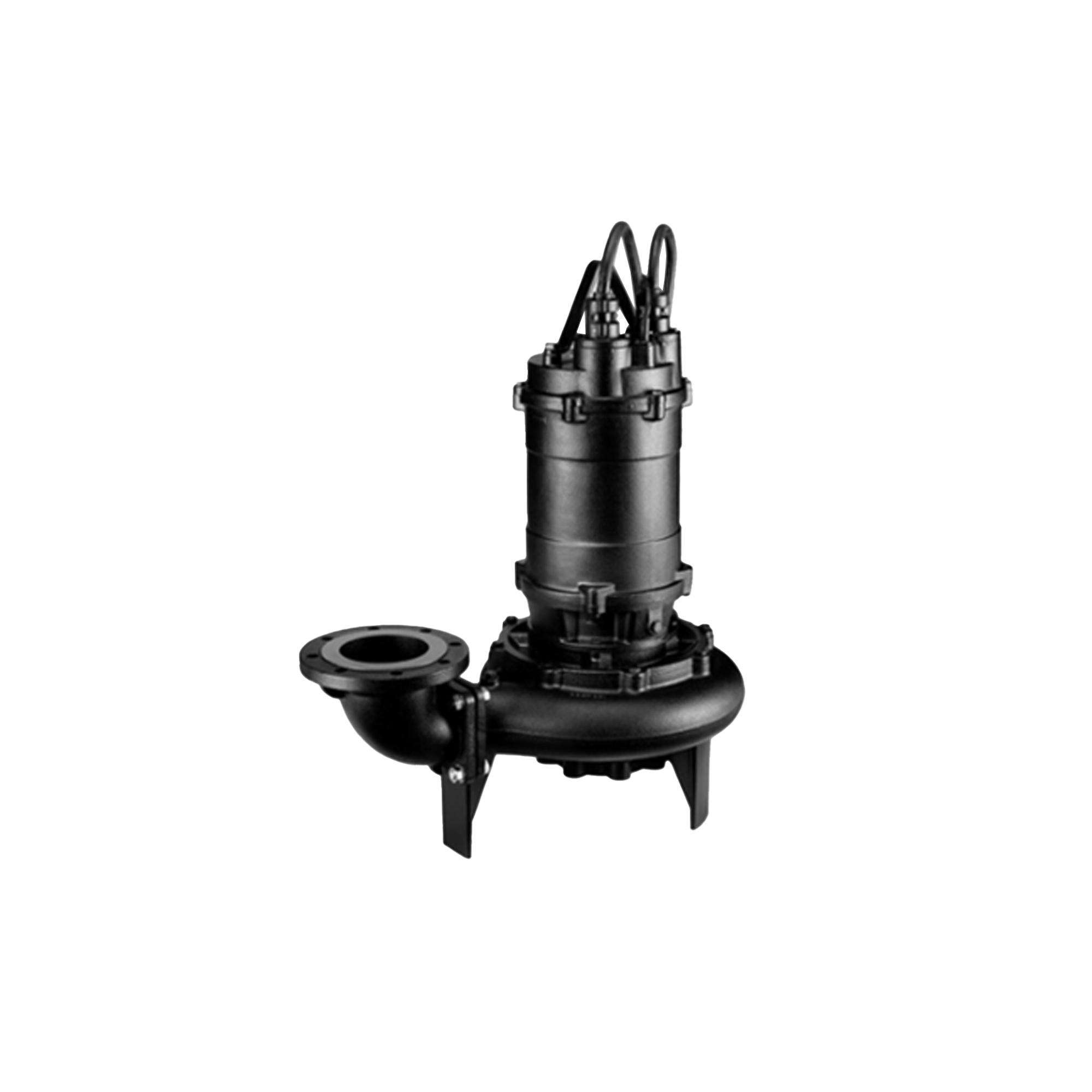

Submersible sewage pump in robust cast iron construction with single channel impeller suitable for sewage, waste -water and storm water drainage.
Max solid diameter : 76 mm
|

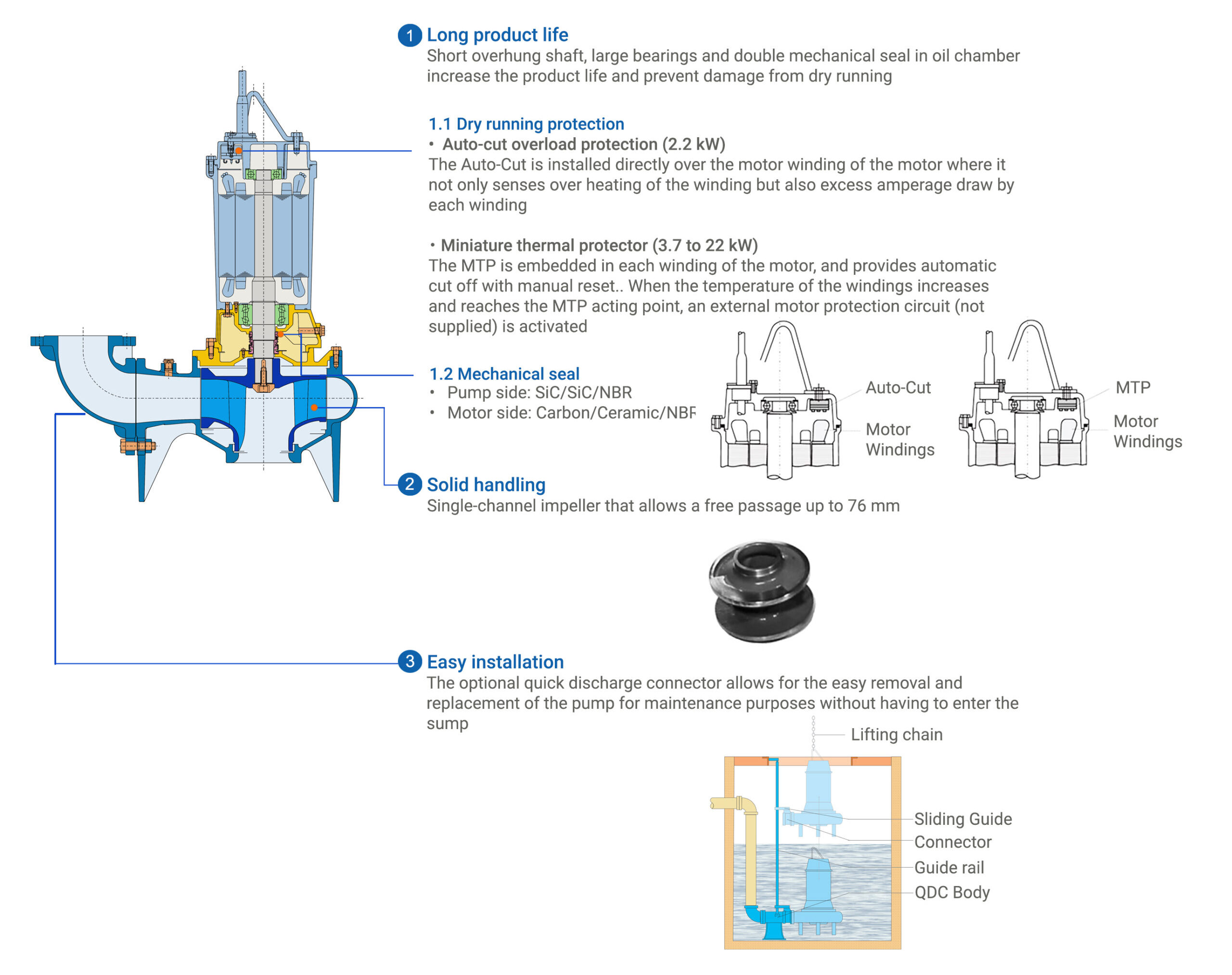

Long product life
Solid handling Discharge elbow kit included Quick discharge connector as option |

| Model |
DML 52.2 – Pump only ,DML 53.7 – Pump only ,DML 55.5 – Pump only ,DML 57.5 – Pump only ,DML 511 – Pump only ,DML 515 – Pump only ,DML 522 – Pump only ,80×80 Elbow (suits Pump DML 52.2 and DML 53.7) ,80×100 Elbow (suits Pump DML 53.7) ,100×80 Elbow (suits Pump DML 55.5 – 522) ,100×100 Elbow (suits Pump DML 55.5 – 522) ,100×150 Elbow (suits Pump DML 55.5 – 522) ,LL 80 (suits 100 DML 53.7 (option)) ,LM 80 (suits 80 DML 52.2 & 53.7 – 100 DML 53.7 | 80 DMLV 52.2 & 53.7 | 80 DF 51.5, 52.2, 53.7 | 80 DS 53.7) ,LL 100 (suits DML models 5.5 to 22 | 100 DMLV 55.5 to 522 | 100 DS 55.5 & 57.5) ,80 mm ⌀ Flygt Adaptor (suits DML 52.2 & 53.7 | 80 DMLV 52.2 & 53.7 | 80 DS 53.7 | 80 DF 51.5, 52.2, 53.7) ,100 mm ⌀ Flygt Adaptor (suits DML 55.5 to 522 | 100 DMLV 55.5 to 522 | 100 DS 55.5 & 57.5) |
|---|

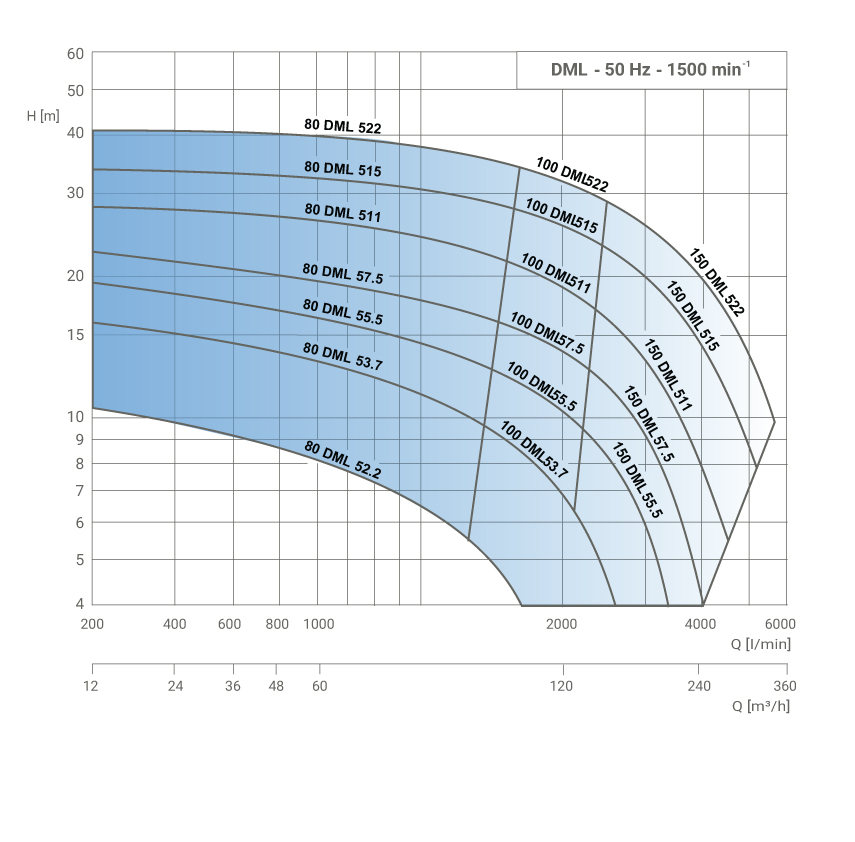

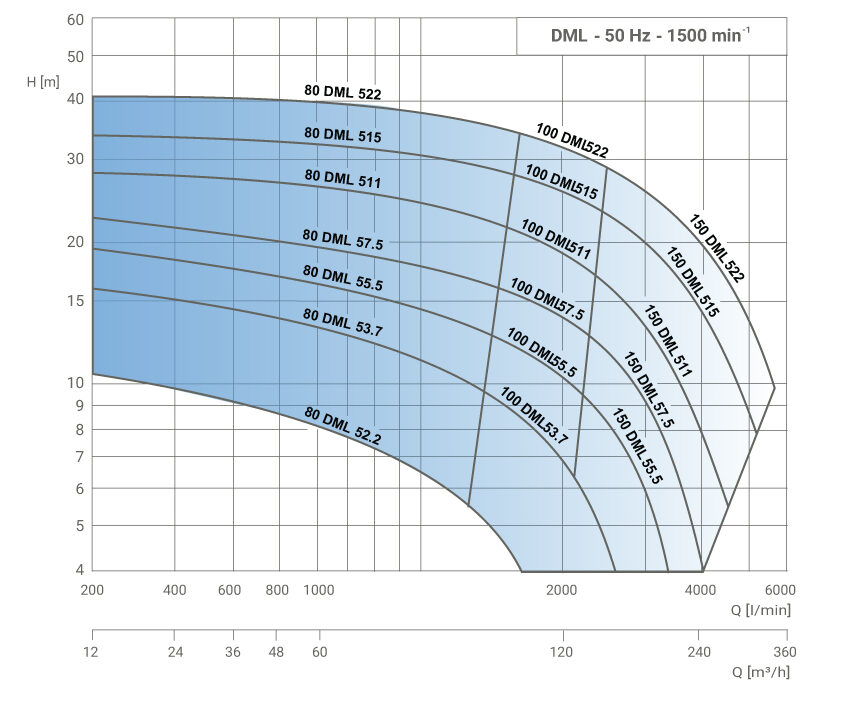

| Operating range | |
| Flow rate | up to 5,360 l/min |
| Total head | up to 40 m |
| Max. liquid temperature | 40°C |
| Max solid size | 76 mm |
| Max submergence | 8 m |
| Outlet size | 80 to 150 mm |
| Pump material | |
| Casing | Cast Iron |
| Impeller | Cast Iron |
| Shaft | Stainless steel 403 |
| Mechanical seal | ・SiC/SiC/NBR (Lower Faces) ・Carbon/Ceramic/NBR (Upper Faces) |
| Lubricating liquid | Turbine oil VG32 (SAE 10W/20W) |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 2.2 to 22 kW |
| No. of Poles | 4 |
| Voltage | 380/400/415 ±10% (3 ph) |
| Protection degree | IP58 |
| Insulation class | Class F |
![]()
![]()
