Stainless steel end suction pumps

DWO

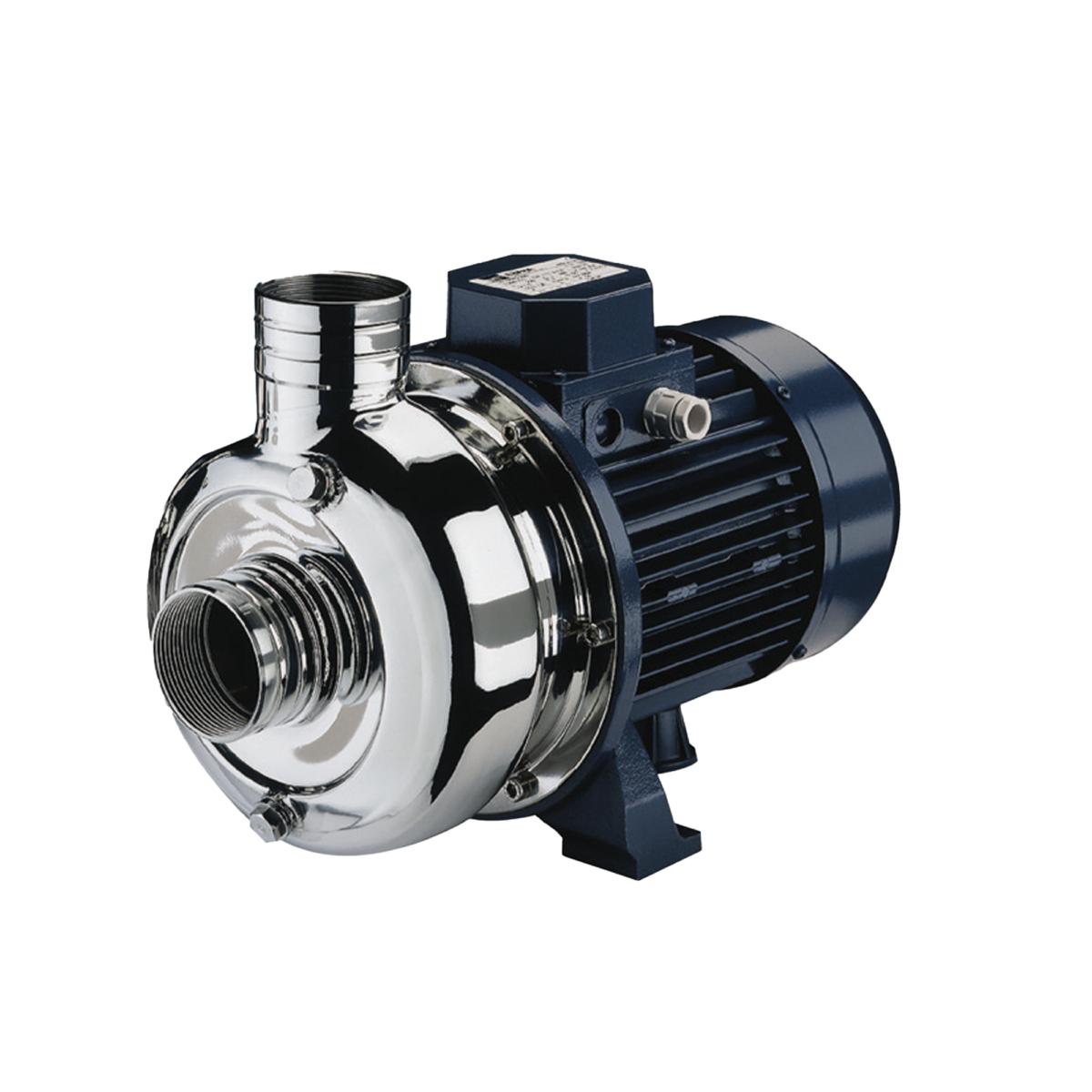

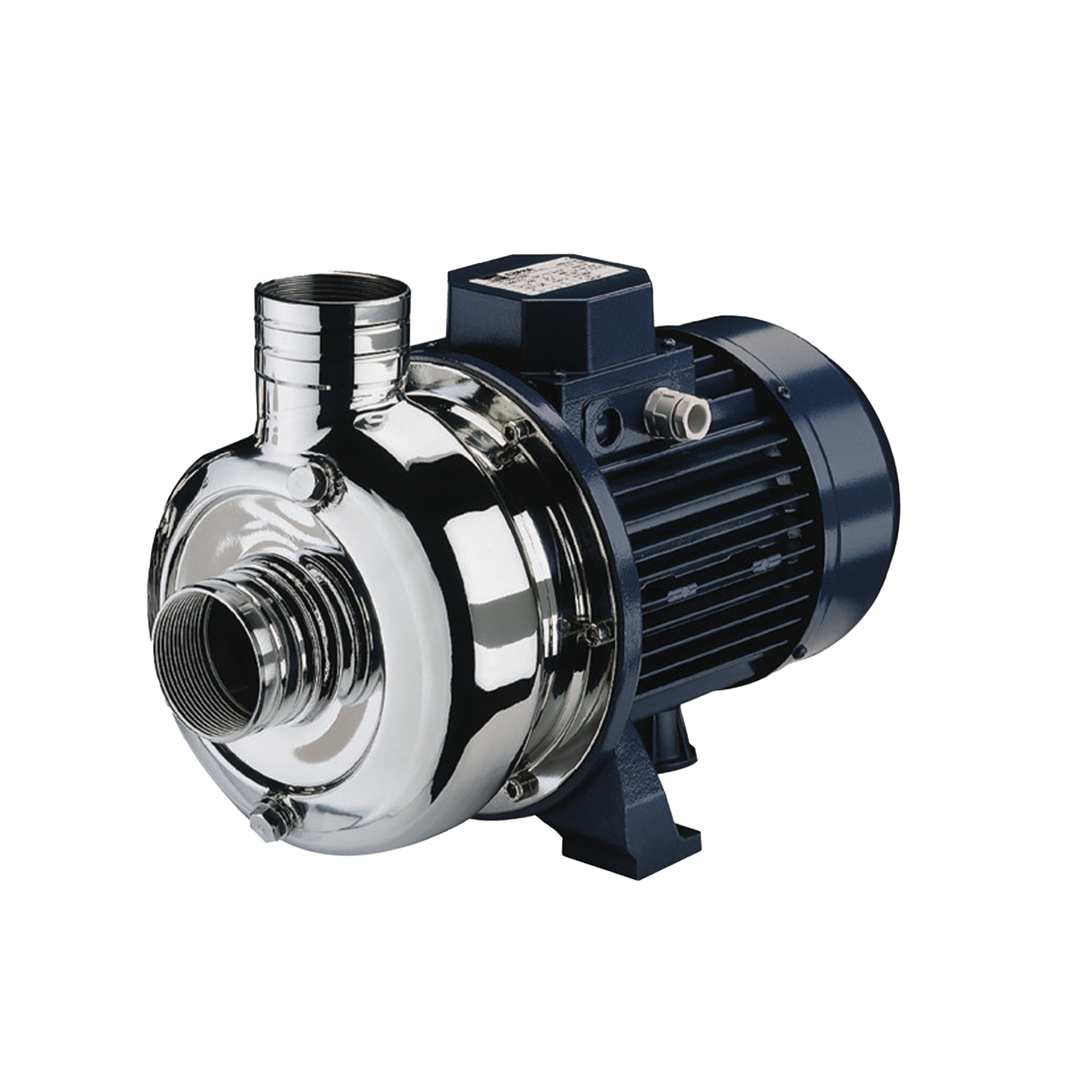

DWO is an open impeller centrifugal pump in 304 stainless steel. The pump construction is a Monoblock type with an extended shaft motor.

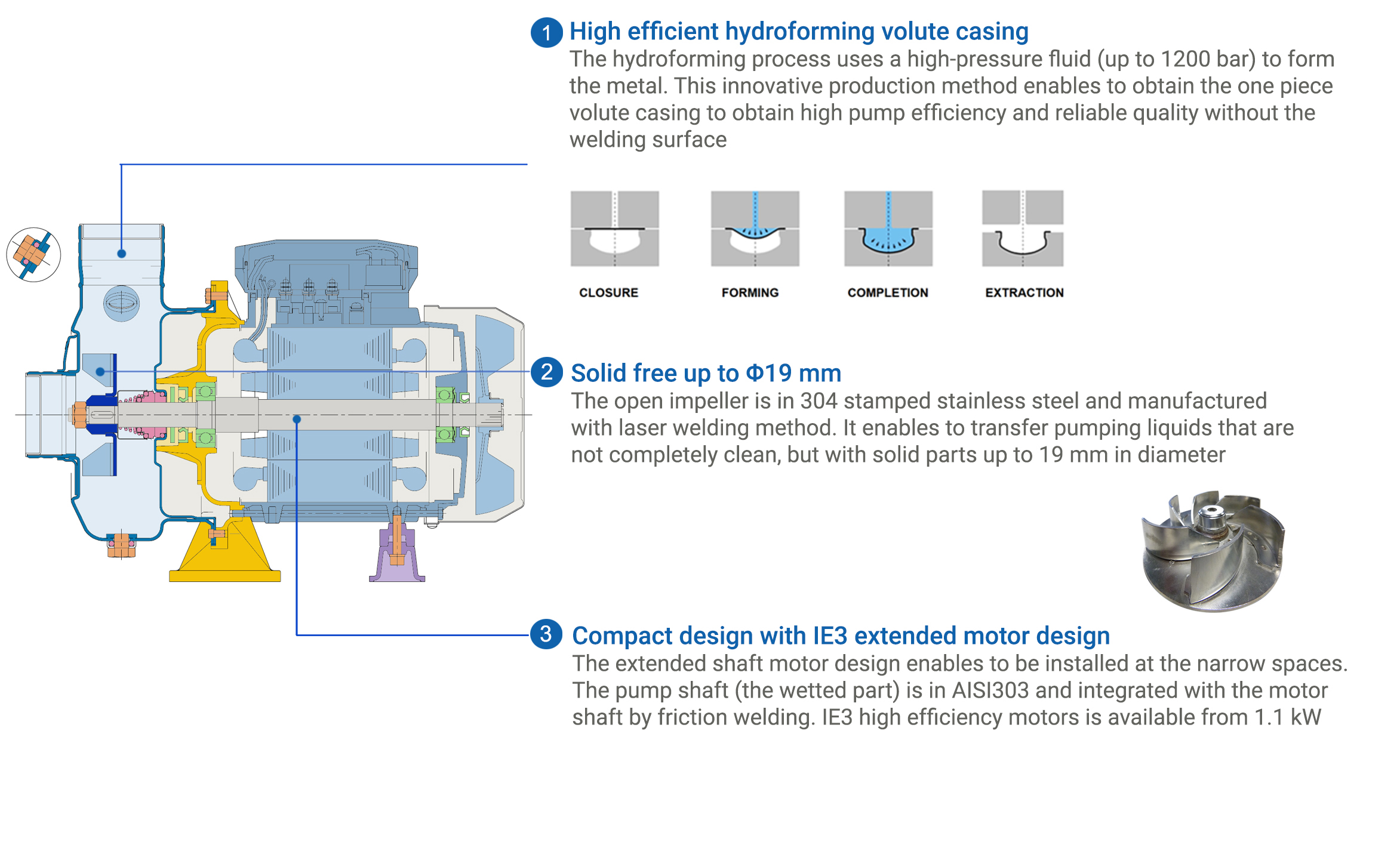

Key Features

Main Product Features

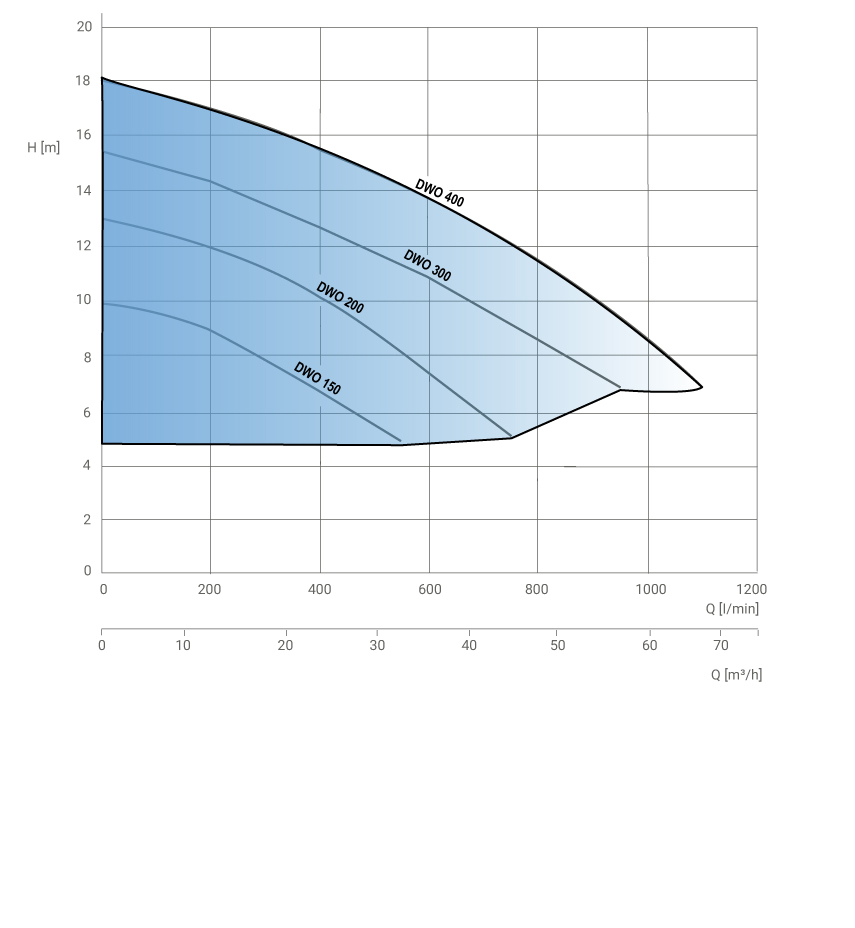

Selection Chart

50 Hz









Specifications

Operating range
Flow rateup to 66 m3/h
Total headup to 18 m
Max. working pressure8 bar
Max. liquid temperature-5°C to +90°C
-15°C to +110°C (with Viton elastomers)
Outlet sizeG 2”

Pump material
CasingStainless Steel 304
ImpellerStainless Steel 304
ShaftStainless steel 303 (wetted parts)
Mechanical sealStandard: Carbon/Ceramic/NBR
Option:
- High temperature seal (110 °C) wih Carbon/Ceramic/Viton seal & Viton O Rings
- Hard faced seal with SiC/SiC/Viton seal & Viton O’ Rings

Motor
Frequency50 Hz
Power rating1.1 to 1.5 kW (1 ph)
1.1 to 3.0 kW (3 ph)
Effciency IE2 (1 ph)
IE3 (3 ph)
Voltage230 ±10% (1 ph)
230/400 ±10% (3 ph)
Poles2
Protection degreeIP55
Insulation classClass F (class B for temperature rise)



Applications

  • Clean-In-Place (CIP) in Food & Beverage
  • Parts washing
  • Bottle washing
  • Scrubbers
  • Paint plants
  • Dirty liquid handling, evacuation and transfer
