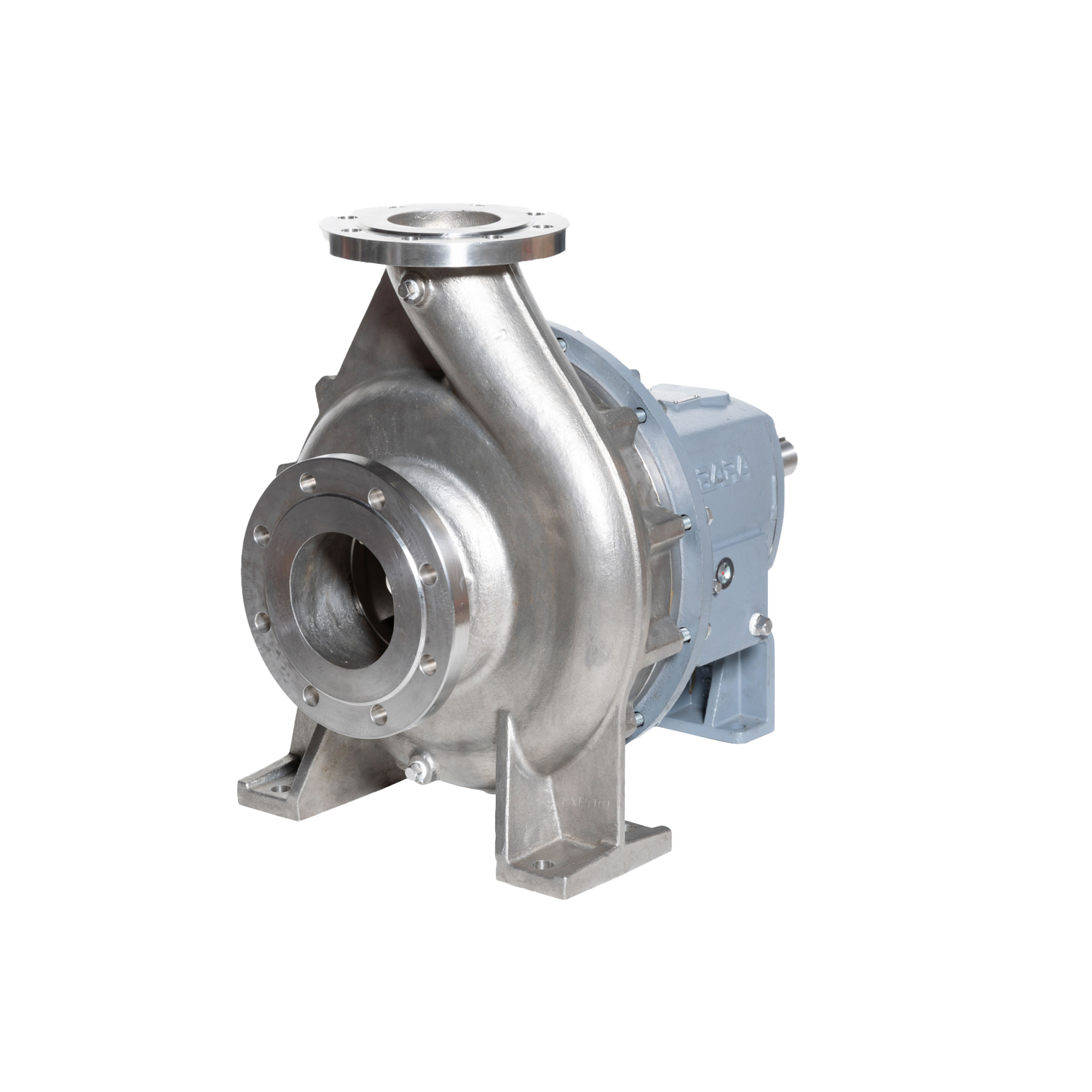

Stainless steel end suction pumps

GSO

Industrial process pumps standardized to ISO2858 / ISO5199 in various stainless steel options

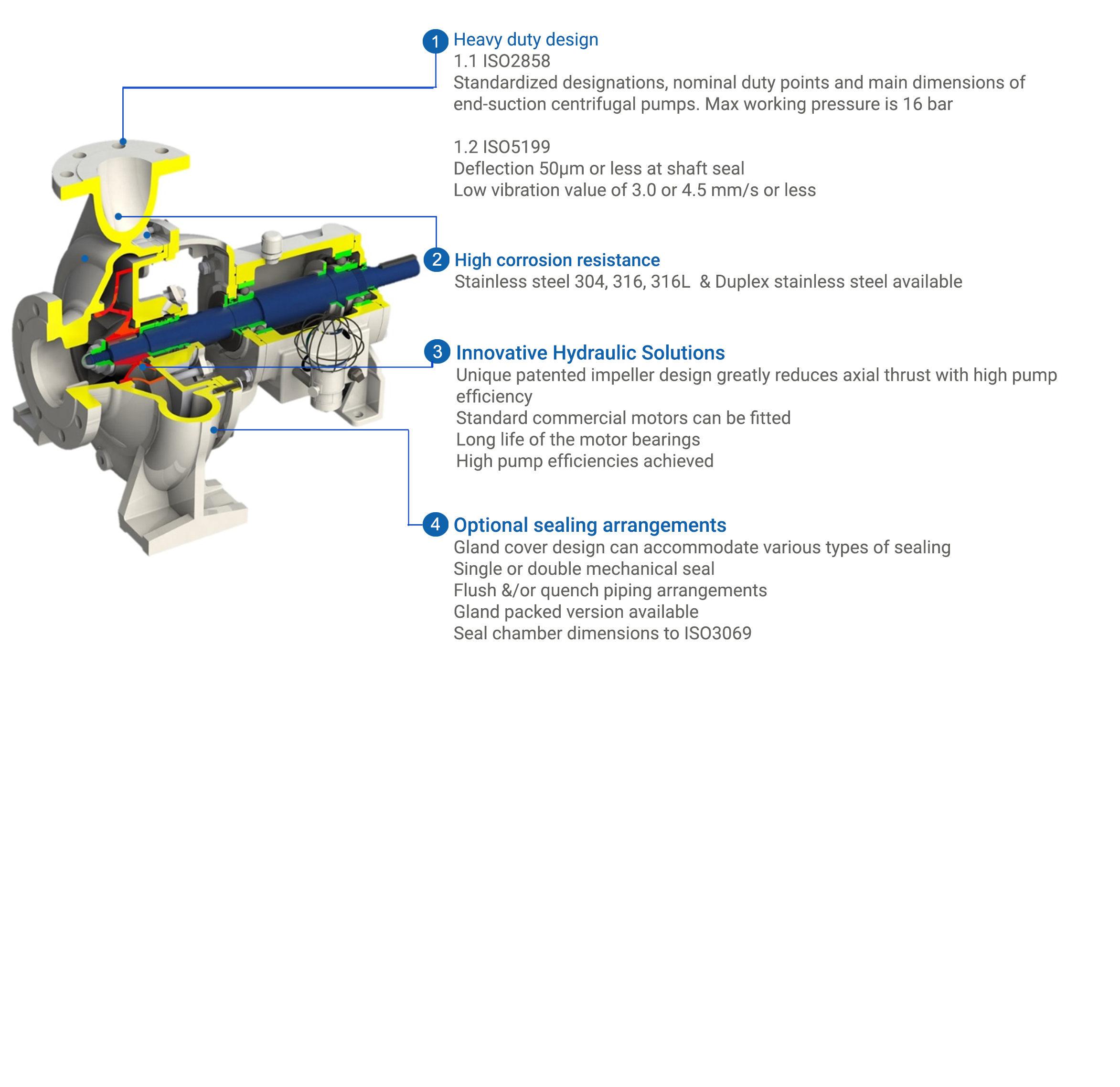

Key Features

Main Product Features

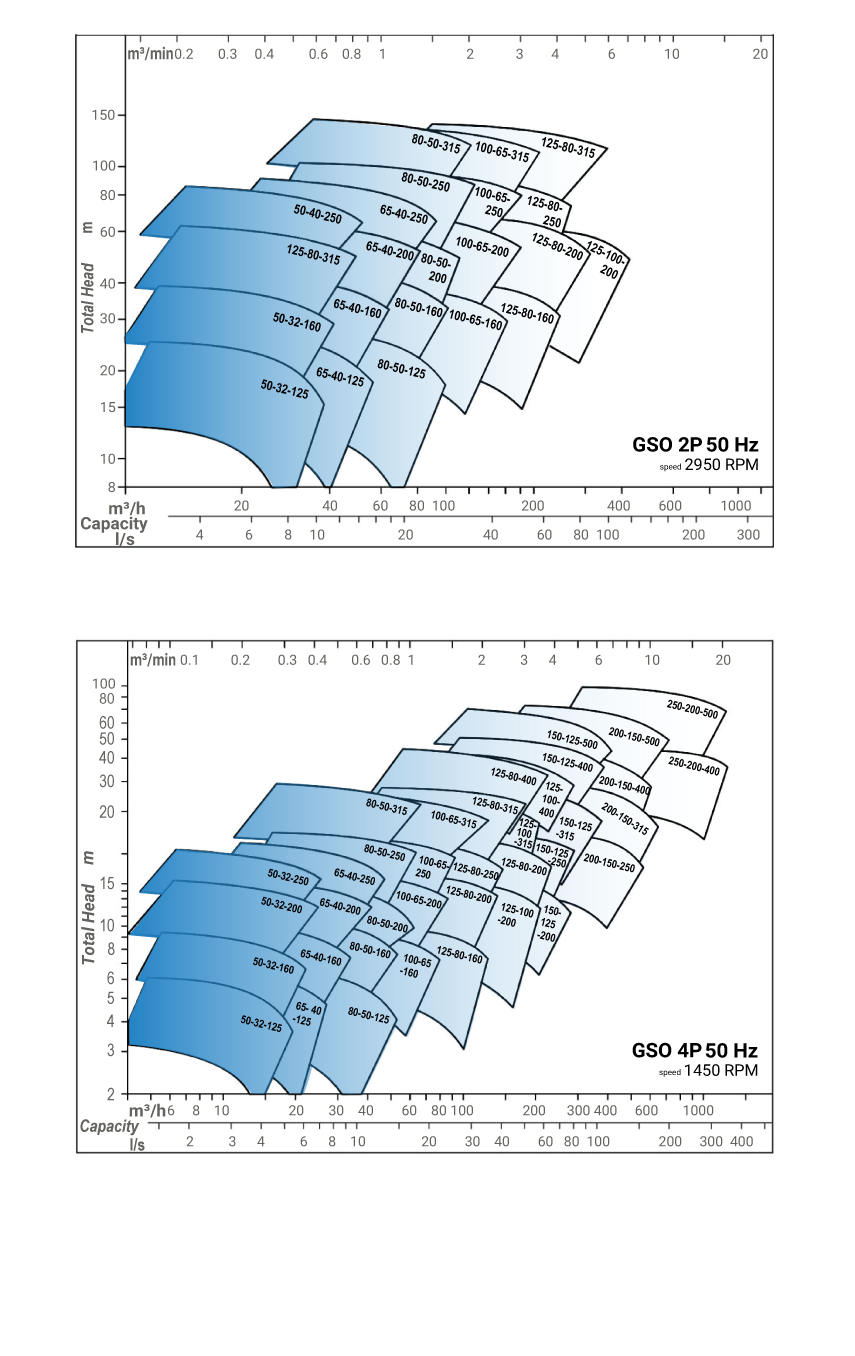

Selection Chart

50 Hz









Specifications

Operating range
Flow rateup to 1250 m³/h
Total headup to 150 m
Max. working pressure16 bar
Liquid temperature-30 to 150℃
Outlet size32 to 200 mm

Pump material
CasingStainless steel 304, 316
ImpellerStainless steel 304, 316
ShaftStainless steel 304, 316
Mechanical sealSiC/Carbon/FKM as standard
Options
(Contact us)		Stainless steel 316L & Duplex / Super duplex
Various seal options including double mech.seal
Quenching / External flushing
Spacer coupling
Oil bath
and more





Applications

  • Filtration process in water treatment plant
  • Starch, molasses and wort in food industrial process
  • Paper making process (Pulp pump 0.3% & below)
  • Acid and Alkali in Inorganic chemical industry
  • Petrochemical industry
  • Rolling facility (scale pit pump) and Plating facility in Steel industry

  • Brine liquid transfer in RO plants



Downloads
