Solid handling pumps

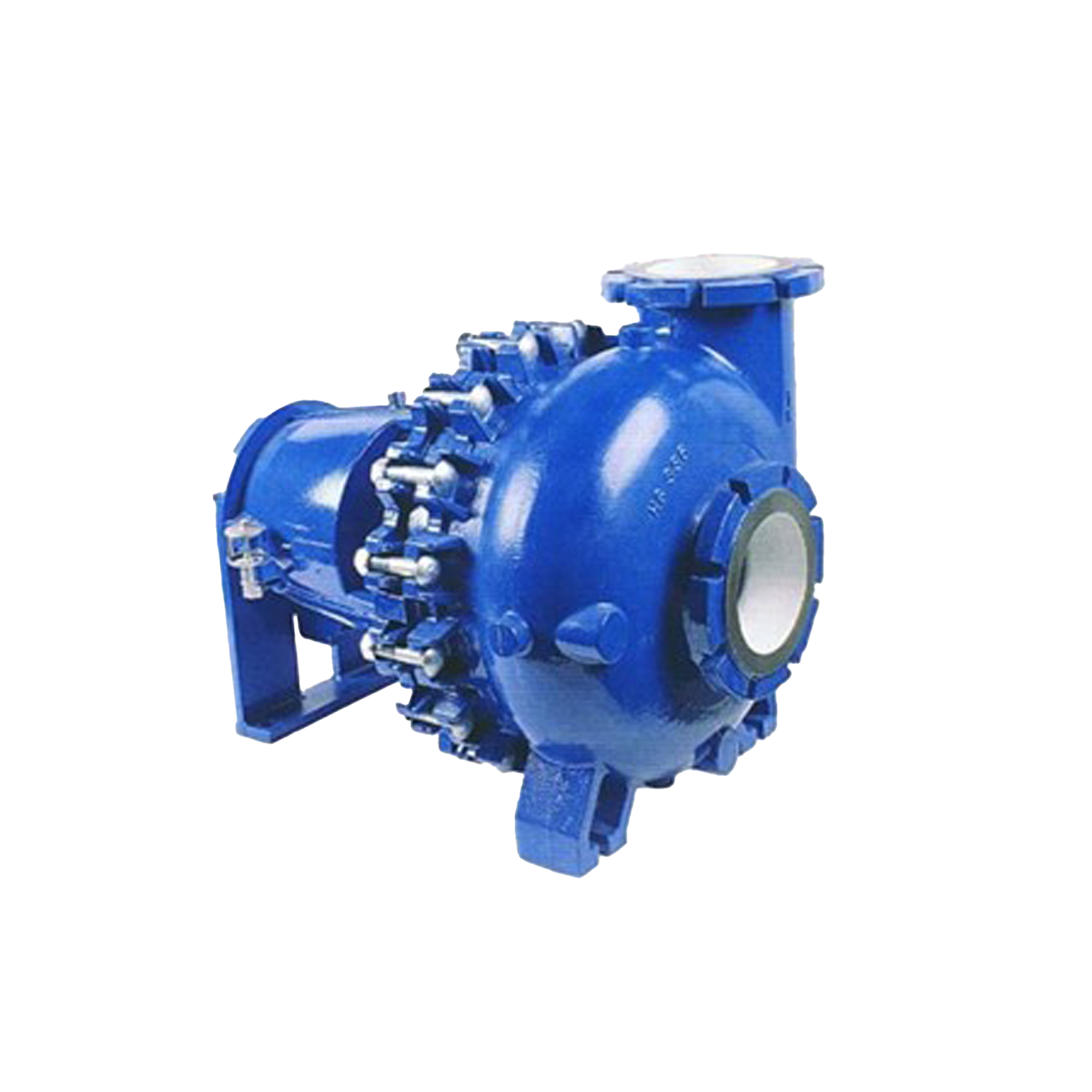

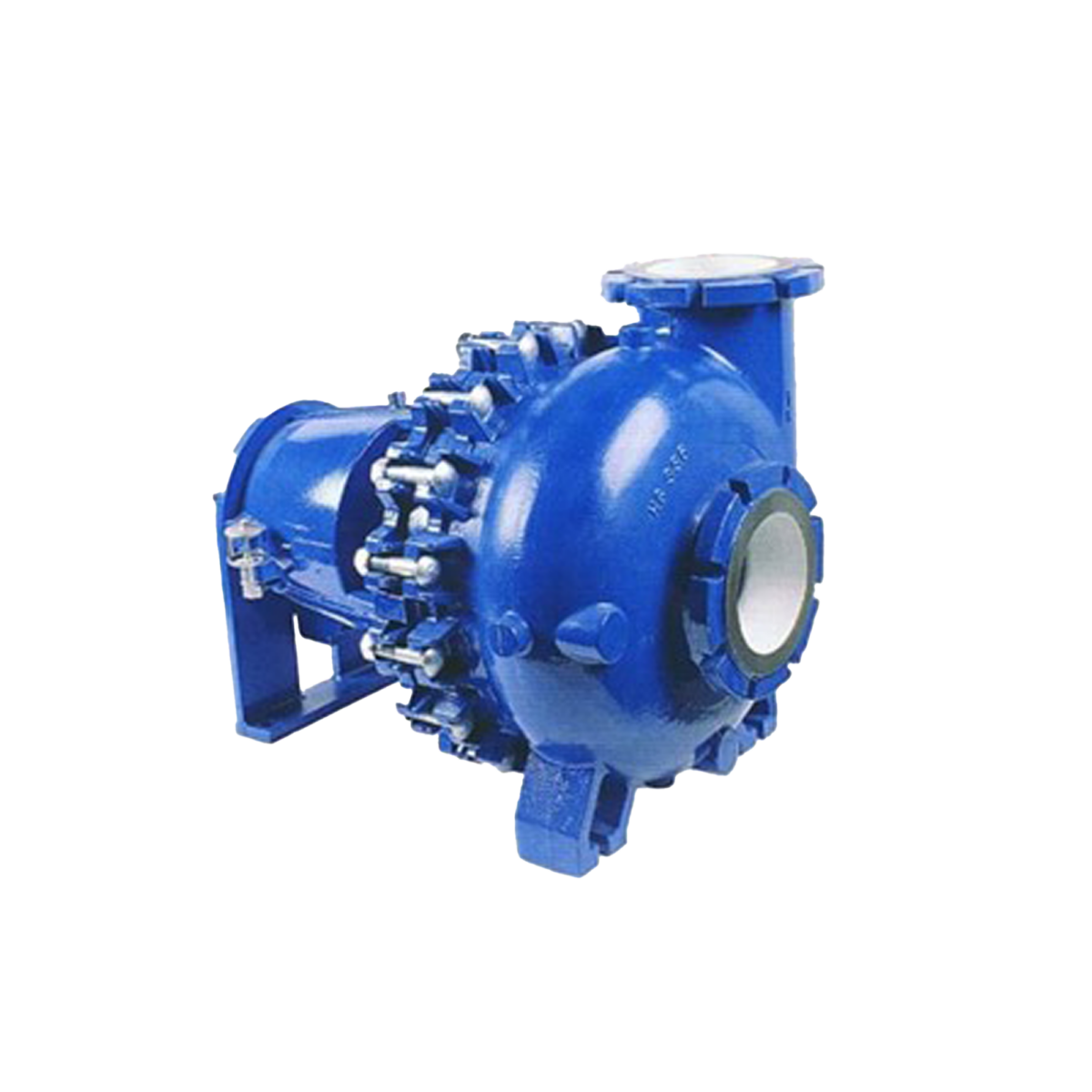

TORUS-Recessed impeller

Torus Recessed Impeller pump is a semi-open recessed impeller which uses approximately 15% of the fluid to create a vortex as it rotates

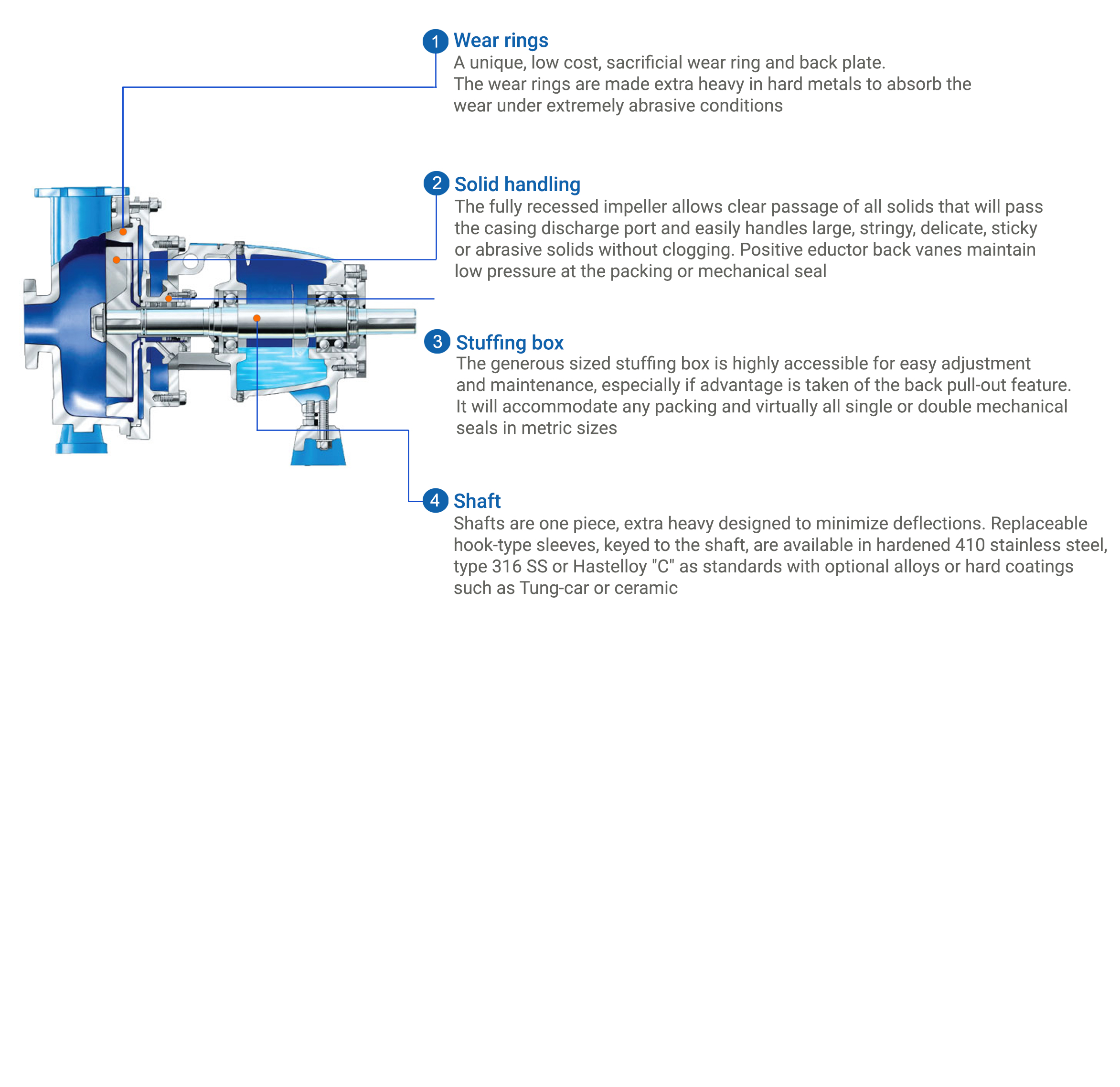

Key Features

Main Product Features

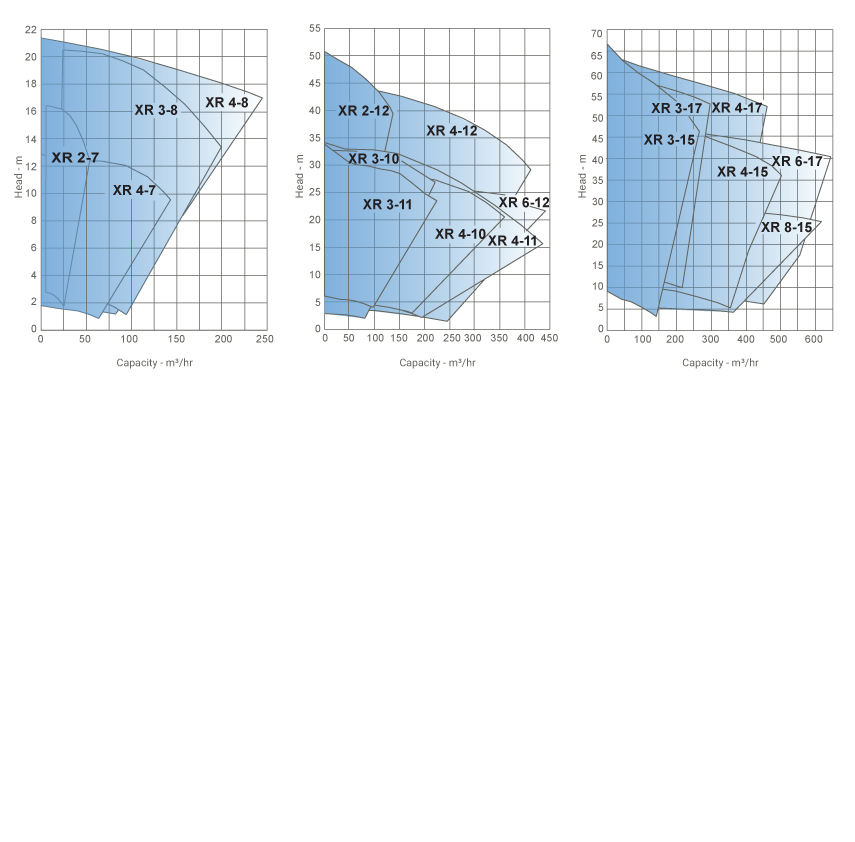

Selection Chart

50 Hz















Specifications

Operating range
Flow rateup to 600 m3/h
Total headup to 66.5 m
Outlet size50 to 200 mm

Pump material
Pump endCast Iron, 316 SS, Alloy 20, CD4MCu, 28% Chrome Iron, NiHard,
Super NiHard, 28% Chrome

Note
Model TORUS is the engineered product and various material options are available.
Please contact our sales team for pump sizing.

Applications

  • Mining
    • Tailings
    • Mill scale
    • Water and slag
    • Mill flotation circuits
    • Coal slurries
    • Thickener underflow
  • Pulp & Paper
    • Wood chips
    • Pulp rejects
    • Black liquor
    • Lime slurry
    • Paper stock
    • Aerated stock
    • Green liquor
    • Dreg sludges
  • Chemical
    • Crystal suspensions
    • Rubber crumb
    • Paint sludge
    • Plant sewage & sludge
    • Tannery fleshing
    • Fiber slurry
    • Flocculants
  • Food Processing & Agriculture
    • Potatoes in water
    • Fish offal
    • Bagasse
    • Liquid manure
    • Cherries
    • Bones
    • Vegetable refuse
    • Shrimp
    • Lime sludge
    • Chicken wastes
    • Corn cobs

  • Waste water treatment
    • Grit
    • Raw sludge
    • Digested sludge
    • Raw sewage
    • Rags
    • Scum
    • Activated sludge



Downloads

Related products

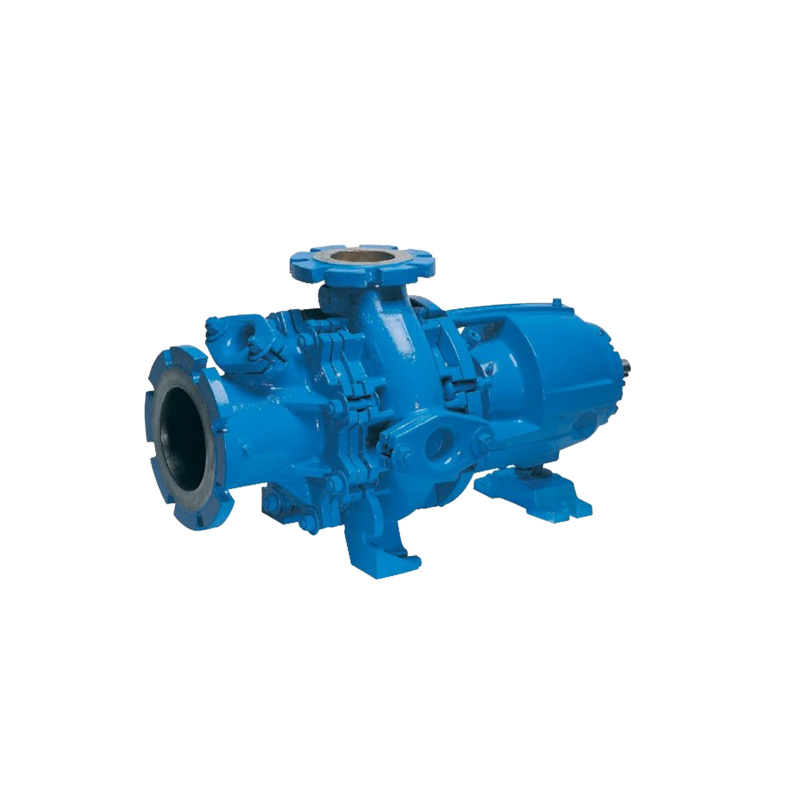

CHOPX-Chopper
