Main Product Features

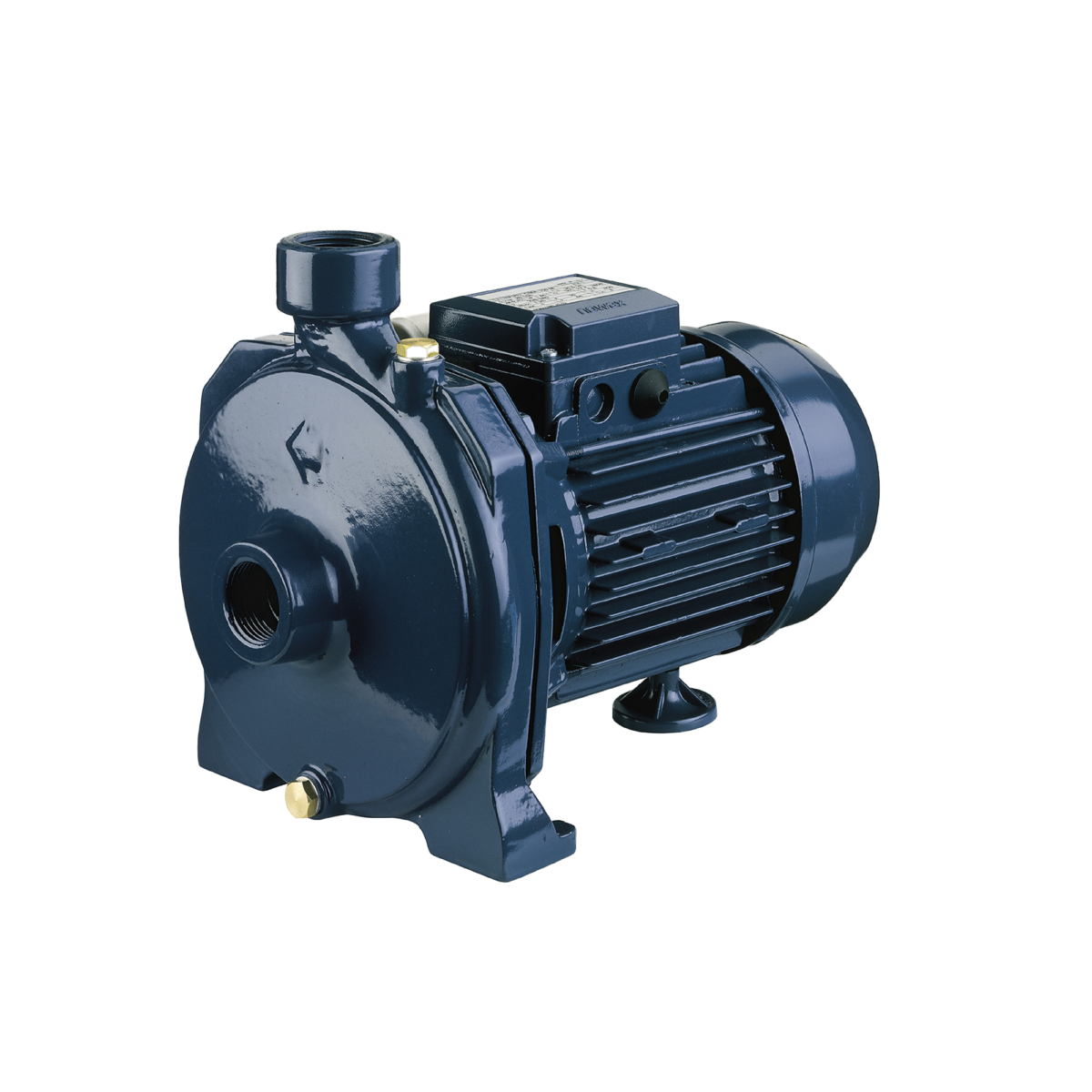

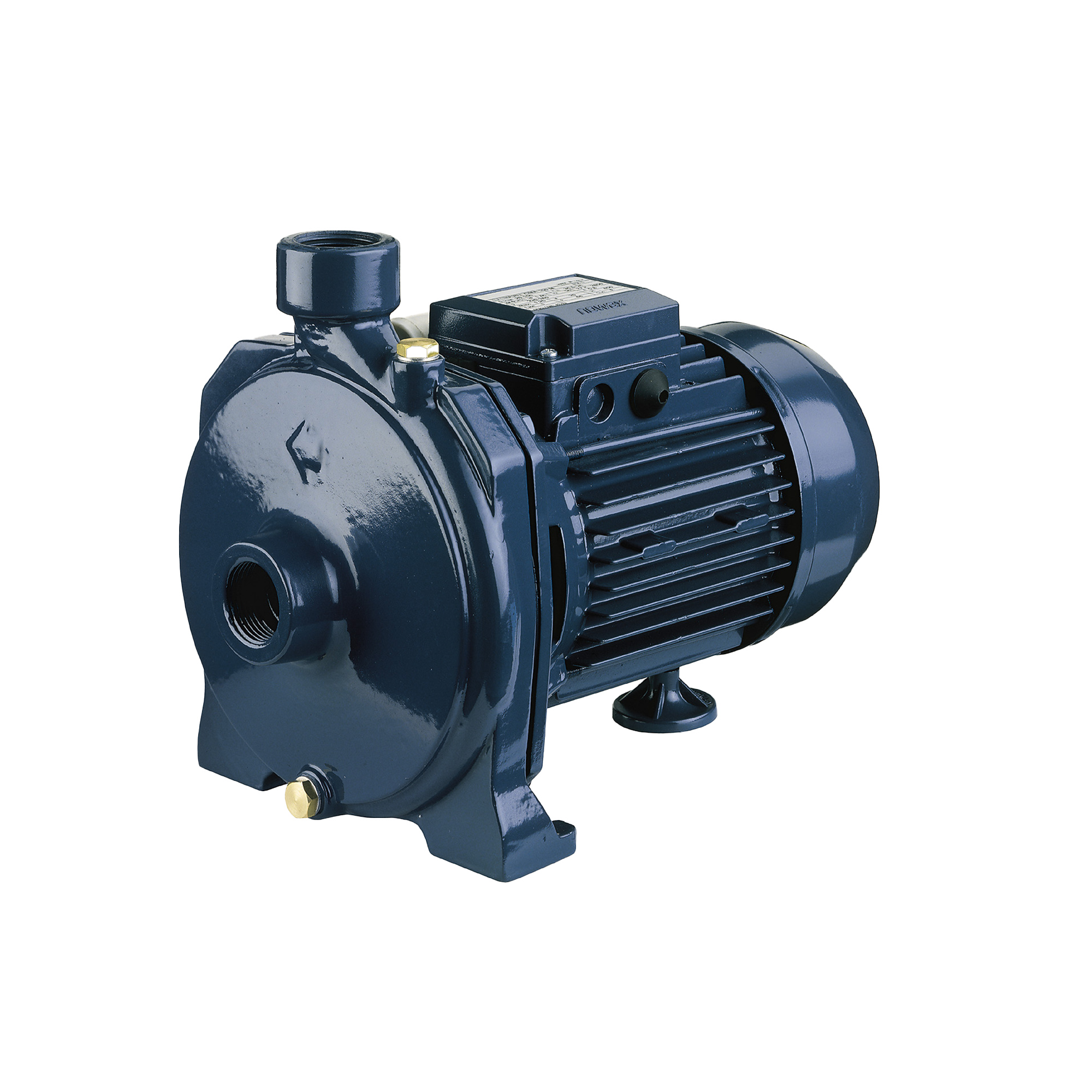

Cast iron end suction pumps
CMA/CMB
Single-impeller centrifugal pumps with cast iron pump casings.
A compact design with an extended shaft motor.
Compact design
Various materials for impellers
Made in Italy |

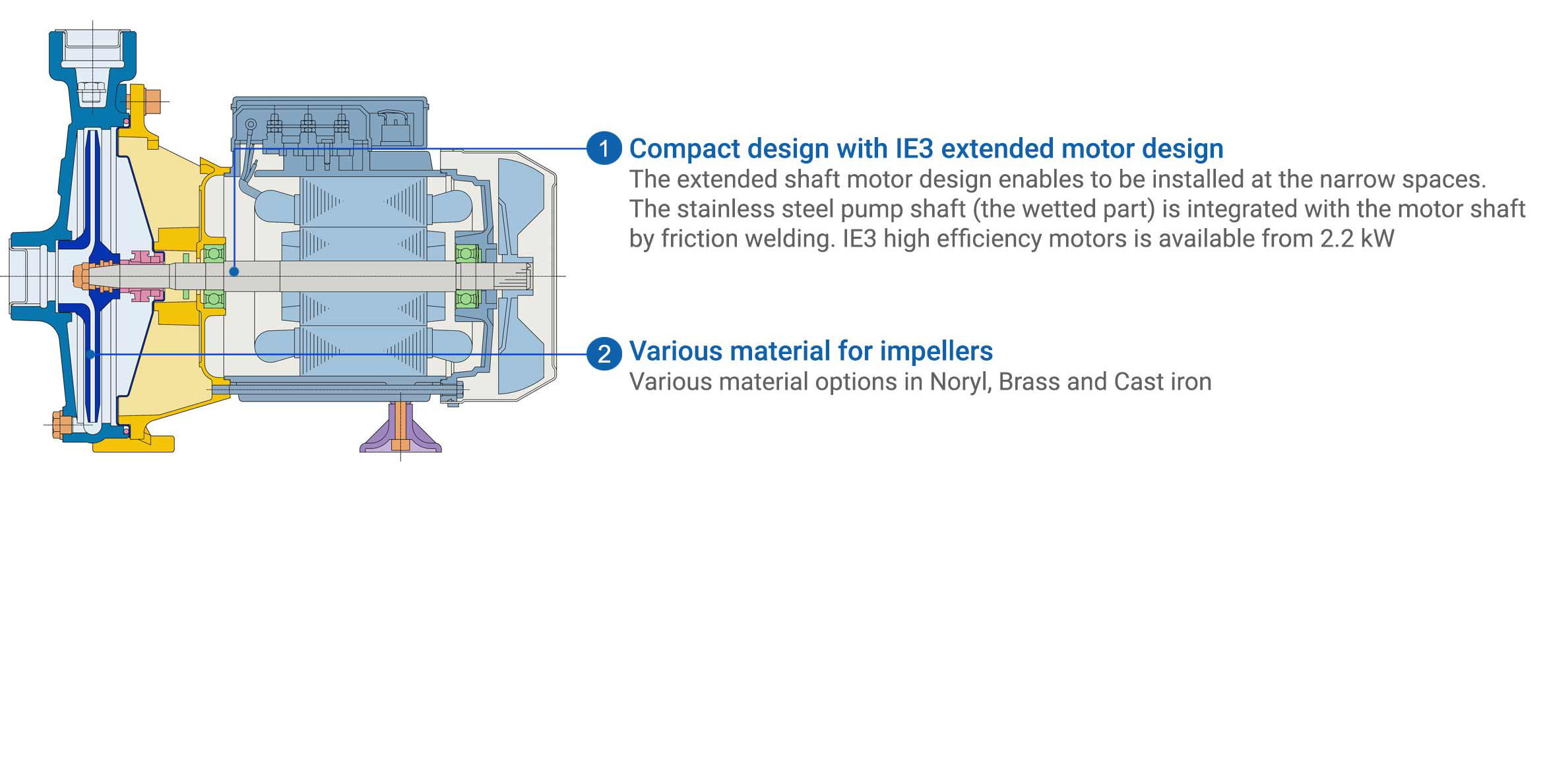

Key Features

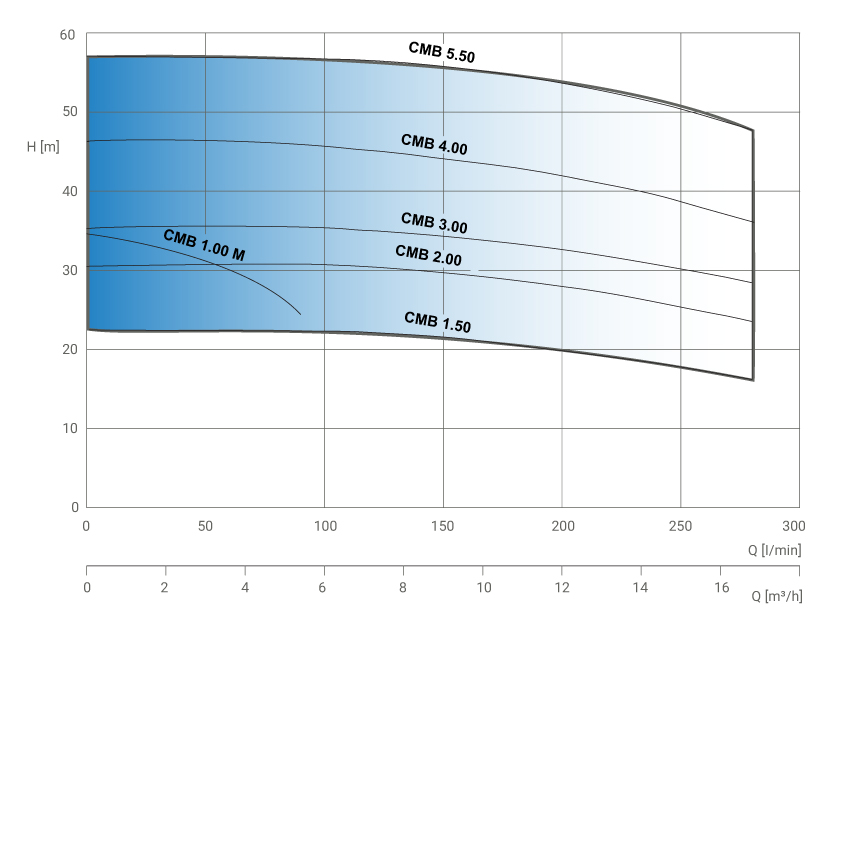

Selection Chart
50 Hz
Specifications
| Operating range | |
| Flow rate | up to 7.2 m3/h |
| Total head | up to 57 m |
| Max. working pressure | 6 bar |
| Max. liquid temperature | 40℃ for CMA 90℃ for CMB |
| Outlet size | G1” for CMA G1¼” for CMB |
| Pump material | |
| Casing | Cast Iron |
| Impeller | Noryl for CMA Cast Iron for CMB 1.50 Brass for CMB 2.00~5.50 |
| Shaft | AISI 416 for CMA AISI 303 for CMB |
| Mechanical seal | Carbon/Ceramic/NBR |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 0.75 to 1.5 kW (1 ph) 2.2 to 4.0 kW (3 ph) |
| Efficiency | IE2 (1 ph) IE3 (3 ph) |
| Voltage | 230 ±10% (1 ph) 230/400 ±10% (3 ph) |
| Poles | 2 |
| Protection degree | IP44 |
| Insulation class | Class F (class B for temperature rise) |
Applications
- Handling of non-aggressive liquids for civil and industrial use
- Washing systems and vehicle washing
- Domestic pressurization
- Small-scale irrigation
