Main Product Features
Stainless steel submersible pumps

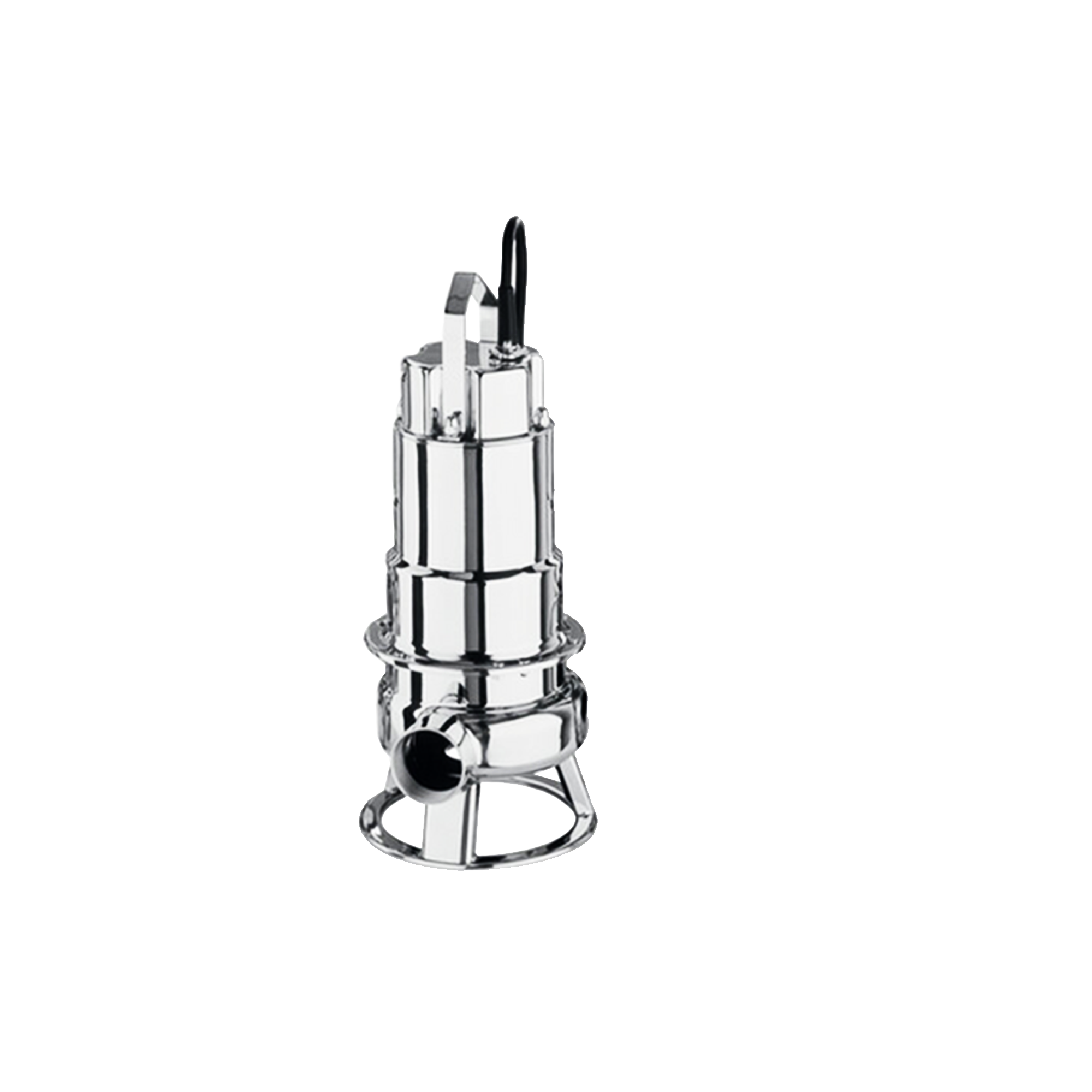

DW VOX
Submersible pumps in 304 Stainless steel construction with vortex impeller suitable for pumping storm water and effluent.
Max solid diameter : 50mm
Robust design
Versatility installation options
Solid handling
High corrosion resistance
Made in Italy |

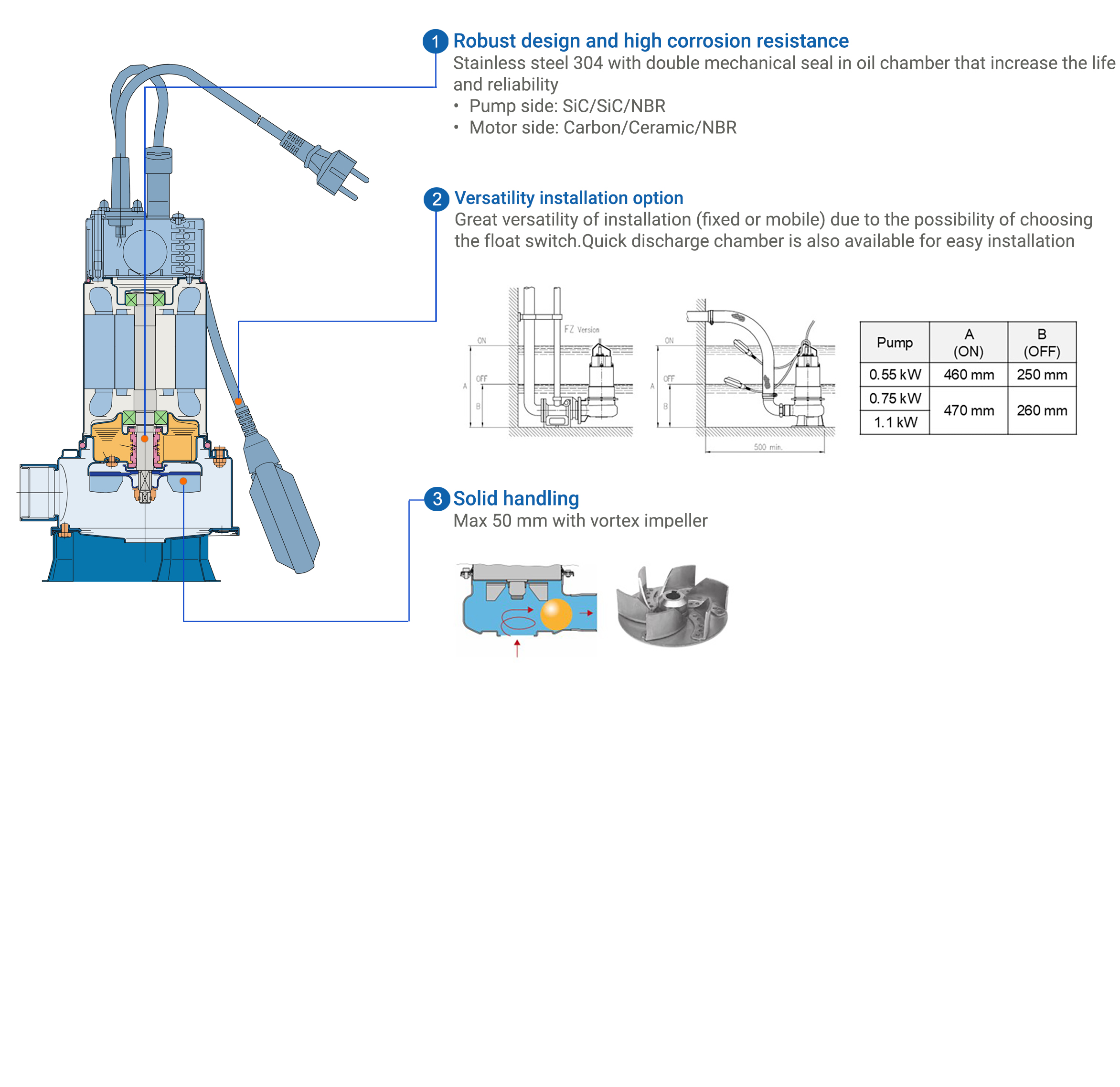

Key Features
Additional information
| Model |
DW VOX M 75 A – Single Phase, Automatic Pump ,DW VOX M 100 A – Single Phase, Automatic Pump ,DW VOX M 150 A – Single Phase, Automatic Pump ,DW VOX M 75 – Single Phase, Manual Pump ,DW VOX M 100 – Single Phase, Manual Pump ,DW VOX M 150 – Single Phase, Manual Pump ,DW VOX 75 – Three Phase, Manual Pump ,DW VOX 100 – Three Phase, Manual Pump ,DW VOX 150 – Three Phase, Manual Pump ,DW VOX 200 – Three Phase, Manual Pump ,Quick Discharge Connector (suits all DW VOX models) |
|---|

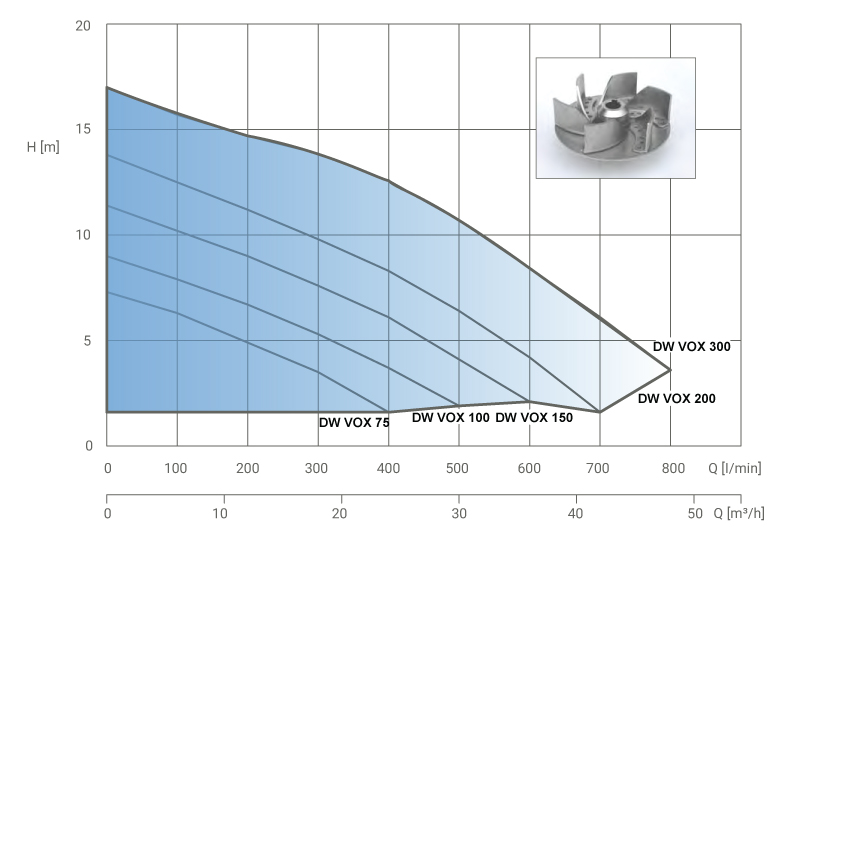

Selection Chart
50 HzÂ
Specifications
| Operating range | |
| Flow rate | up to 42 m3/h |
| Total head | up to 13.8 m |
| Max. liquid temperature | 40°C |
| Max solid size | 50 mm |
| Max immersion | 10 m |
| Outlet size | G2" |
| Pump material | |
| Casing | Stainless Steel 304 |
| Impeller | Stainless Steel 304 |
| Shaft | Stainless steel 303 (wetted parts) |
| Mechanical seal | SiC/SiC/NBR (Pump side) Carbon/Ceramic/NBR (Motor side) |
| Lubricating liquid | White mineral oil: Esso Marcol 152 |
| Motor | |
| Frequency | 50 Hz |
| Power rating | 0.55 to 1.1 kW (1 ph) 0.55 to 1.5 kW (3 ph) |
| No. of Poles | 2 |
| Voltage | 230V ±10% (1 ph) 400 ±10% (3 ph) |
| Protection degree | IPX8 |
| Insulation class | Class F |
| Switch | |
| Float switch | Option (1 ph) N/A (3 ph) |
Applications
- Evacuation of civil and industrial wastewater
- General Handling of liquids, including those with solid and/or filamentary substances in suspension
- Handling of dirty wastewater (sanitary services)
- Emptying of cesspits and seepage water
