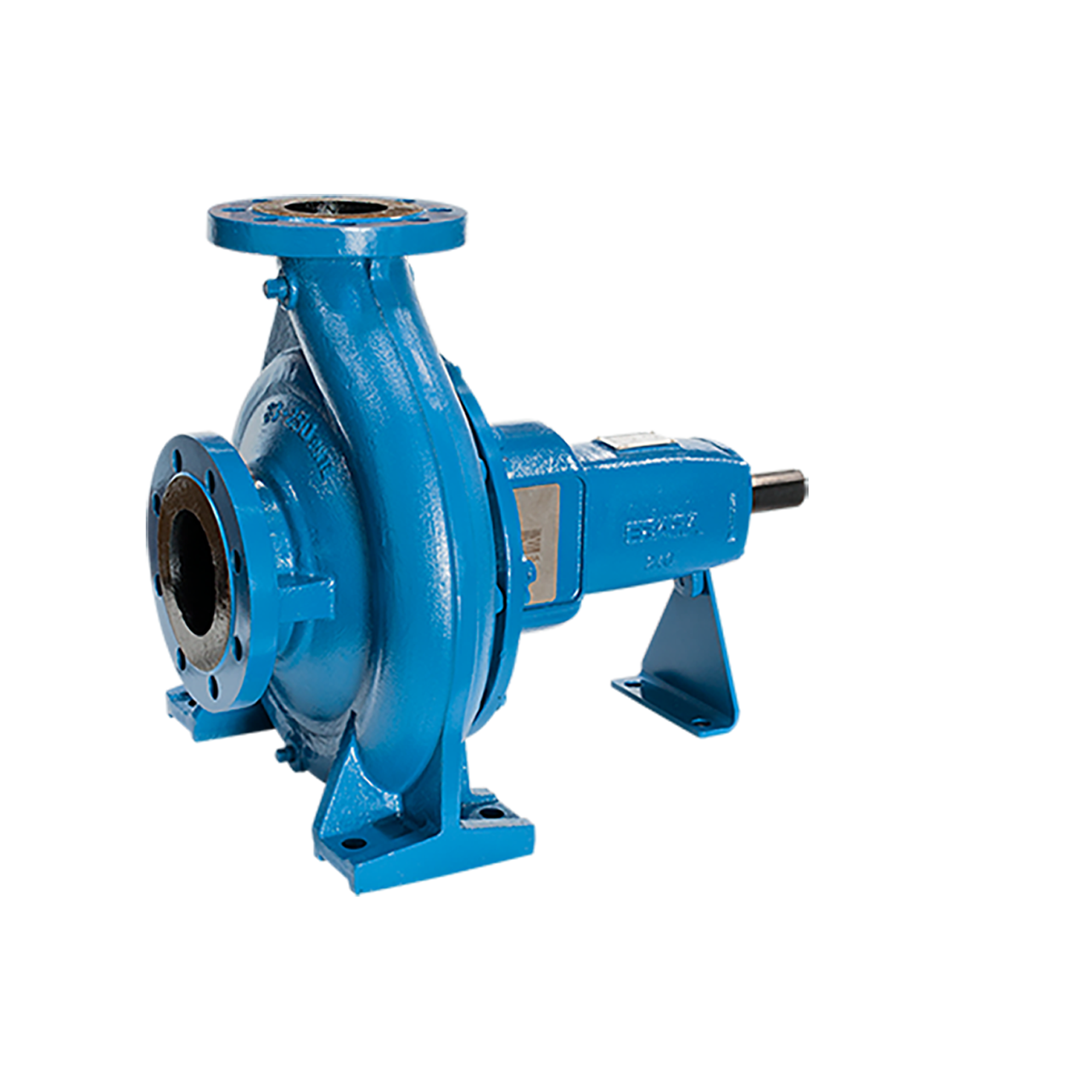

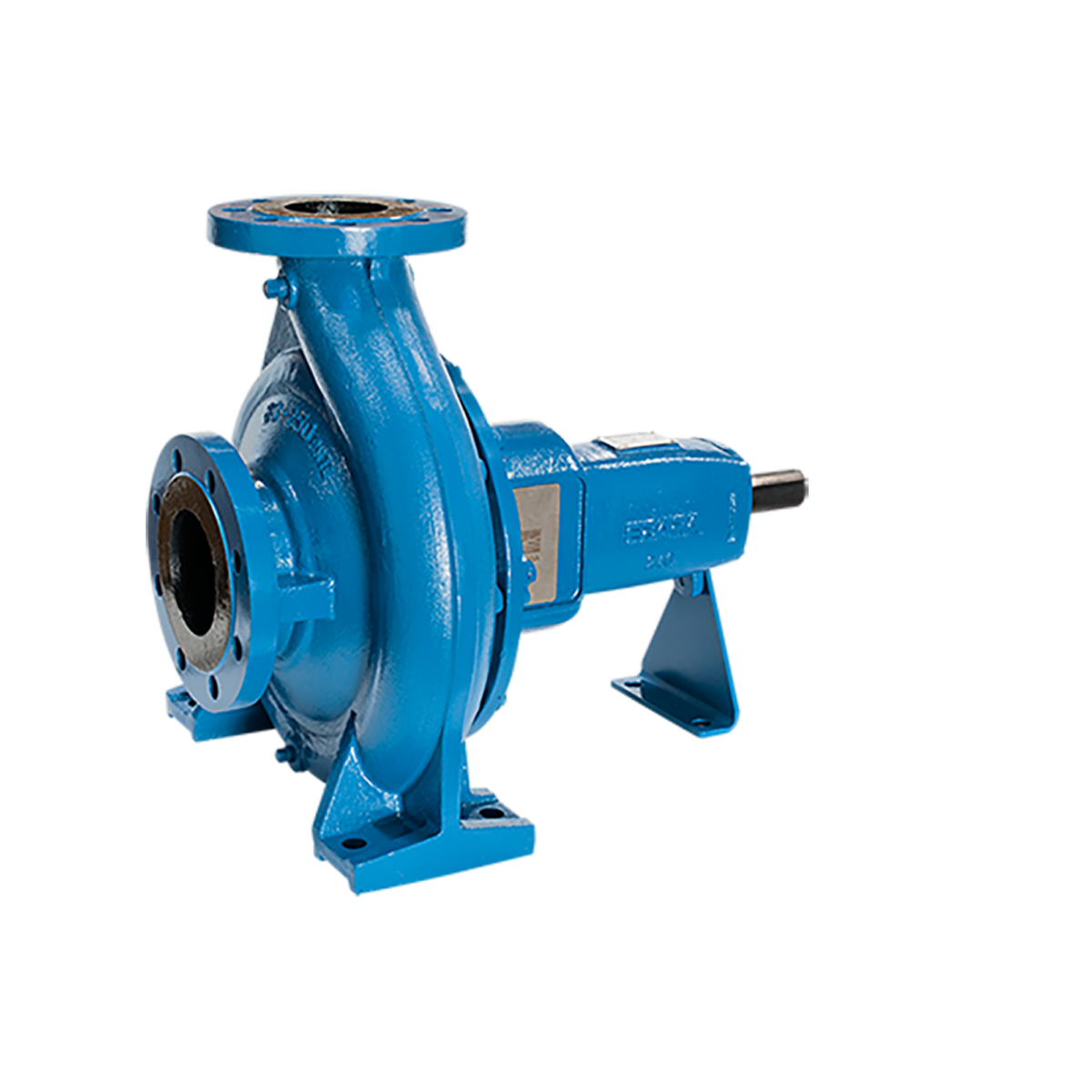

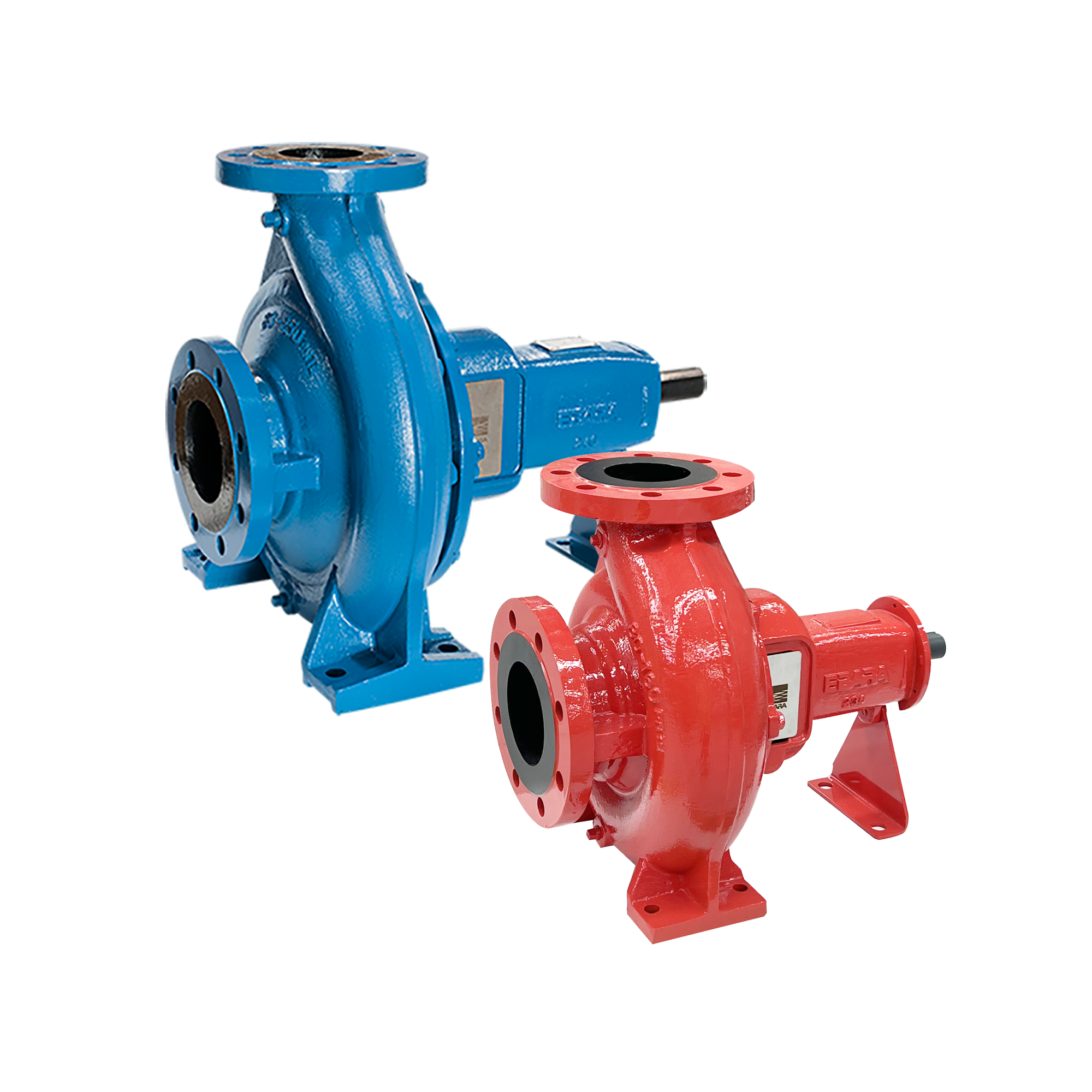

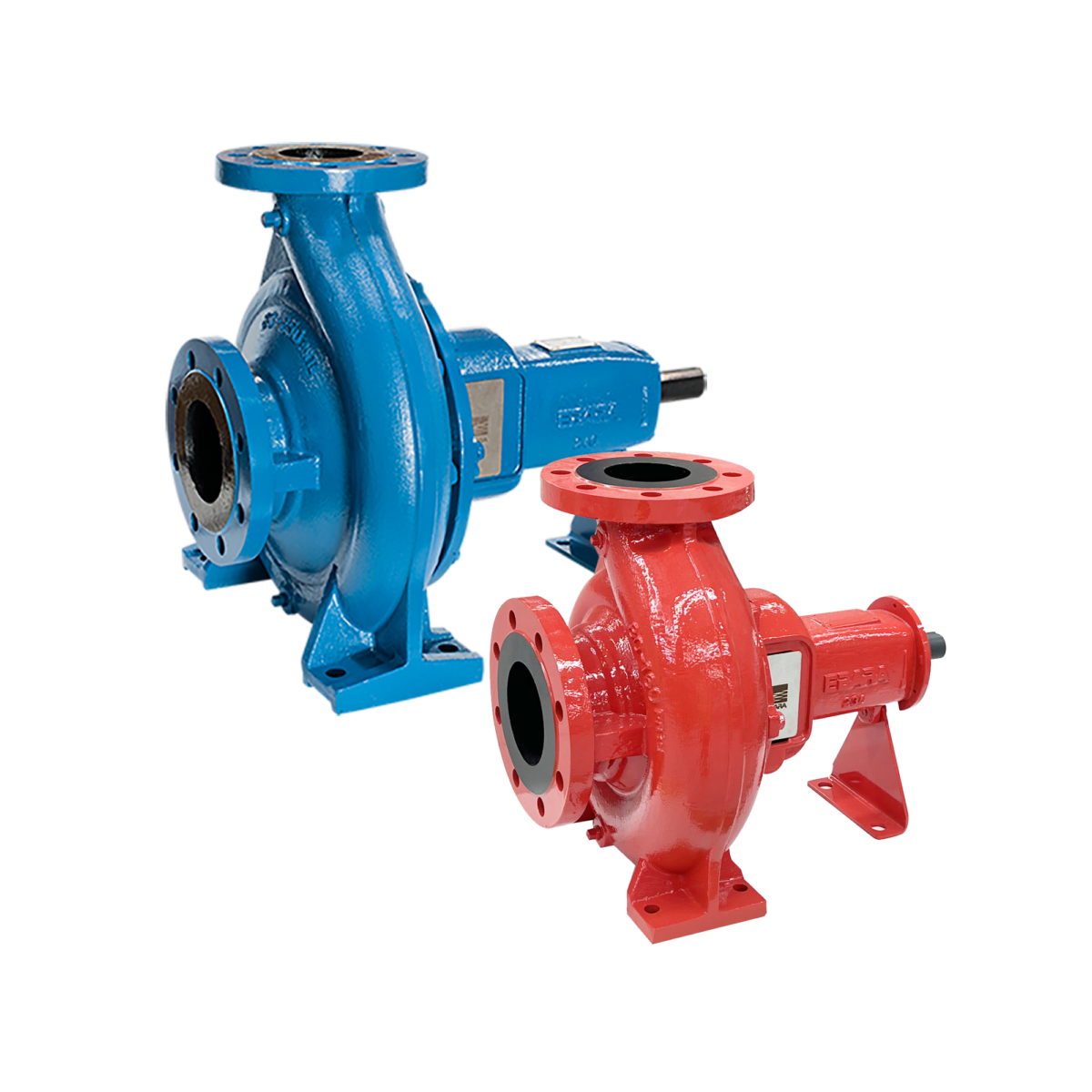

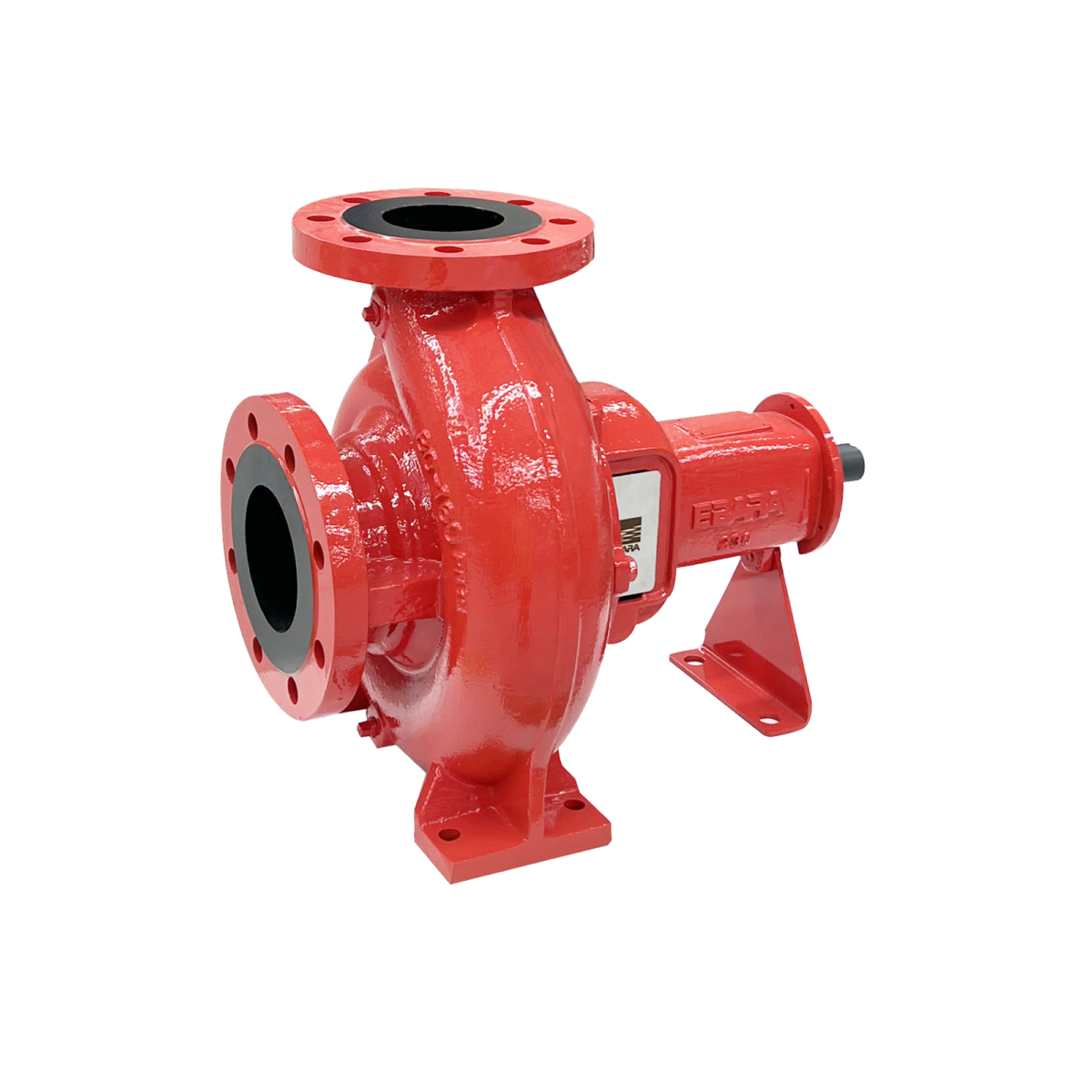

Cast iron end suction pumps

GS

GS is a family of GS Series for centrifugal pumps standardised to EN733 in cast iron. The pump construction is a long coupled type fitting with IEC standard motor.

Key Features

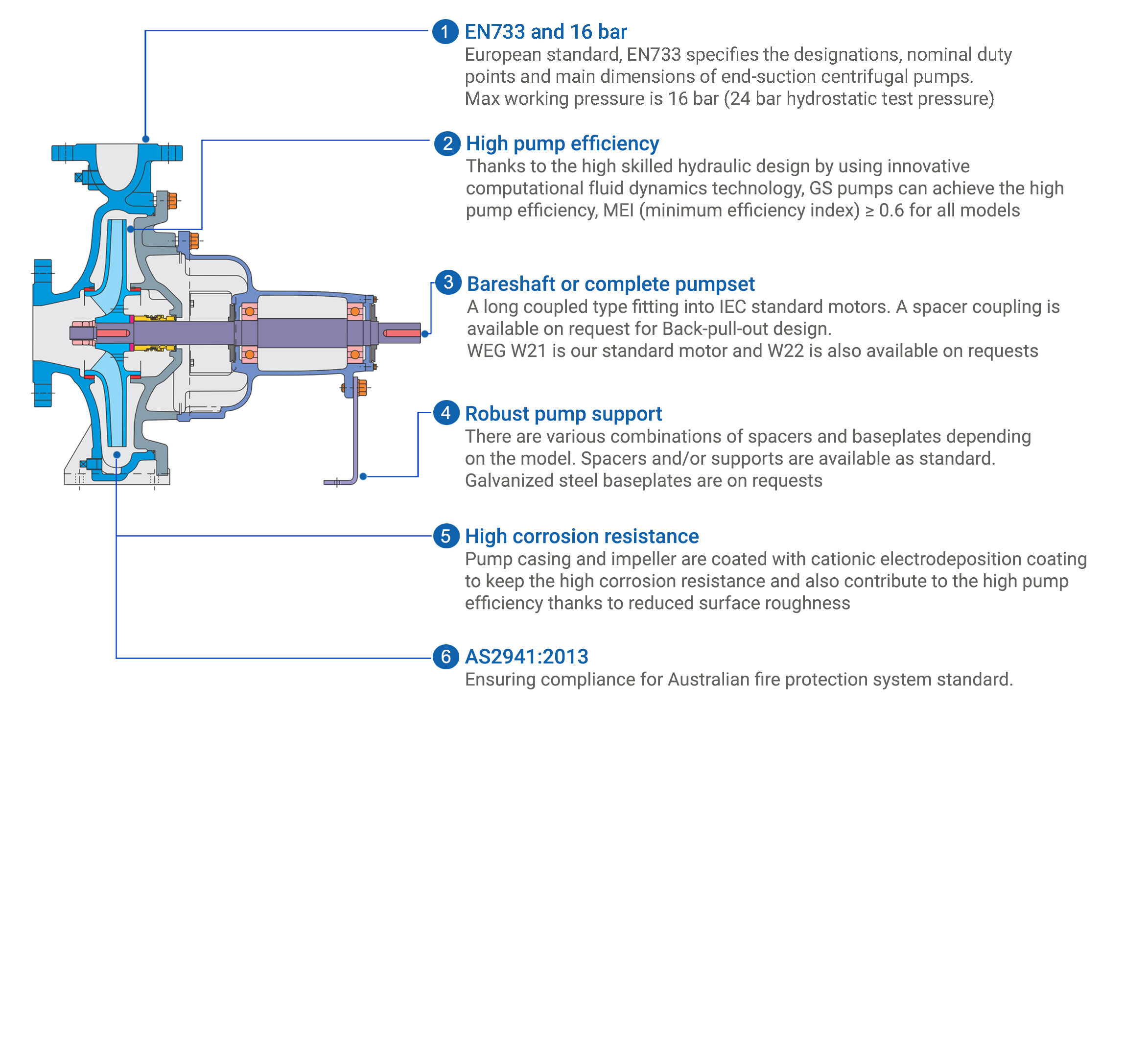

Main Product Features

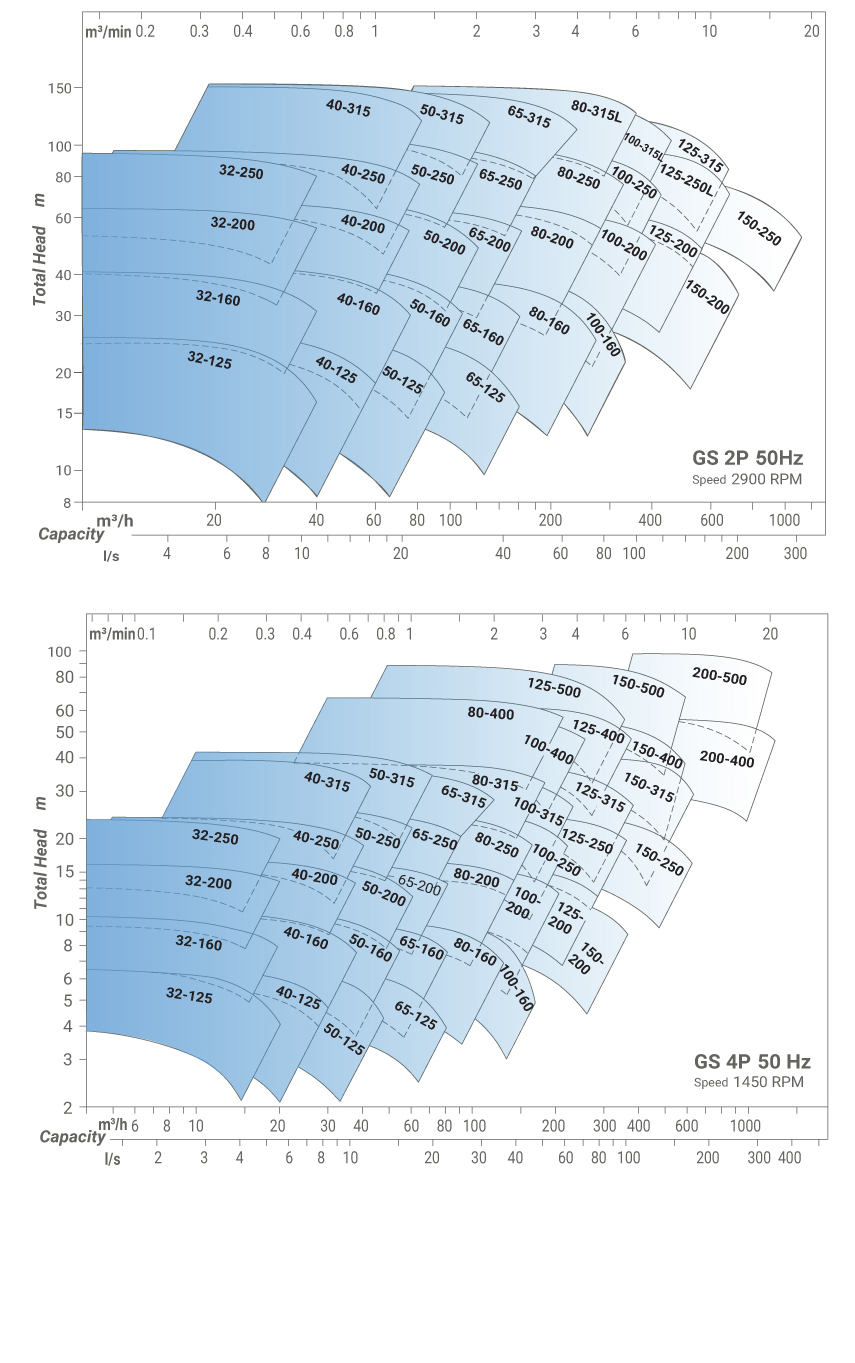

Selection Chart

      50 Hz

Specifications

Operating range
Flow rateup to 1,100 m³/h (2 pole)
up to 1300 m³/h (4 pole)
Total headup to 150 m (2 pole)
up to 95 m (4 pole)
Max. working pressure16 bar
Liquid temperature-10 to 120℃
Outlet size32 to 200 mm

Pump material
CasingCast iron (FC250)
ImpellerBronze (CAC 406)
Casing wearingBronze (CAC 406)
ShaftStainless steel 431 (SUS431 eq.)
Mechanical sealCarbon/SiC/EPDM

Applications

  • Industrial pressure boosting
  • Filtration and transfer in swimming pool
  • Handling of refrigerant for cooling
  • Industrial heating systems
  • Boiler feed and condensate systems

  • Cooling and air-conditioning systems
  • Water circulation in cooling towers
  • Fire fighting systems (AS2941 as bare pumps)

  • Filtration and transfer at waterworks
  • Pressure boosting in mains

  • Field irrigation
  • Sprinkler irrigation
  • Drip irrigation
