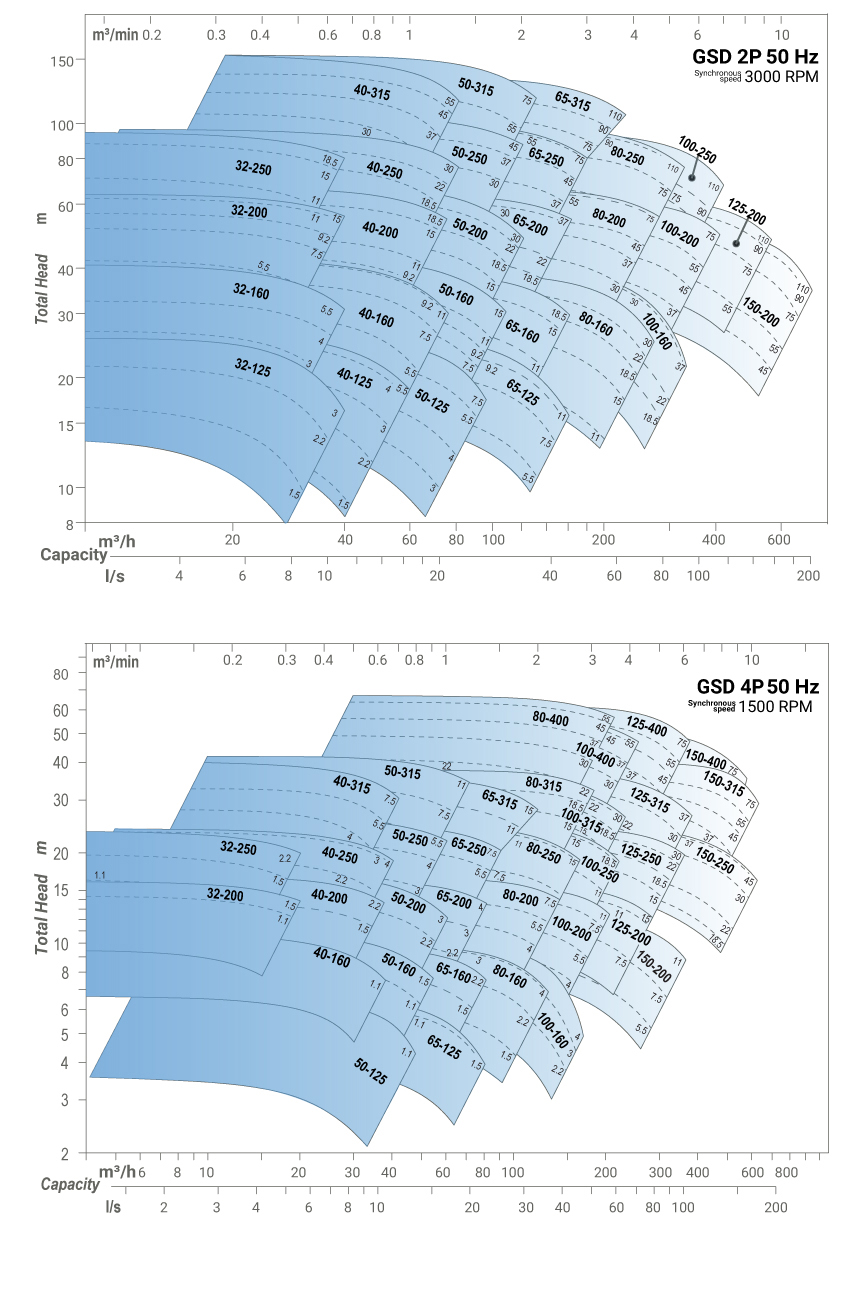

Operating range
Flow rate	up to 800 m³/h
Total head	up to 150 m
Max. working pressure	16 bar
Liquid temperature	-10 to 120℃
Outlet size	32 to 150 mm

Pump material
Casing	Cast iron (FC250)
Impeller	Bronze (CAC 406)
Casing wearing	Bronze (CAC 406)
Stub shaft	Stainless steel 431 (SUS431 eq.)
Mechanical seal	Carbon/SiC/EPDM

Motor
Brand	WEG W21 as standard WEG W22 as option
Frequency	50 Hz
Power rating	1.1 to 110 kW
Efficiency	IE3
Voltage	230/400 V (up to 3.0 kW) 400/690 V (4.0 kW and above)
Poles	2, 4
Protection degree	IP55
Insulation class	Class F (class B for temperature rise)
