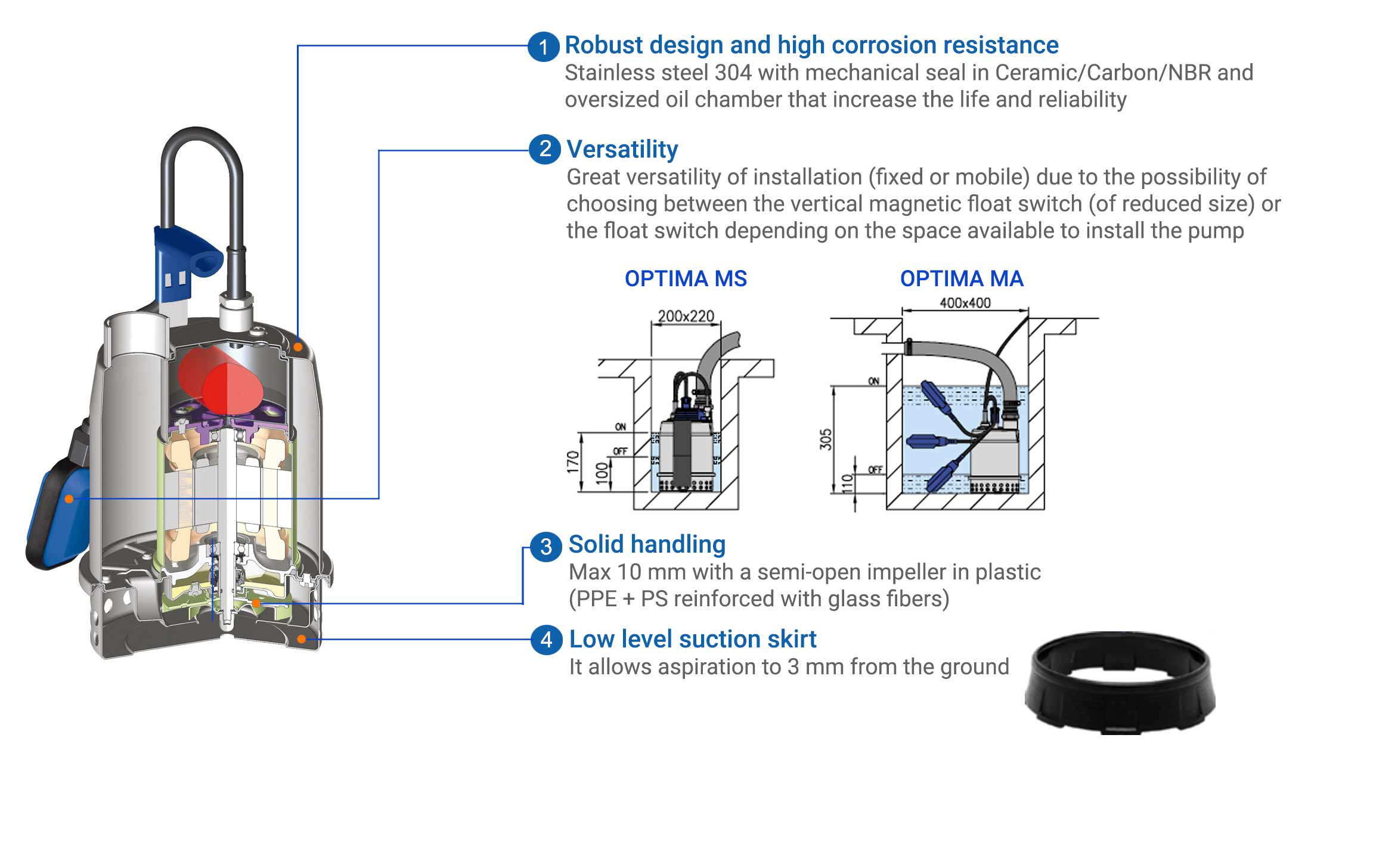

Key Features

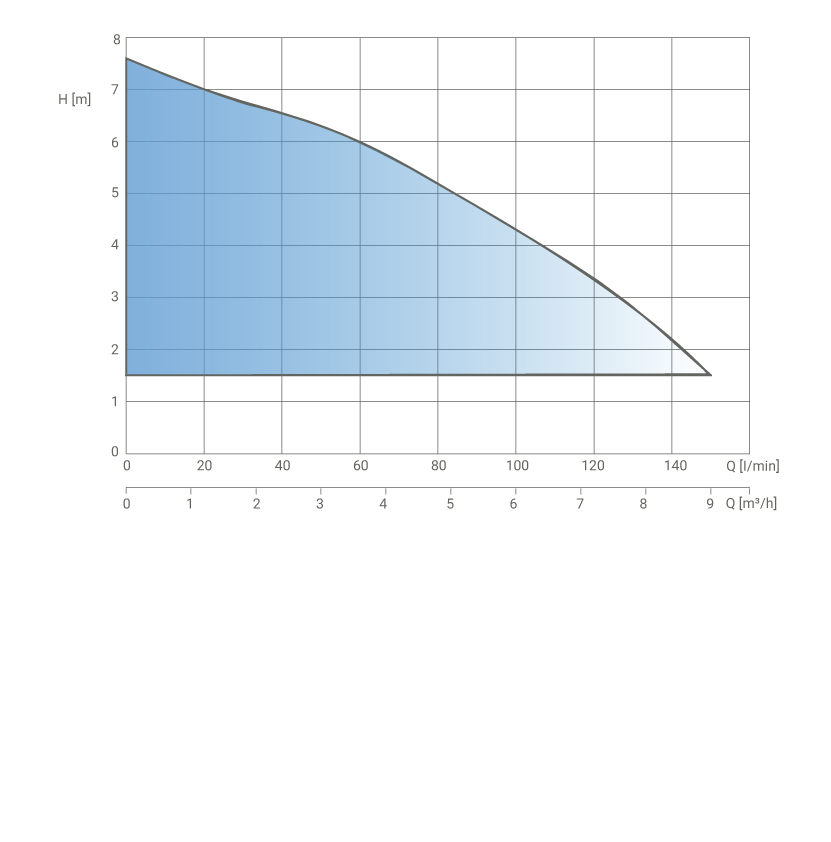

Selection Chart
50 Hz
Specifications
Operating range | |
Flow rate | up to 9 m3/h |
Total head | up to 7.6 m |
Max. liquid temperature | 50°C |
Max solid size | 10 mm |
Max immersion | 5 m |
Outlet size | G1¼” |
Pump material | |
Casing | Stainless Steel 304 |
Impeller | PPE + PS reinforced with glass fibres |
Shaft | Stainless steel 303 (wetted parts) |
Mechanical seal | Ceramic/Carbon/NBR |
Lubricating liquid | White mineral oil: Esso Marcol 152 |
Motor | |
Frequency | 50 Hz |
Phase | Single phase |
Power rating | 0.25 kW |
No. of Poles | 2 |
Voltage | 230 V ±10% (1 ph) |
Capacitor / Overload protection | Built in |
Protection degree | IP68 |
Insulation class | Class F |
Switch | |

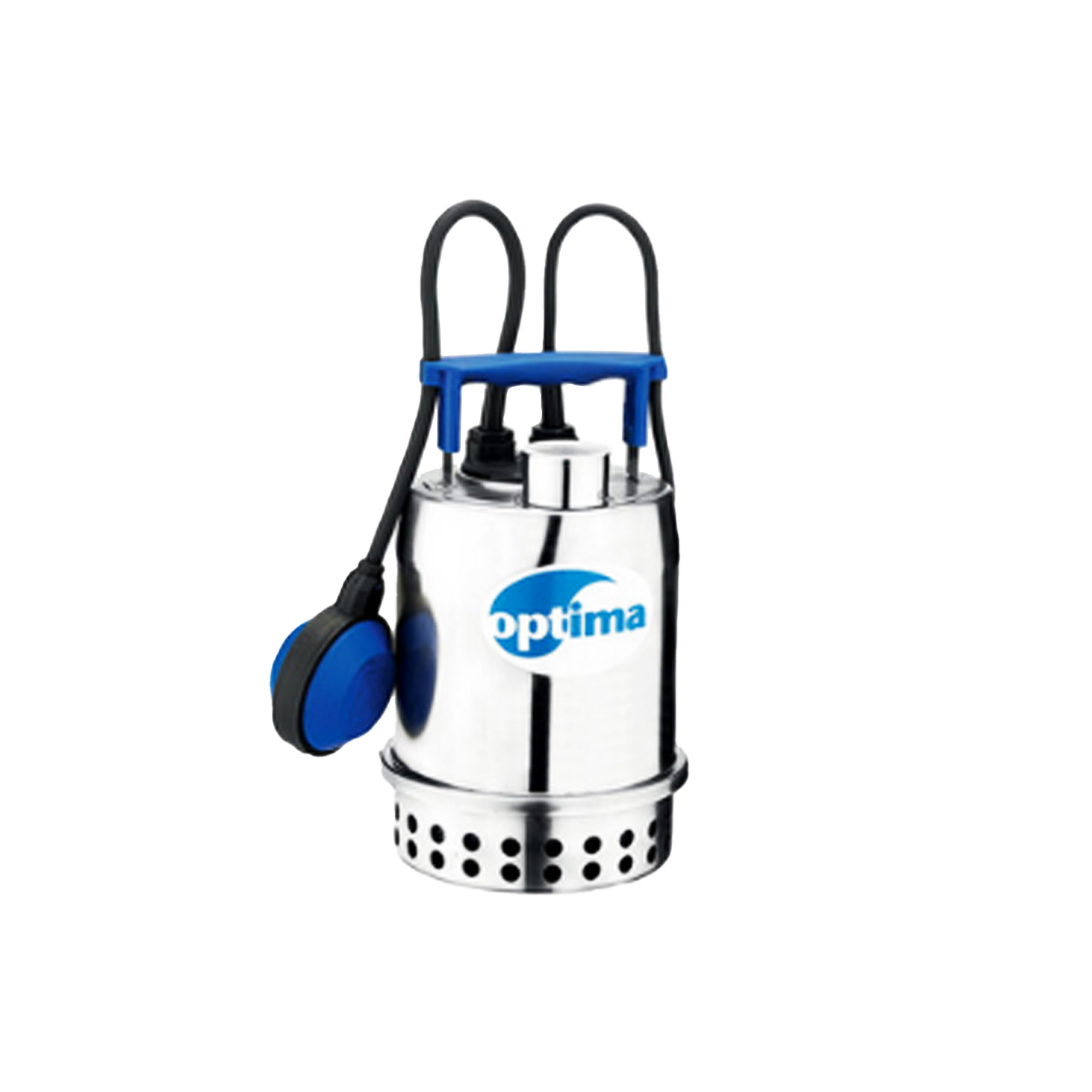

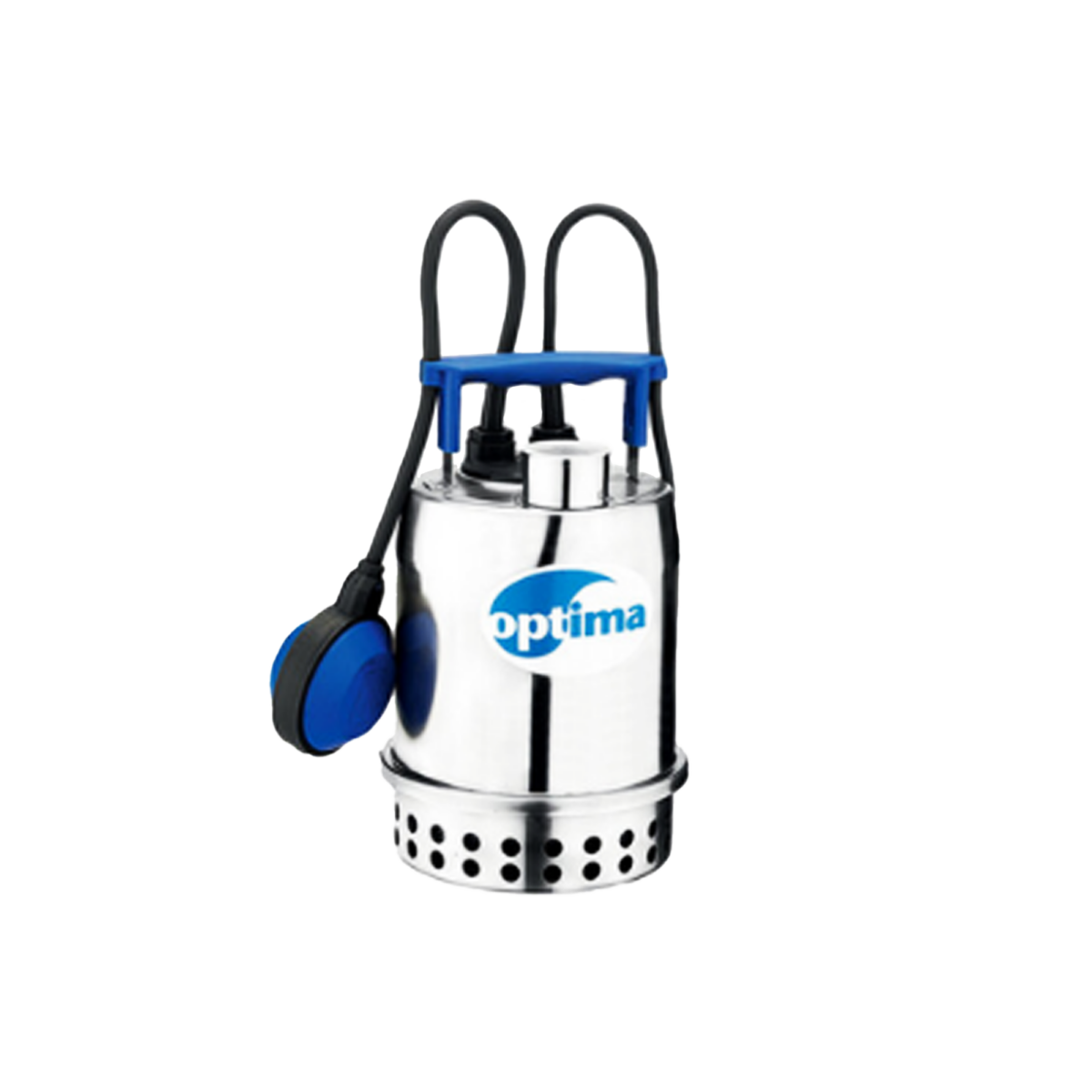

Float | MA version |

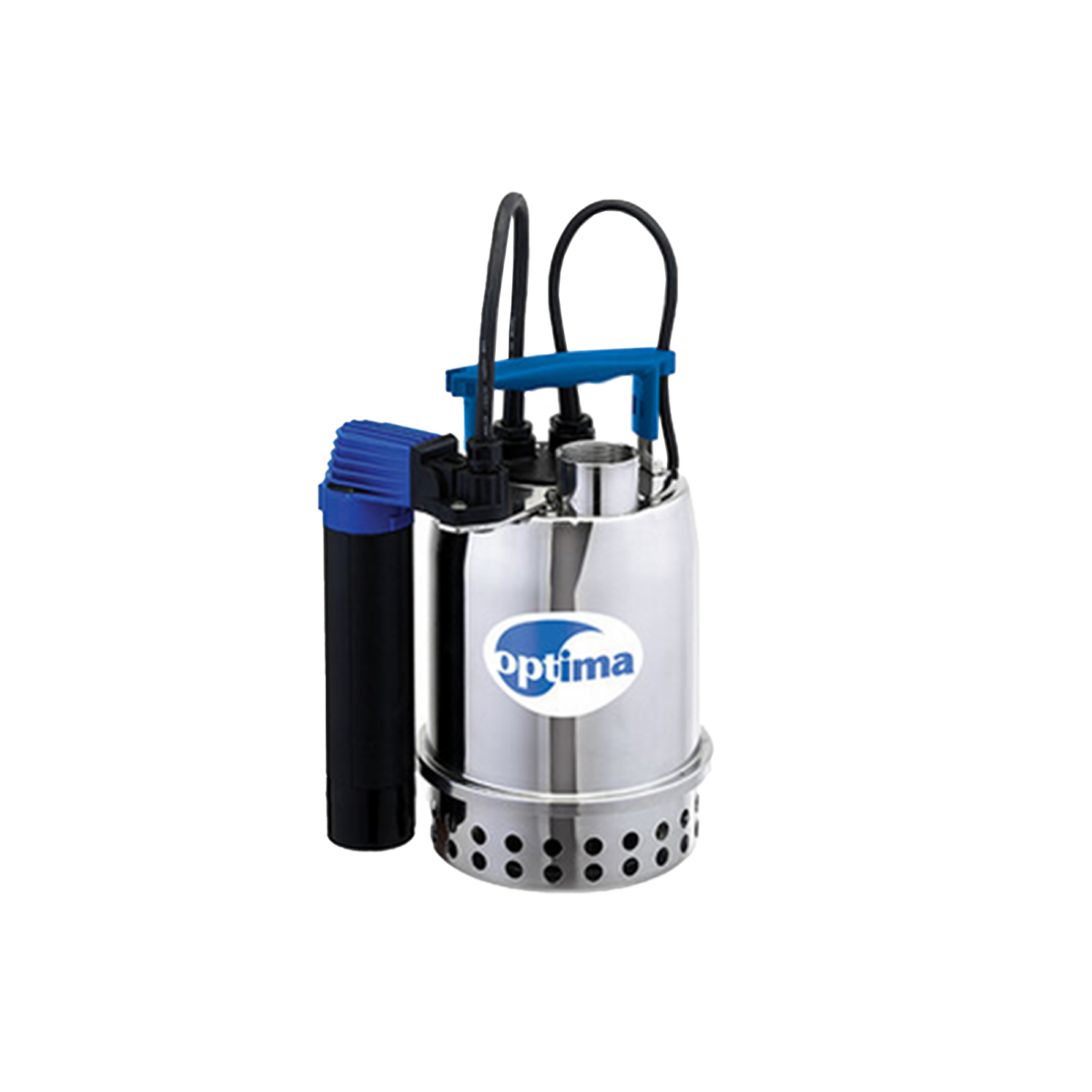

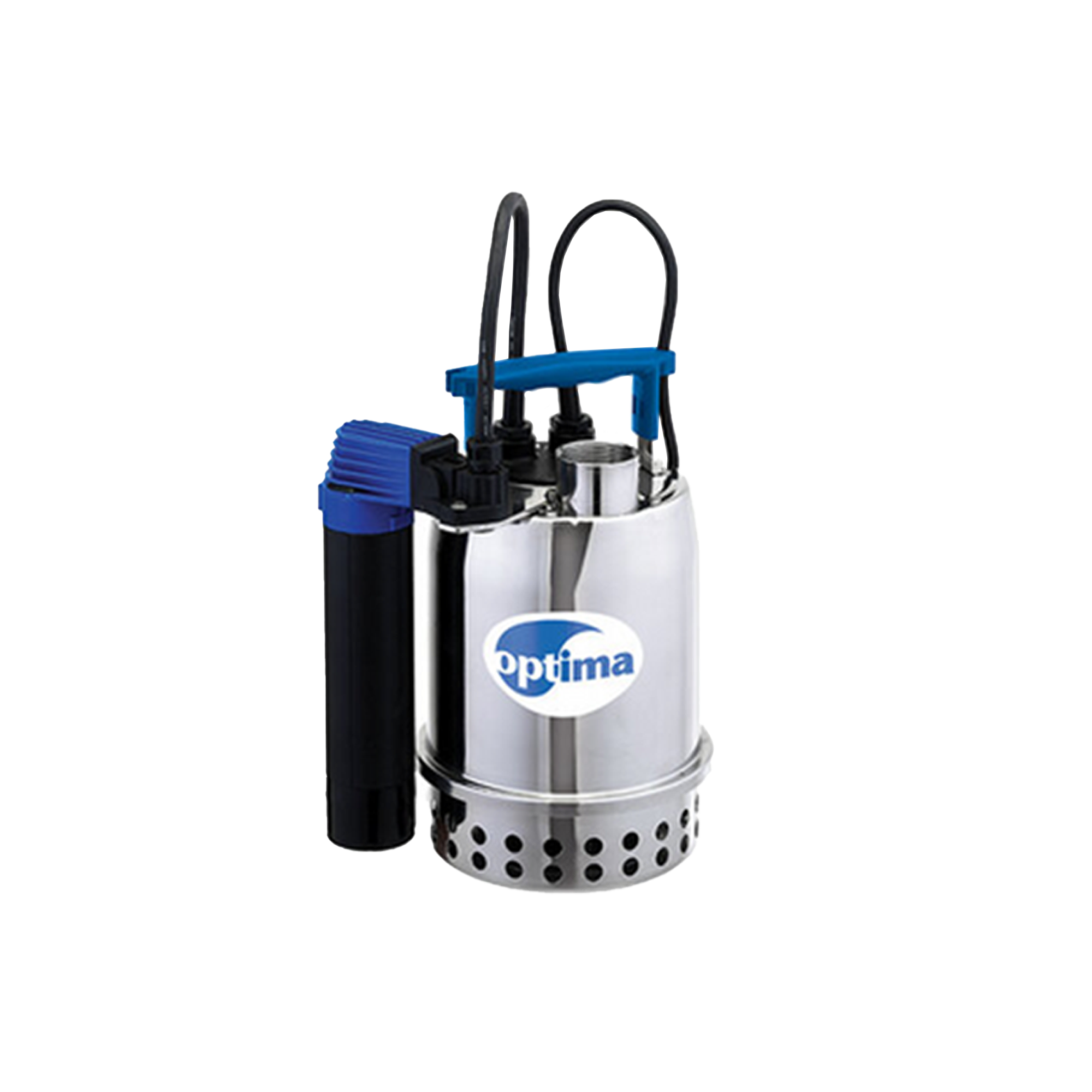

Magnetic | MS version |
Applications
- Emptying of wells, cellars, garages or basements, tanks or reservoirs
- Use for irrigating gardens and vegetable plots and for supplying water to classic garden fountains
