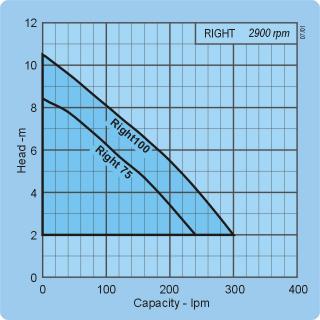

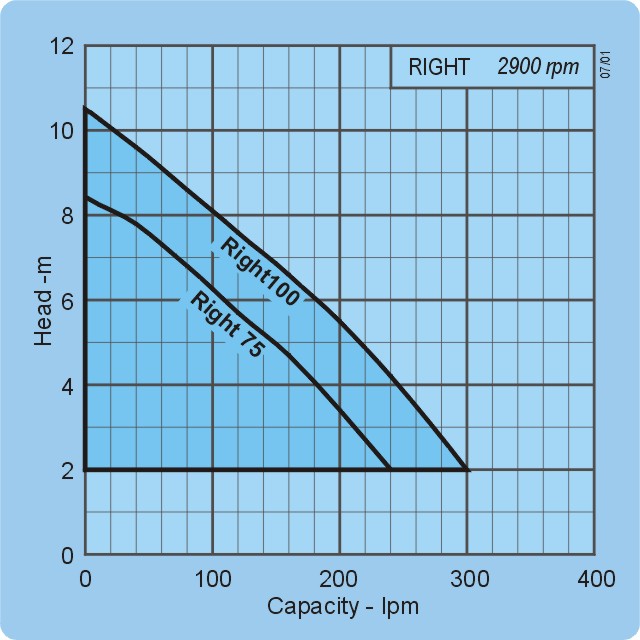

Operating range
Flow rate	up to 18 m3/h
Total head	up to 10.5 m
Max. liquid temperature	50°C
Max solid size	35 mm
Max immersion	10 m
Outlet size	G1½"

Pump material
Casing	Stainless Steel 304
Impeller	Stainless Steel 304
Shaft	Stainless steel 303 (wetted parts)
Mechanical seal	SiC/SiC/NBR (Pump side) Carbon/Ceramic/NBR (Motor side)
Lubricating liquid	White mineral oil: Esso Marcol 152

Motor
Frequency	50 Hz
Power rating	0.55 to 0.75 kW (1 ph) 0.55 to 0.75 kW (3 ph)
No. of Poles	2
Voltage	230V ±10% (1 ph) 400 ±10% (3 ph)
Protection degree	IPX8
Insulation class	Class F

Switch
Float switch	Optional (1 ph) N/A (3 ph)
